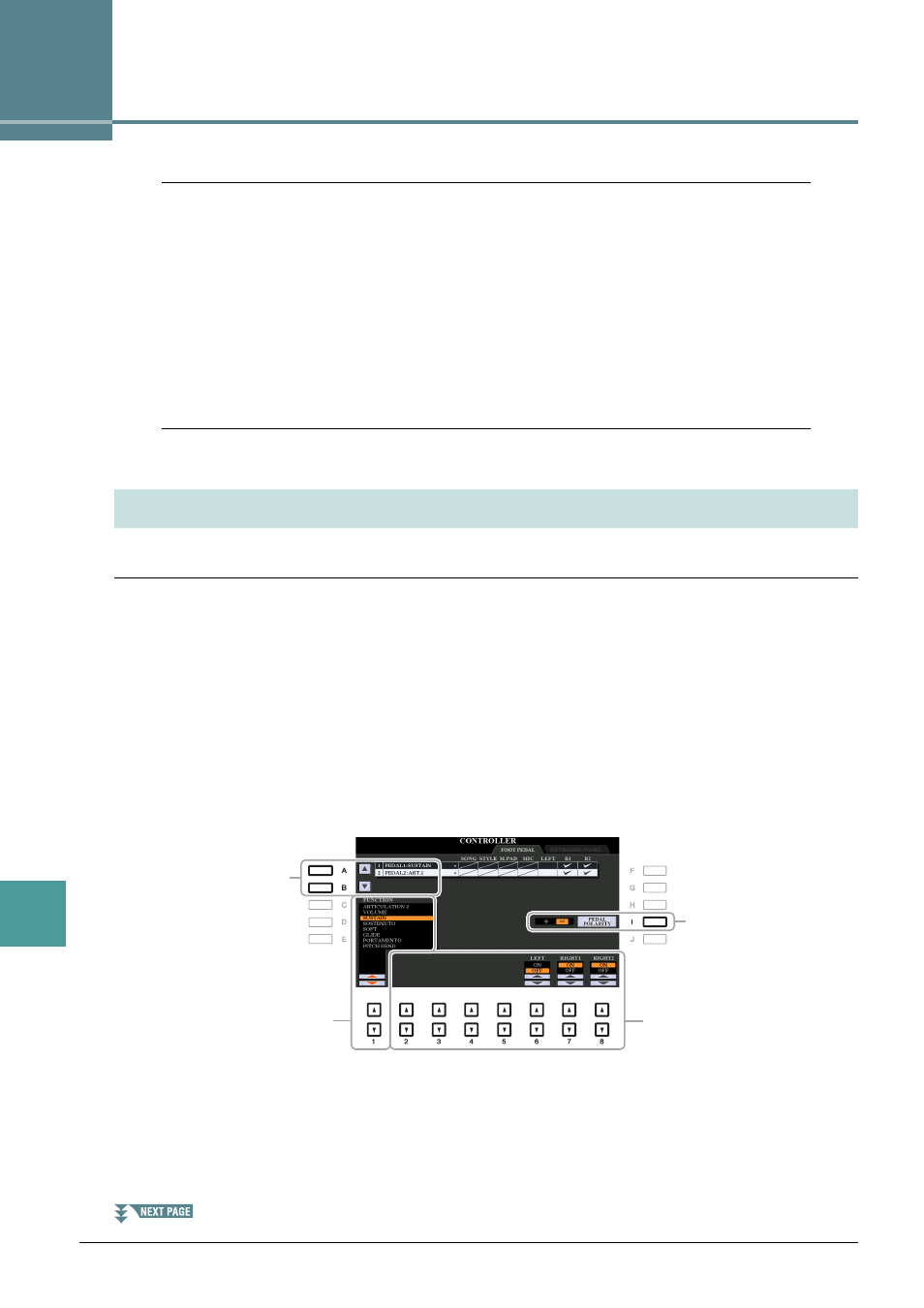

114 PSR-S970/S770 Reference Manual
Connections
Connections
Contents
Footswitch/Foot Controller Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
• Assigning a Specific Function to Each Pedal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
MIDI Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
• MIDI System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
• MIDI Transmit Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
• MIDI Receive Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
• Bass Note Settings for Style Playback via MIDI Receive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
• Chord Type Settings for Style Playback via MIDI Receive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Connecting with an iPhone/iPad via Wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
• Infrastructure Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
• Access Point Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Assigning a Specific Function to Each Pedal
The functions of the foot pedals connected to the FOOT PEDAL [1]/[2] jacks can be changed individually
from the default settings (sustain, etc.)—for example, letting you use the footswitch to start/stop Style
playback, or use the foot controller to produce pitch bends.
NOTE For information on how to connect a foot pedal or what kinds of pedals can be connected, refer to the Owner’s Manual, chapter 10.
1
Call up the operation display.
[FUNCTION]  TAB [E] MENU 1  [D] CONTROLLER  TAB [E] FOOT PEDAL
2
Use the [A]/[B] buttons to select one of the two foot pedals to which the function is to
be assigned.
On the display, the numbers 1 and 2 correspond to the FOOT PEDAL jacks [1] and [2] respectively.
3
Use the [1
] buttons to select the function to be assigned to the pedal specified in
step 2.
For information on available functions, see pages 115–117 .
NOTE You can also assign other functions to the pedal—Punch in/out of Song ( page 66 ) and Registration Sequence ( page 85 ). If you assign multiple functions
to the pedal, the priority is: Punch in/out of Song
 Registration Sequence  Functions assigned here.
Footswitch/Foot Controller Settings
2
3
5
4
