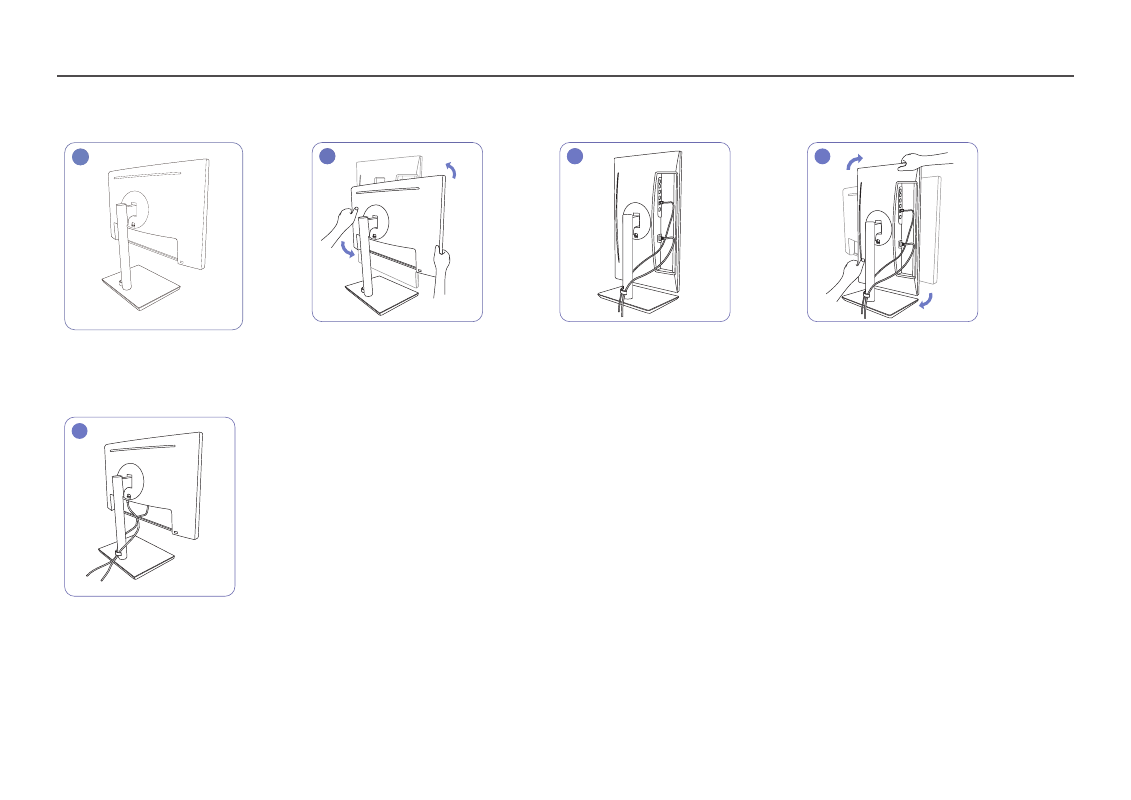

Tidying Up the Connected Cables (S24H650FD*)
1
2
3
4
Stand assembly is complete.
Rotate the machine to the highest vertical
position.
Connect the cables to their correct ports, and
then arrange each of the two cables through
either side of the COVER-STAND CABLE, as
shown in the figure.
Rotate the machine to the horizontal position.
5
Assembly is complete.
