SE60x Earset Microphone

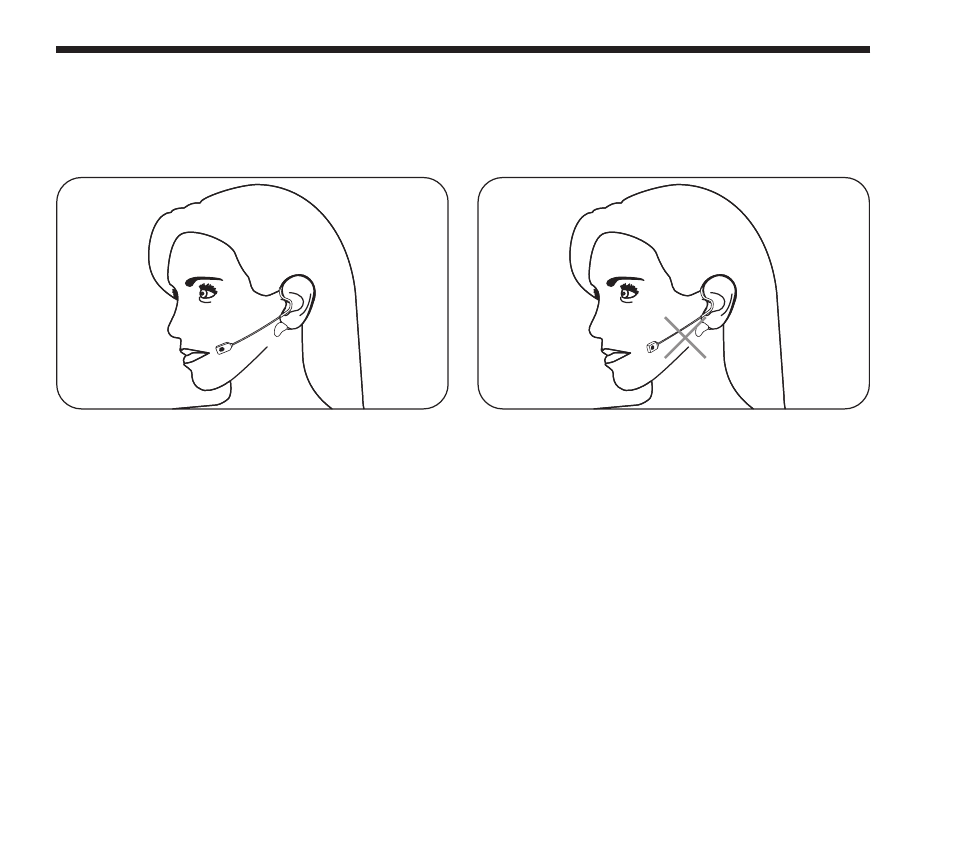

Mic Positioning
Position the SE60x microphone element about
0.25” – 1” behind the corner of your mouth.
Since the SE60x is a unidirectional capsule,
the low frequency characteristics will change
depending on the position of the microphone
from the sound source. To avoid breath noise
and p-pops, do not place the microphone
directly in front of your mouth.
If the microphone is too far away from your
mouth you will need to increase the gain and
reduce isolation.
To minimize additional noise, do not locate the
microphone tight against your cheek.
The SE60x microphone is designed to be worn on the left ear. For optimal placement please follow
the directions below:
