3. Camera Operations: Operations on the Home Screen of the Sub Display 40

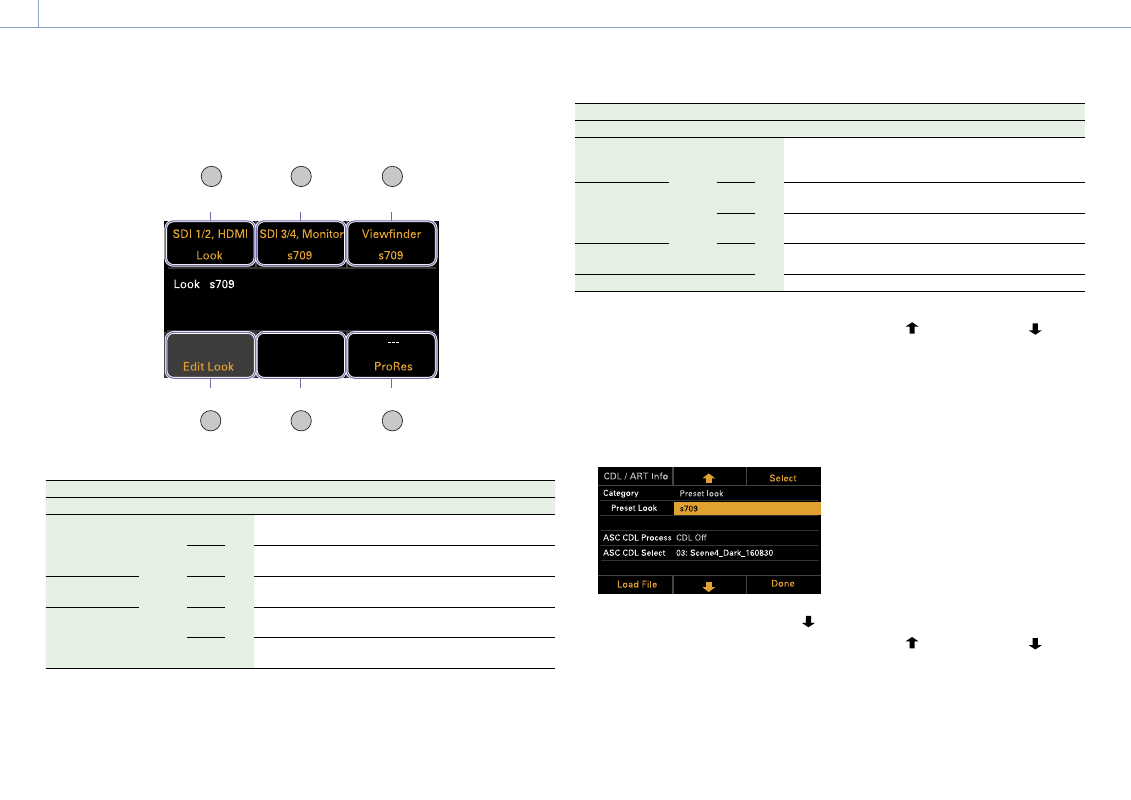

LUT selection screen display items
The items displayed will vary depending on the Output Format setting.
1 2 3
5 4 6
ITEM key 5 ITEM key 4 ITEM key 6
ITEM key 3 ITEM key 2 ITEM key 1
Output Format Display indication
SDI1/2 SDI3/4 Monitor HDMI VF ITEM key 1 ITEM key 2 ITEM key 3 ITEM key 5 ITEM key 6
4K/QFHD
12G/6G FHD FHD 4K/
QFHD FHD SDI 1/2,
HDMI
SDI 3/4,
Monitor Viewfinder Blank ProRes 1)
FHD SDI 1/2 SDI 3/4,
Moni, HDMI Viewfinder Blank ProRes 1)
4K/QFHD Square
Quad FHD SDI 1/2/3/4 Blank Viewfinder Monitor,
HDMI ProRes 1)
4K/QFHD 2SI Quad 4K/
QFHD SDI 1-4,
HDMI Blank Viewfinder Monitor ProRes 1)
FHD SDI 1/2/3/4 Blank Viewfinder Monitor,
HDMI ProRes 1)
Output Format Display indication
SDI1/2 SDI3/4 Monitor HDMI VF ITEM key 1 ITEM key 2 ITEM key 3 ITEM key 5 ITEM key 6
4K/QFHD
Square
Dual FHD FHD FHD FHD SDI 1/2 SDI 3/4,
Moni, HDMI Viewfinder Blank ProRes 1)
4K/QFHD
2SI Dual FHD 4K/
QFHD SDI 1/2,
HDMI SDI 3/4,
Monitor Viewfinder Blank ProRes 1)
FHD SDI 1/2 SDI 3/4,
Moni, HDMI Viewfinder Blank ProRes 1)
2K/FHD FHD FHD SDI 1/2 SDI 3/4 Viewfinder Monitor,
HDMI ProRes 1)
FHD FHD – SD SDI 1/2 SDI 3/4 Viewfinder Monitor HDMI
1) Blank when Project > Basic Setting > Recording Format is set to X-OCN format in the full menu
Changing Preset Look
You can set a LUT when Look is selected on
the LUT selection screen using the Edit Look
button (ITEM key 4) on the LUT selection
screen.
1
Press the Edit Look button (ITEM key 4) on
the LUT selection screen.
The Look selection screen appears.
2
Select Category > Preset Look, use the
button (ITEM key 5) or MENU dial to move
the cursor to Preset Look, and press the
Select button (ITEM key 3).
The items that can be selected are
displayed.
3
Use the button (ITEM key 2), button
(ITEM key 5), or MENU dial to change the
setting.
4
Press the MENU dial or Set button (ITEM
key 3) to apply the setting.
Changing the LUT category
You can change the target category for LUT
operations to User 3D LUT, ART, ACES, or Preset
Look (page 66).
1
Press the Edit Look button (ITEM key 4) on
the LUT selection screen.
The Look selection screen appears.
2
Move the cursor to Category, and press
the MENU dial or the Select button (ITEM
key 3).
3
Use the button (ITEM key 2), button
(ITEM key 5), or MENU dial to select a
category (User 3D LUT, ART, ACES, or
Preset Look).
