Instruction Manual
1

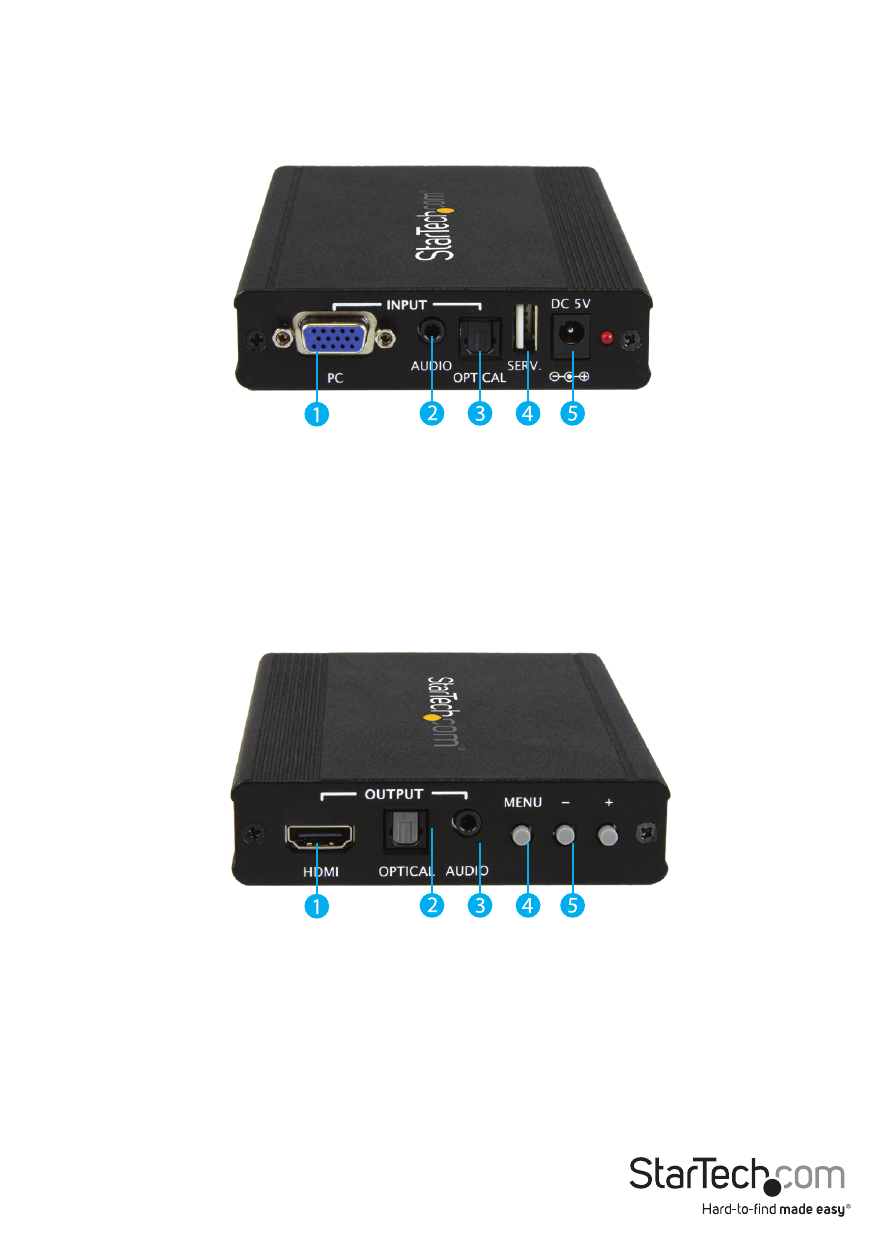

Product Diagram
Front View
Rear View
1. VGA input
2. 3.5mm analog audio input
3. SPDIF digital optical audio input
4. USB service port (only required for firmware updates)
5. Power adapter port
1. HDMI output
2. SPDIF digital optical audio output
3. 3.5mm analog audio output
4. On screen display menu button
5. On screen display operation buttons
