English

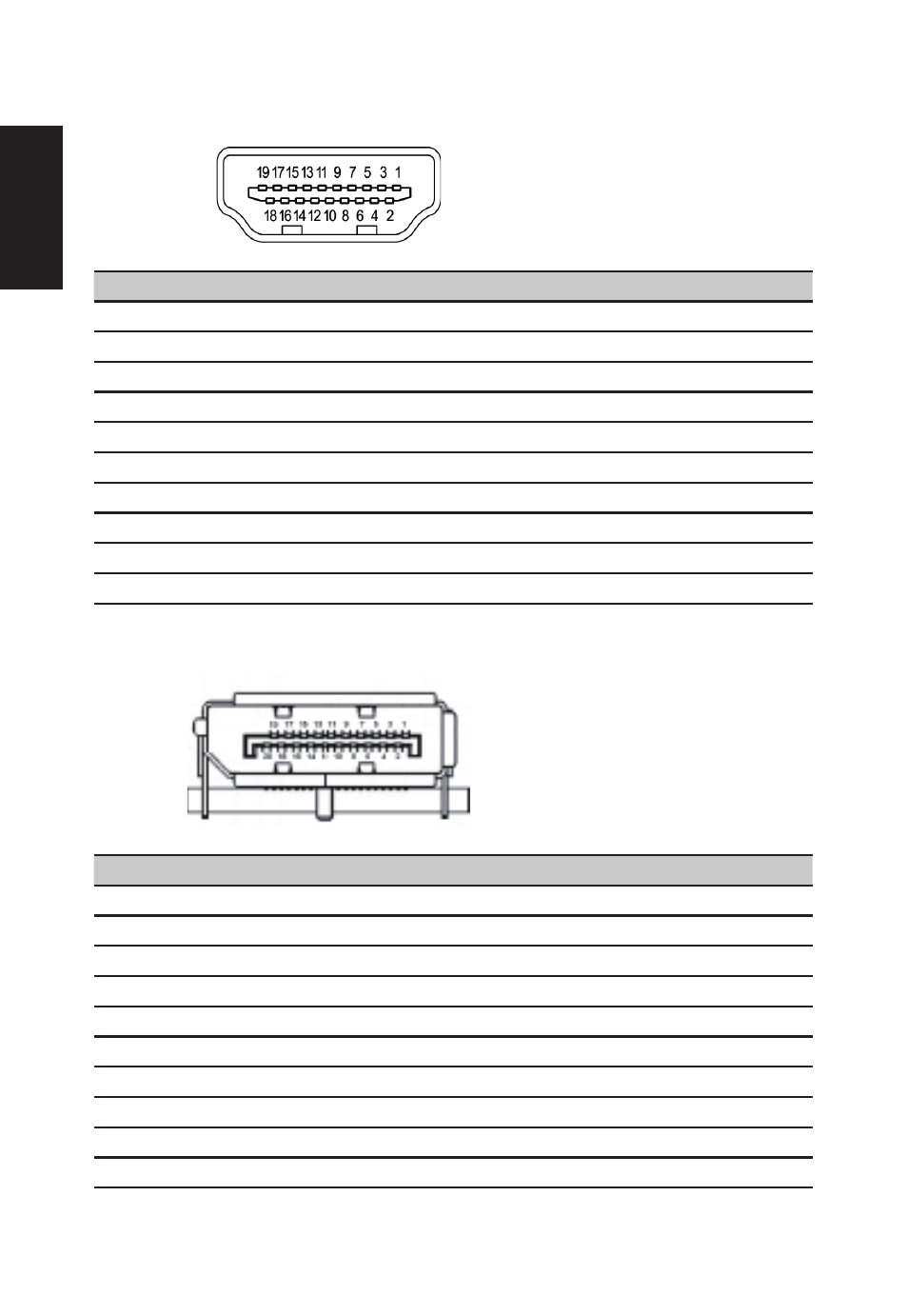

19-pin color display signal cable
*
PIN No. Description PIN No. Description
1 TMDS Data2+ 2 TMDS Data2 Shield
3 TMDS Data2- 4 TMDS Data1+
5 TMDS Data1 Shield 6 TMDS Data1-
7 TMDS Data0+ 8 TMDS Data0 Shield
9 TMDS Data0- 10 TMDS Clock+
11 TMDS Clock Shield 12 TMDS Clock-
13 CEC 14 Reserved (N.C. on device)
15 SCL 16 SDA
17 DDC/CEC Ground 18 +5V Power
19 Hot Plug Detect
20-pin color display signal cable
*
PIN No. Description PIN No. Description
1 Lane0(p) 2 GND
3 Lane0(n) 4 Lane1(p)
5 GND 6 Lane1(n)
7 Lane2(p) 8 GND
9 Lane3(n 10 Lane3(p)
11 GND 12 Lane3(n)
13 Config1 14 Config2
15 AUX_CH (n) 16 GND
17 AUX_CH (p) 18 Hot Plug Detect
19 DP Power_Return 20 DP Power
* only for certain models
