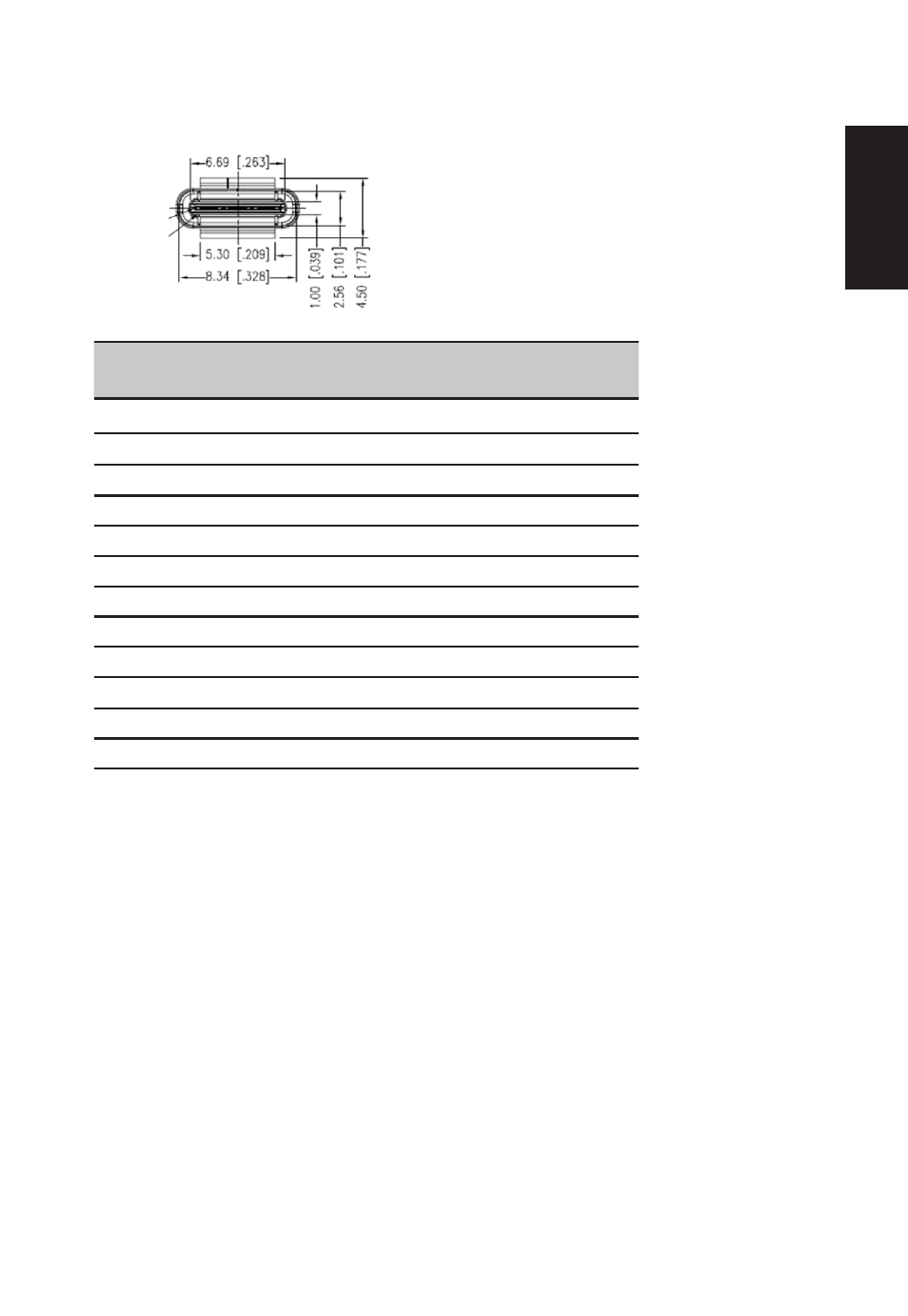

24-pin USB 3.1 Type C cable
PIN No. Signal Assignment PIN No. Signal Assignment
A1
GND
B12
GND
A2
SSTXp1
B11
SSTXp1
A3
SSTXn1
B10
SSTXn1
A4
VBUS
B9
VBUS
A5
CC1
B8
CC1
A6
Dp1
B7
Dp1
A7
Dn1
B6
Dn1
A8
SBU1
B5
SBU1
A9
VBUS
B4
VBUS
A10
SSTXn2
B3
SSTXn2
A11
SSTXp2
B2
SSTXp2
A12
GND
B1
GND
* only for certain models
