6

Englis

h

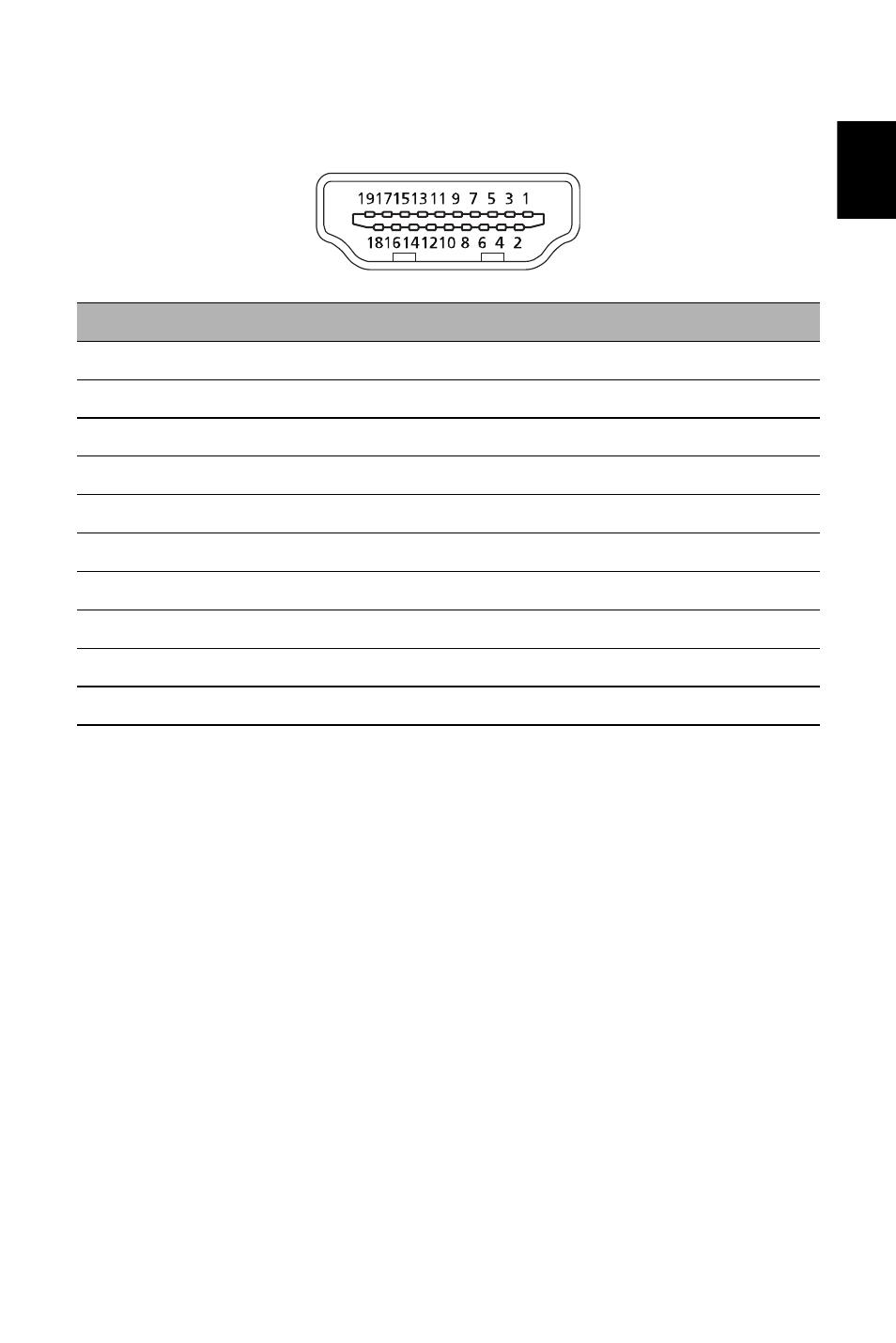

19-Pin Color Display Signal Cable

PIN NO. DESCRIPTION

PIN NO. DESCRIPTION

1

TMDS Data2+

2

TMDS Data2 Shield

3

TMDS Data2-

4

TMDS Data1+

5

TMDS Data1 Shield

6

TMDS Data1-

7

TMDS Data0+

8

TMDS Data0 Shield

9

TMDS Data0-

10

TMDS Clock+

11

TMDS Clock Shield

12

TMDS Clock-

13

CEC

14

Reserved (N.C. on device)

15

SCL

16

SDA

17

DDC/CEC Ground

18

+5V Power

19

Hot Plug Detect
