Mount Flexible Arm
This LCD monitor is designed for use with a flexible arm.
1. Follow the instructions in how to
Remove the Monitor Stand for Mounting .
2. Using 4 screws that meet the specifications listed below, attach the arm to the monitor ( Figure F.1 ).

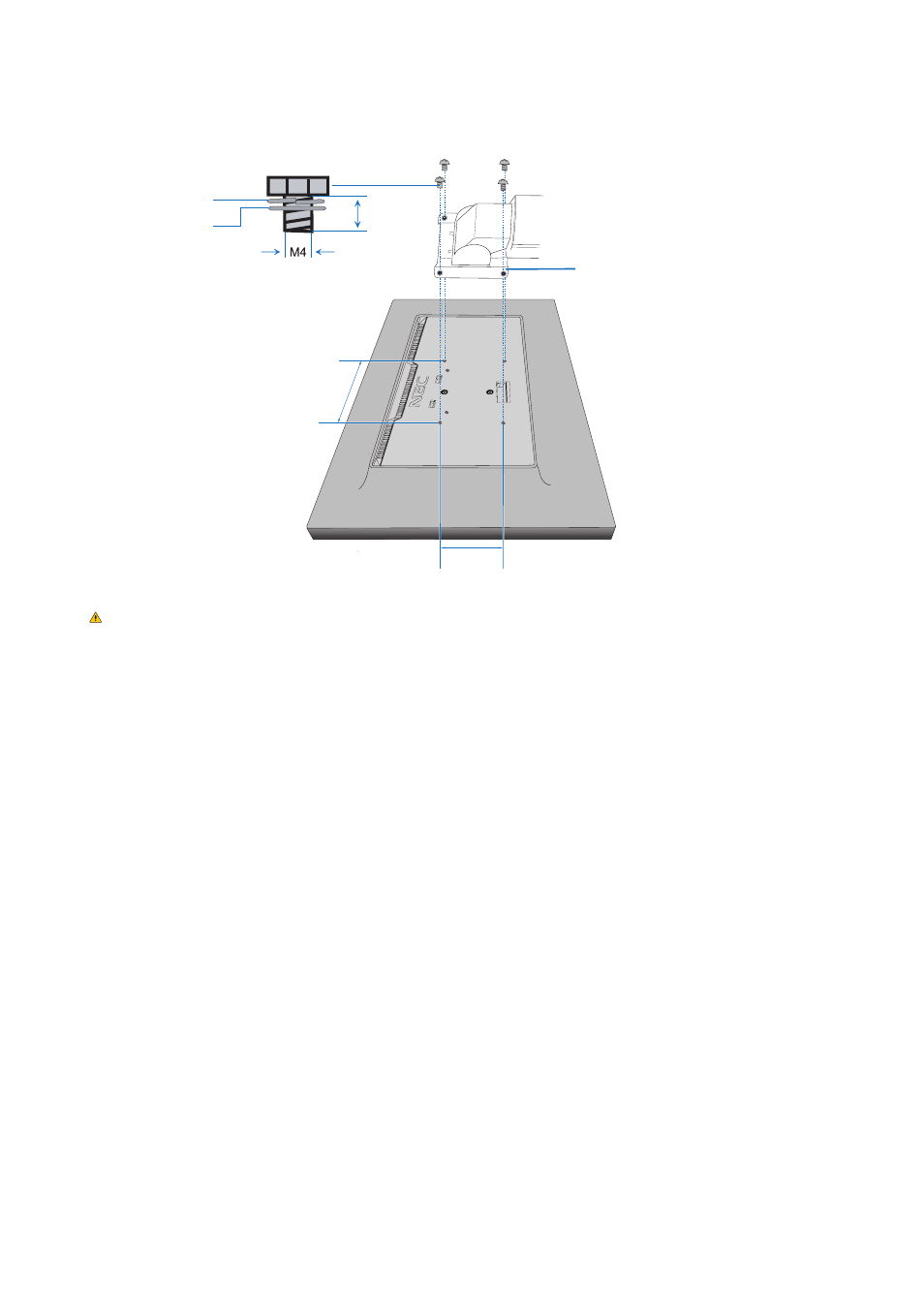

Figure F.1
100 mm
100 mm
Thickness of Bracket (Arm)
2.0~3.2 mm
12 mm
Spring washer
Flat washer
CAUTION: • Only use 4 M4 sized screws when mounting to avoid damage to the monitor and stand.
• To meet the safety requirements, the monitor must be mounted to an arm, which guaranties the necessary
stability under consideration for the weight of the monitor. The LCD monitor should only be used with an
approved arm (e.g. TUEV GS mark).
• Tighten all screws (recommended Fasten Force: 98 - 137N•cm).
A loose screw may cause the monitor to fall off the arm.
• Attaching the flexible arm should be done by two or more people if the monitor cannot be placed face
down on a flat surface for installation.
