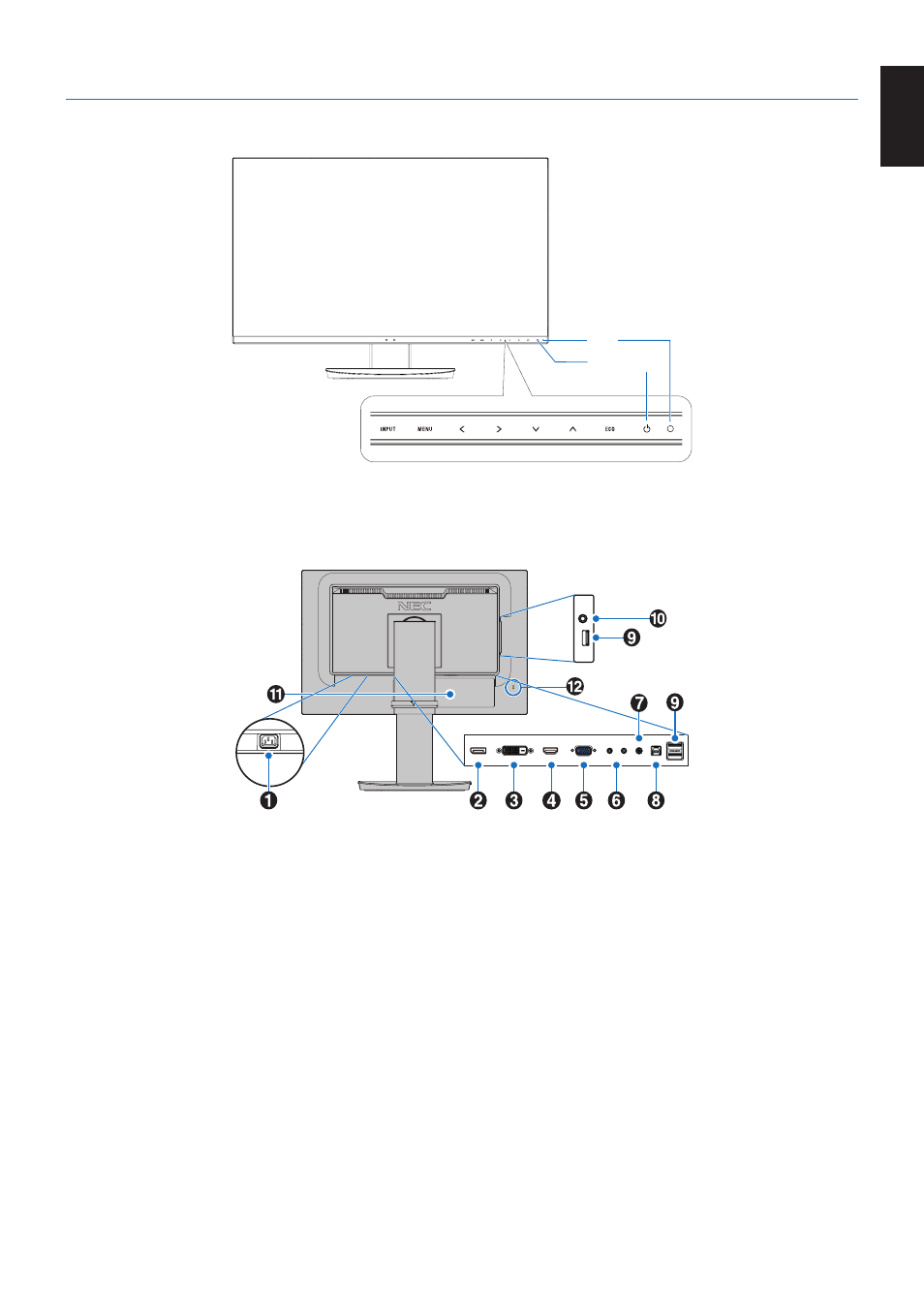

Parts Name and Functions
Control Panel
LED
Power Key
Control Keys
Refer to the
Controls
section. See
.
A
AC IN Connector
Connects with the supplied power cord.
B
DisplayPort IN
DisplayPort signals input.
C
DVI-D IN
DVI signals input.
D
HDMI IN
HDMI signals input.
E
VGA IN (mini D-Sub 15-pin)
Analog RGB signals input.
F
ControlSync IN/OUT
Connects with the supplied ControlSync cable. See
.
G
Audio IN
Audio signal input from external equipment such as a
computer or player.
H
USB Upstream Port (Type-B)
Connects with external equipment such as a computer.
Please use this port to control the monitor from connected
external equipment.
I
USB Downstream Port (Type-A)
Connects with USB devices.
Connects with external equipment such as a computer
compliant with USB.
J
Headphone Jack
Connects with headphones.
K
Rating Label
L
Security Slot
Security and theft protection lock slot compatible with
Kensington cables/equipment.
For products visit Kensington’s website.
