Speco Technologies PL200M Commercial Amplifier (160W) - Manual (Page 6)

1. Gain knob
2. High knob
This is the treble control. You can use it to get rid of high frequency
noises or to boost the sound of cymbals or the high harmonics of
the human voice. The gain range goes from -10dB to 10dB with the
central frequency 10kHz.
3.Low knob
This is the Bass control. Boost male voice or kickdrum and bass guitar. Your
system will sound much bigger than what it is. The gain range goes from -10dB
to +10dB and the center frequency is 100 Hz.
6. VOL knob
This knob controls volume. Turn the knob clockwise, and the volume increases.
Turn the knob counter clockwise, and the volume decreases.
7. Zone selector
Z1, Z2,Z3,Z4 can be considered as signal assignment switches. Press the button
Z1 down and signal will be assigned to ZONE 1. Release the button and it stops
Assigning signal to ZONE1.
Z2, Z3,Z4 can be operated in the same way.
8. Phone Volume
This knob controls the volume of the signal from the Phone system
(refer to 7). Turn the knob clockwise to increase the volume, and vice versa.
9. Phone
10. Monitor Volume
This knob controls the output signal level to monitor output.

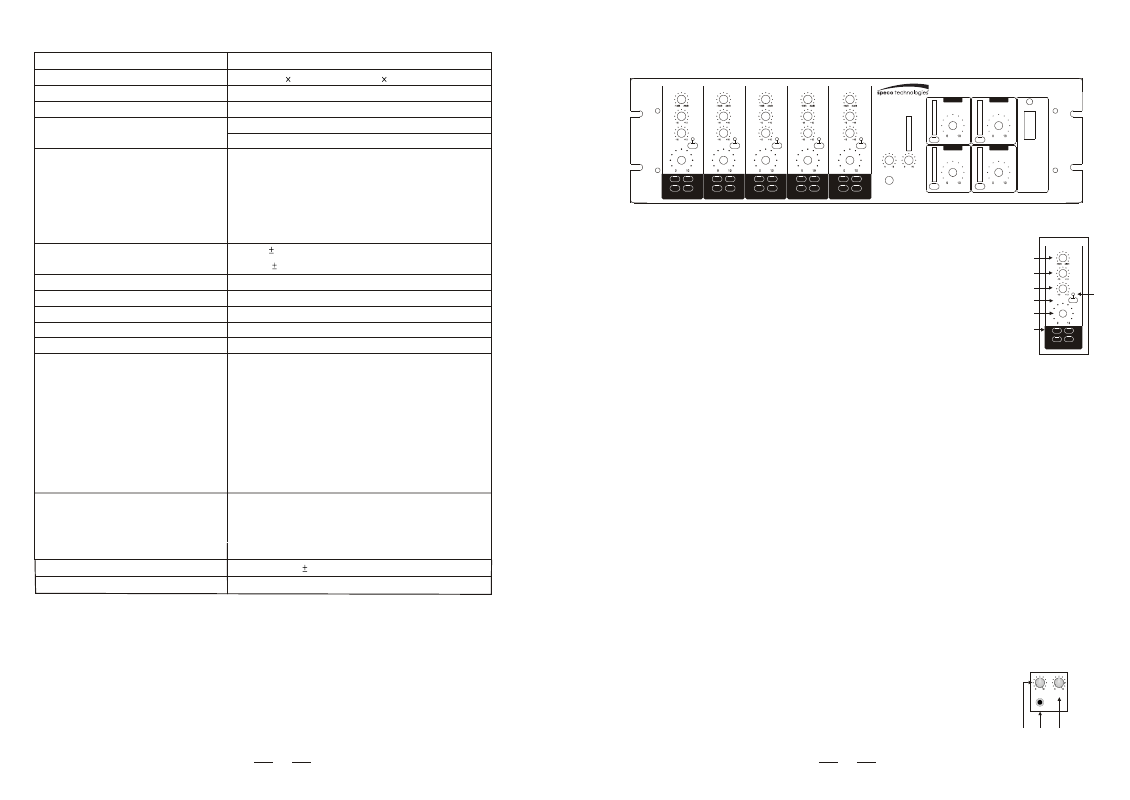

The Front panel
1
2
3
Phone Volume Monitor Volume
Phone
8 9 10
3
4. Mute
5. Mute LED
When the mute key is pressed down, mute LED lights up, and vice versa.
MON
Phone Volume Monitor Volume
Phone
POWER
VOLUME PL
MON
MON MON
VOLUME
VOLUME VOLUME
MUTE
CH 1 CH 2 CH 3 CH 4 CH 5
MUTE MUTE MUTE MUTE
ZONE 1 ZONE 2
ZONE 3 ZONE 4
Z3
Z1 Z2
Z4 Z3
Z1 Z2
Z4 Z3
Z1 Z2
Z4 Z3
Z1 Z2
Z4 Z3
Z1 Z2
Z4
Zone Selector Zone Selector Zone Selector Zone Selector Zone Selector
VOL
BASS
TREBLE
GAIN
VOL
BASS
TREBLE
GAIN
VOL
BASS
TREBLE
GAIN
VOL
BASS
TREBLE
GAIN
VOL
BASS
TREBLE
GAIN
ON
OFF
MUTE
CH 1
Z3
Z1 Z2
Z4
Zone Selector
VOL
BASS
TREBLE
GAIN
5
4
6
7
10
Note: Specification, design and appearance are subject to change without prior notice!
Model: PL200M
Output p ower c apacity:
Frequency response:
50-17000 Hz (-3dB)
Totalh armonic d istortion: Less th an 0.5%(1KHz-nominal power capacity)
Microphone: Bet ter th an 55 dB rated output
Line:b etter than 6 0dB rated o utput
Inputs / s ensitivity-impedance: CH1-3/X LRa nd 6.3mm combination sock et: bal/unbal
Mic: - 42dB /-38dB-600ohm,bal/un bal.
Line: -26B/-20dB-15Kohm, bal/unbal.
LINE I N/ stereo RCA jack/ unbalanced
CH4: -10dB 5 0Kohm
CH5: 0dB 50Kohm
Tone c This knob controls input gain. Turn the knob clockwise and the input
increases. Turn the knob counter-clockwise and the input decreases. Ba ss 10dB-100Hz
Treble 10dB-10KHz
Outputs for s peakers / Ohms: 4 oh m , 8 ohm
Outputs for s peakers / V olts: 25V-70V
Monitor o utput: 1Wrms
Phone o utput: 0.5W into 47ohm
Line o ut: 1.2V
Controls: 5 Gain controls for Ch1-5,
7 Volume contr ols forCh1 -5, tel.pagina, monit or, phone
4 Mas ter volume control
5 Treble controls
5 Bass controls
5 Mute controls
4 Zo ne select switch for ea ch channel
4 Zo ne moni tor select switch.
Indicator: Power indicator
4 Zo ne output-level meter
1 Moni tor output-level meter
5 Mute indicators
Power s upply/ Consumption: 115/230 V ac( 5%) -60/50Hz /400VA
Dimensions: 483mm(W ) x 132mm( H ) x 310mm(D)
SPECIFICATION
Signal/noise r atio:
1 AC select switch
RMS:40W 4; Peak output: 90W 4
PL200M MULTI-ZONE DISTRIBUTION P.A. AMPLIFIER
Mutes the signals from the corresponding channel.
The amplifier signals can be sent to a pair of headphones
through this socket.
