11. Zone1 VOLUME
VOLUME controls the output signal level of ZONE1.
12.LED VU-meter
This stereo 6 segment LED-meter indicates the level of the
overall output signal.
13.MONITOR selector
14. PL
This LED is the power indicator. When the amplifier is powered on, this LED
lights up. When the amplifier is powered off, this LED lights off.
15. Power switch
When the switch is set in the position ON, the unit is powered
on. When the switch is set in the position OFF, the unit is
powered off.
POWER
ON
OFF
PL
14
15

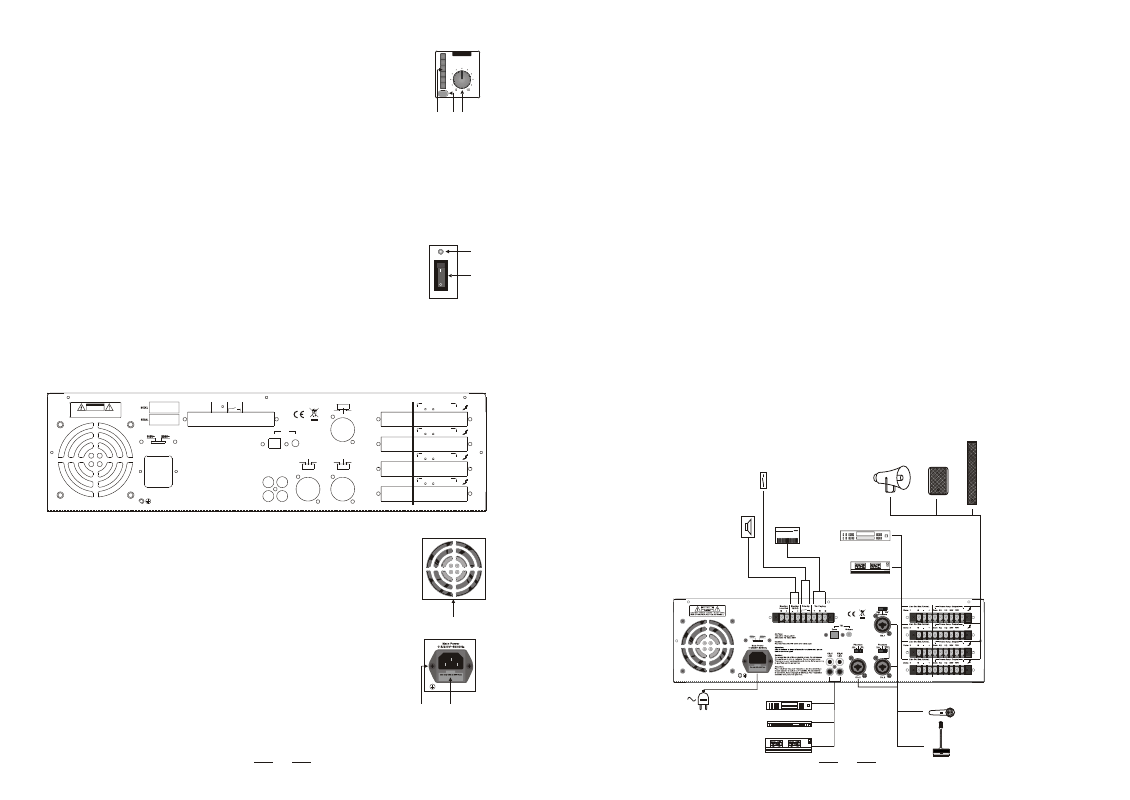

The Rear Panel
16. Intelligent fan
17. AC Input
This inlet connects the unit with the main power.
18. AC fuse
The fuse protects the alternating current circuit of the unit,
and the fuse can only be replaced in the event of fuse
damage.
16
17 18
4
MON
VOLUME
ZONE 1
3 1 2 1 1 1
G + - + T R G
Monitor Line Out 1W 8 Monitor Priority Tel. Paging
Volume Zone
Main Power 115/230V~50/60Hz
Ch.5 Line Ch.4 Line Ch.4
Ch.3 Ch.2
Ch.1
TEL
Phantom
Line Mic
Phantom
Line Mic
Phantom Line Mic Zone 1 G + - Com 4 8 25V 70V
Zone 2 G + - Com 4 8 25V 70V
Zone 3 G + - Com 4 8 25V 70V
Zone 4 G + - Com 4 8 25V 70V
AC Fuse: 110-120V: T6.3AL 250V 220-240V: T3.15AL 250V
Caution: Replace fuse only with same and rated type!
Attention: Afin de reduire le risque d'incendie remplacer seul par un fusible de meme type!
Caution: To reduce the risk of fire or electric shock. Do not expose this appliance to rain or moisture. Do not remove cover. There are no user serviceable parts inside. Refer servicing to qualified service personnel.
Attention: Pour reduir les risques d' incendie ou de choc electrique ne pas exposer a la pluie ou l' humidite. Ne pas enlever le couvercle. Aucun reglage al' interieur. Pour reparation consulter une personne qualifiee.
RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : SHOCK HAZARD - DO NOT OPEN RISK OF FIRE-REPLACE FUSE AS MARKED.
Line Out Bal./Unbal. Power Amp. Output
Line Out Bal./Unbal. Power Amp. Output
Line Out Bal./Unbal. Power Amp. Output
Line Out Bal./Unbal. Power Amp. Output CAUTION
Speaker Horn speaker
Microphone
Desk Top Microphone
Sound column
Contact
"VOICE PRIORITY"
Speaker
Aux.signal
Mains
AM/FM tuner
CD player
Cassette recorder
Amplifier
Recorder
9
Pushing the MONITOR button down will connect the signal from amplifier
zone 1 to the monitor output. Releasing the button will then cut off the
signal connection to the monitor. The other three buttons are operated in
the same way.
The PL200M is equipped with an intelligent fan. It will only begin
to run if the temperature is above 50 degrees C, and the speed
of the fan will increase as the temperature rises.
INSTALLATION NOTES
The amplifier must be operated under appropriate conditions at all times.
This means that the installation location must provide sufficient ventilation and the
device is not exposed to direct sunlight or the direct radiation or reflection from any
heat source. When installing the loudspeaker systems, choose a location that will
not be affected by extreme and/or constant vibration or other mechanical oscillation.
Also make sure that the speakers are installed at locations that are free from dust
and /or moisture.
CAUTION
We strongly recommend that you leave the installation of the PL200M system to
qualified and experienced service technicians who specialize in connecting
electronic equipment. Do not take the risk of Electro-shock. To reduce this risk,
all connections should be made before connecting the amplifier to the main power
supply. Be sure that all connections are correct and that no short-circuit exists.
The overall sound reinforcement installation must be in accordance to the laws,
regulations, standards, and guidelines that are relevant and applicable in the
jurisdiction where the equipment is going to be operated.
AC POWER SUPPLY CAUTION
Before using the amplifier for the first time, make sure that the appliance voltage
is correct. Only connect the amplifier to grounded outlets. Connection of the
amplifier to the main power supply (115/230Vac) has to be accomplished by
inserting the supplied cord into the corresponding socket .
