COUGAR Archon 2 Mesh RGB Mid-Tower Case (White) - Manual

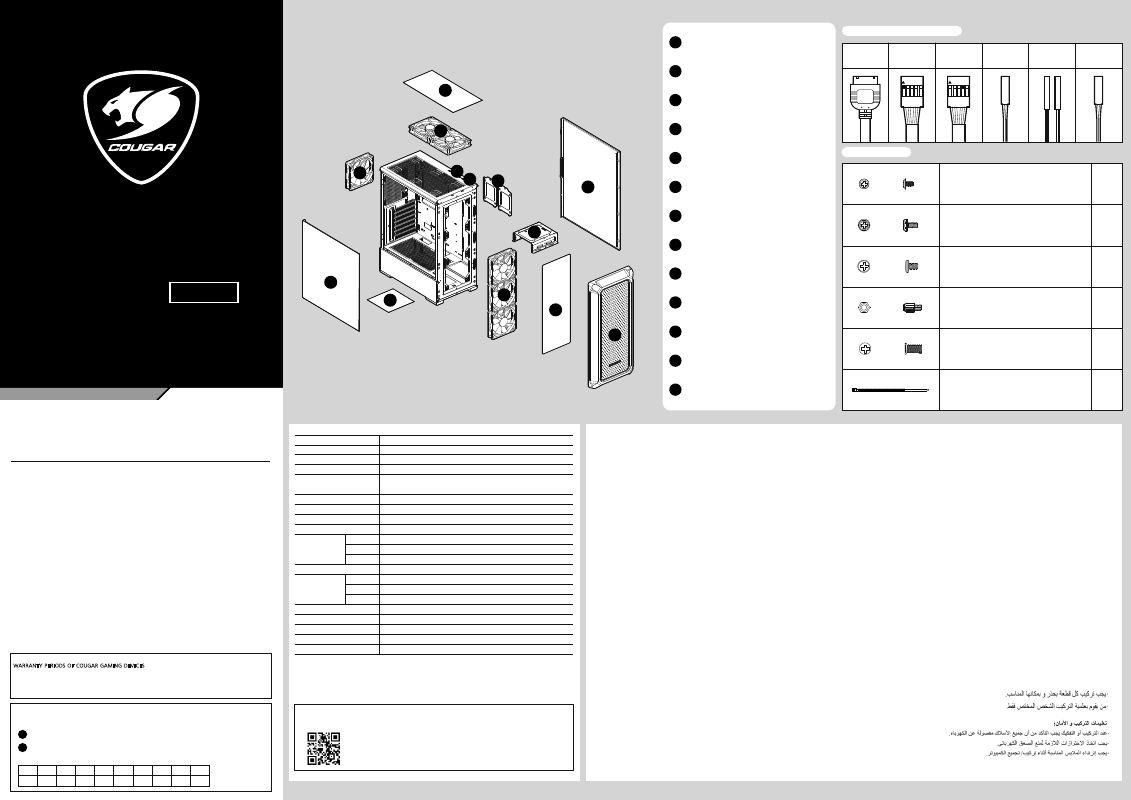

Assembly Drawing
CGR-5CC5B-MESH-RGB/CGR-5CC5W-MESH-RGB
Mid Tower
210 (W) x 470 (H) x 380 (D) mm
8.3 (W) x 18.5 (H) x 15 (D) in
Mini ITX / Micro ATX / ATX
120mm x 1
2
6 Max.
*360mm / 280mm / 240mm / 140mm / 120mm
120mm
*160 (mm) / 6.3 in
2+1 (converted from 3.5" drive bay) / (2 SSD trays included)
7
120mm x 3 / 140mm x 2 (120mm ARGB fan x 3 pre-installed)
120mm x 2 / 140mm x 2
USB 3.0 x 2, USB 2.0 x 1, Mic x 1 / Audio x 1, RGB Button
Model No.
ARCHON 2 MESH RGB (BLACK)/(WHITE) Model Name
Case Form Factor
Motherboard Type
Dimensions (WxHxD)
I/O Panel
3.5" Drive Bay
2.5" Drive Bay
Expansion Slots
Cooling Fan
Support
Water Cooling
Support
Maximum Number of Fans
Max. Graphics Card Length
Max. CPU Cooler Height
Max. PSU Length 315 (mm) / 12.4 in
Transparent Left Panel 3mm Tempered Glass
RGB Sync with M/B Yes
170 (mm) / 6.7 in
Rear
Front
Top
240mm / 120mm
Rear
Front
Top
*When install a 360mm radiator at the front, the maximum PSU length is 140mm.
Specifications might vary depending on the country or region of sale.
ENGLISH
• Mesh front panel with powerful airflow
• Integrated RGB system with 5V ARGB motherboard
synchronization
• Support for ATX motherboards
• Massive tempered glass side window
• Up to 315mm graphics cards
• Up to six fans and 170mm CPU cooler
• Up to a 360mm water cooling radiator
POLISH
• Przedni panel z siateczki z silnym przepływem powietrza
• Zintegrowany system RGB z synchronizacją płyty głównej 5 V
ARGB
• Obsługa płyt głównych ATX
• Masywna szyba boczna z hartowanego szkła
• Karty graficzne do 315 mm
• Do sześć wentylatorów i 170 mm chłodzenie procesora
• Do 360 mm chłodnicy wody chłodzącej
ITALIA
• Pannello frontale in mesh con potente flusso d'aria
• Sistema RGB integrato con sincronizzazione scheda madre 5V
ARGB
• Supporto per schede madri ATX
• Massiccio finestrino laterale in vetro temperato
• Schede grafiche fino a 315 mm
• Fino a sei ventole e dispositivo di raffreddamento della CPU da
170 mm
• Radiatore di raffreddamento ad acqua fino a 360 mm
PORTUGUÊS
• Painel frontal em malha com fluxo de ar poderoso
• Sistema RGB integrado com sincronização da placa-mãe
5V ARGB
• Suporte para placas-mãe ATX
• Janela lateral de vidro temperado maciço
• Placas gráficas de até 315 mm
• Até seis ventiladores e cooler para CPU de 170 mm
• Radiador de refrigeração de água de até 360 mm
РУССКИЙ
• Сетчатая передняя панель с мощным воздушным потоком.
• Интегрированная система RGB с синхронизацией
материнской платы 5V ARGB
• Поддержка материнских плат ATX.
• Массивное боковое окно из закаленного стекла.
• Видеокарты до 315 мм
• До шесть вентиляторов и 170-мм кулер для процессора
• Радиатор водяного охлаждения диаметром до 360 мм.
DEUTSCH
• Mesh-Frontpanel mit starkem Luftstrom
• Integriertes RGB-System mit 5V ARGB-Motherboard-
Synchronisation
• Unterstützung für ATX Motherboards
• Massives Seitenfenster aus gehärtetem Glas
• Bis zu 315 mm Grafikkarten
• Bis zu sechs Lüfter und 170 mm CPU-Kühler
• Bis zu 360 mm Wasserkühler
ESPAÑOL
• Panel frontal de malla con potente flujo de aire
• Sistema RGB integrado con sincronización de placa base
ARGB de 5 V
• Soporte para placas base ATX
• Ventana lateral de vidrio templado masivo
• Tarjetas gráficas de hasta 315 mm
• Hasta seis ventiladores y enfriador de CPU de 170 mm
• Radiador de refrigeración por agua de hasta 360 mm
FRANÇAIS
• Panneau avant en mesh avec flux d'air puissant
• Système RVB intégré avec synchronisation de la carte mère
ARGB 5V
• Prise en charge des cartes mères ATX
• Vitre latérale massive en verre trempé
• Cartes graphiques jusqu'à 315 mm
• Jusqu'à six ventilateurs et refroidisseur de processeur de 170 mm
• Jusqu'à un radiateur de refroidissement par eau de 360 mm
• 铁网面板带来强大的散热气流
• RGB整合系统支援5V ARGB主机板灯效同步控制功能
• 支持ATX主板
• 全景钢化玻璃侧窗
• 最高支持 315mm 显卡
• 最高支持6个风扇和170mm CPU散热器
• 最高支持360mm 水冷排
中 文
• 강력한 공기 흐름이있는 메시 전면 패널
• 5V ARGB 마더 보드 동기화를 지원하는 통합 RGB 시스템
• ATX마더 보드 지원
• 대형 강화 유리 측면 창
• 최대 315mm 그래픽 카드
• 최대 6 개의 팬과 170mm CPU 쿨러
• 최대 360mm 수냉 라디에이터
한국어
•
• 5V ARGBRGB
• ATX
•
• 315mm
• 6
170mmCPU
• 360mm
日本語
год и месяц изготовления продукции указаны в серийном номере продукта.
(существует 2 способа определения даты изготовления, оба способа описаны ниже)
После S/N: первые две цифры означают год, вторые две – месяц изготовления.
Например, S/N: H 1702 000001 означает, что товар был произведен в феврале 2017 года.
После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже,
и означают год, последующие две цифры – месяц изготовления.
Например, S/N: D AG02 REVI000001 означает, что товар был произведен в феврале 2017 года.
● Например,
AG = 17 = 2017 год
ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ
A B C D E F G H I J
1 2 3 4 5 6 7 8 9 0
A
B
ACCESSORY KIT
GLOBAL WARRANTY POLICY
WARRANTY PERIODS OF COUGAR GAMING DEVICES
Product : COUGAR ARCHON 2 MESH RGB
Warranty : 1 Year
● This warranty gives you specific legal rights. You may also have other rights granted under local law.
These rights may vary.
● Only for electrical components.
C Front panel
E Right side panel
Power button / RGB button A
USB 3.0 / USB 2.0 / HD audio ports B
D Tempered glass side panel
G 2.5" HDD/SSD trays
F 3.5" HDD cage (compatible for 2.5" HDD/SSD)
H 3 x 120mm / 2 x 140mm fans for front panel
(120mm ARGB fans x 3 pre-installed)
1 x 120mm fan for rear panel (optional) I
J 2 x 120mm / 2 x 140mm fans for top panel
(optional)
L Air filter for top panel
M Air filter for bottom panel
K Air filter for front panel
Installing the Front I/O Connectors
БЪЛГАРИЯ
• Подробни инструкции за употреба изтеглете от: https://cougargaming.com/bg
България QR код
HD AUDIO
HD AUDIO
USB 2.0
USB
POWER SW
POWER SW
POWER LED
POWER LED + POWER LED
-
USB 3.0 H.D.D LED
H.D.D LED
+- USB3.0
X 8
X 3
Fan screws
X 21 Motherboard screws & 2.5" SSD screws
X 6 Power supply screws
Stand-off for motherboard
X 8 3.5" HDD screws
Cable ties X 5
ELEGANT ARGB MID TOWER CASE WITH POWERFUL MESH INTAKES
Archon 2 Mesh RGB sports an attractive and elegant design with three ARGB fans at the front
panel. The integrated lighting button allows it to display amazing lighting effects. Powerful
airflow, mighty support for up a 360mm radiator, a 315mm graphic card, and a 170mm CPU
cooler deliver superior value for you.
ELEGANT LOOKS WITH SUPERIOR AIRFLOW
Archon 2 Mesh RGB’s front panel combines with excellent appearance and unobstructed airflow. The
breathable steel mesh brings powerful cooling performance while keeping dust from getting in through.
INCREDIBLE RGB LIGHTING
Archon 2 Mesh RGB comes with 3 ARGB fans. You are freely to control several amazing lighting effects
with the dedicated RGB button. The ARGB fans are also adaptable with any compatible motherboards’ 5V
ARGB connection for system-wide lighting synchronization.
TOP-NOTCH COOLING
Archon 2 Mesh RGB’s compact layout allows you to install six fans, a 360mm water cooling radiator,
and a 170mm CPU cooler. This immense cooling potential will enable you to choose components freely.
GREAT SUPPORT FOR COMPONENTS
Its advanced support for up to 315mm-long graphics cards, which allows you to enjoy the latest games
with smooth framerates.
CLEAN AND TIDY LOOKS
Unlike most massive tempered glass panels, the full-length PSU shroud presents a distinctive view
of divided design. The full-length PSU cover also allows you to hide the cables, improve the internal
airflow, and showcase a clean build!
ARCHON 2
MESH
RGB
A
B
C
D
E
F
G
H
I
J
K
L
M
