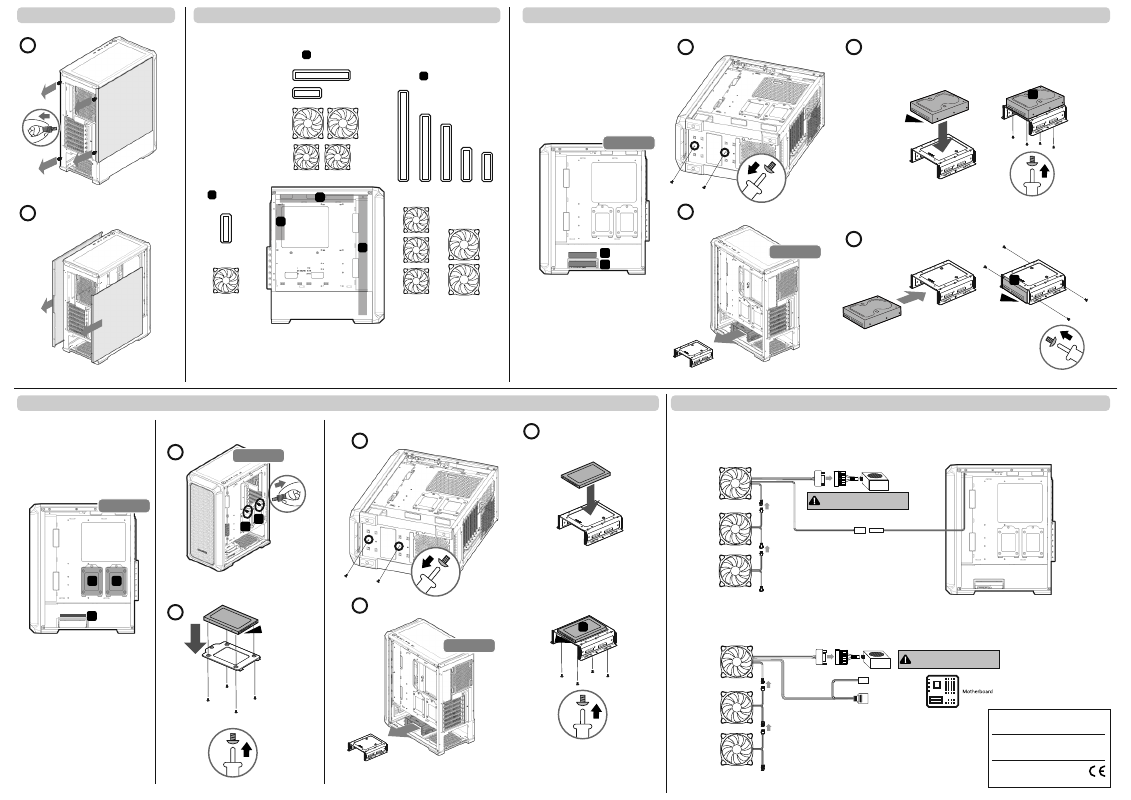

Controlling lighting modes Installing 2.5" SSDs /HDDs
1
2
Compucase Enterprise Co.,Ltd.
No. 225, Lane 54, An Ho Road Sec. 2 Tainan, Taiwan, R.O.C
Tel:+886-6-356-0606
Service E-Mail:[email protected]
COUGAR USA Technical Service
Tel: (833) 256-3778
Mail: [email protected]
https://cougargaming.com/support/contact/upload/
For more information, please visit
Compucase Enterprise Co.,Ltd.
All rights reserved.
www.cougargaming.com
Made in China
Removing the side panels Installing 3.5" HDDs
1
2
120
140
120
(Top) 1
(Rear) 3
120
280 *360 240 140 120
120
240
120
140
(Front) 2
Installing water cooling radiators & cooling fans
1
2
3
4
Connectors
Connectors
1
2
2
3
3
1
2
1 2
3
Connectors
(Please don't remove the
SATA connector from the PSU)
(Please don't remove the
SATA connector from the PSU)
Connectors
3
1
RIGHT
RIGHT
1
2
RIGHT
RIGHT
RIGHT
2
1
● First Mode: Several Lighting Effects
Please connect the power cable of the WH120-M fan to a SATA connector from the PSU.
You can use the top panel’s RGB SW button to switch various beautiful lighting effects we have preset for you.
※ If you press and hold the RGB SW button for 3 second. The lights of the fans will be turned off.
● Second Mode: Motherboard Synchronization
Please use the included adapter to connect to a compatible motherboard’s 3-pin 5V Addressable RGB header and
enjoy system-wide ARGB synchronization.
If you unplug the adapter, the fans will be returned to the first mode.
WH120-M
WH120-S
WH120-S
Power suppy
Power connector
RGB lights switch cable
WH120-M
WH120-S
WH120-S
Power suppy
Power connector
RESET SW CH
RESET SW CH Cable
5V Addressable Header Adapter
for Compatible Gigabyte
Motherboards
for Compatible Asus or MSI
Motherboards
VDG
* When install a 360mm radiator at the front,
the maximum PSU length is 140mm.
* When the 5V Addressable Header Adapter is connected
to motherboard, the RGB SW button is nonfunctional.
