- 14 -

C. Installing the CPU Cooler

Be sure to install the CPU cooler after installing the CPU. (Actual installation process may differ depending the

CPU cooler to be used. Refer to the user's manual for your CPU cooler.)

u

v

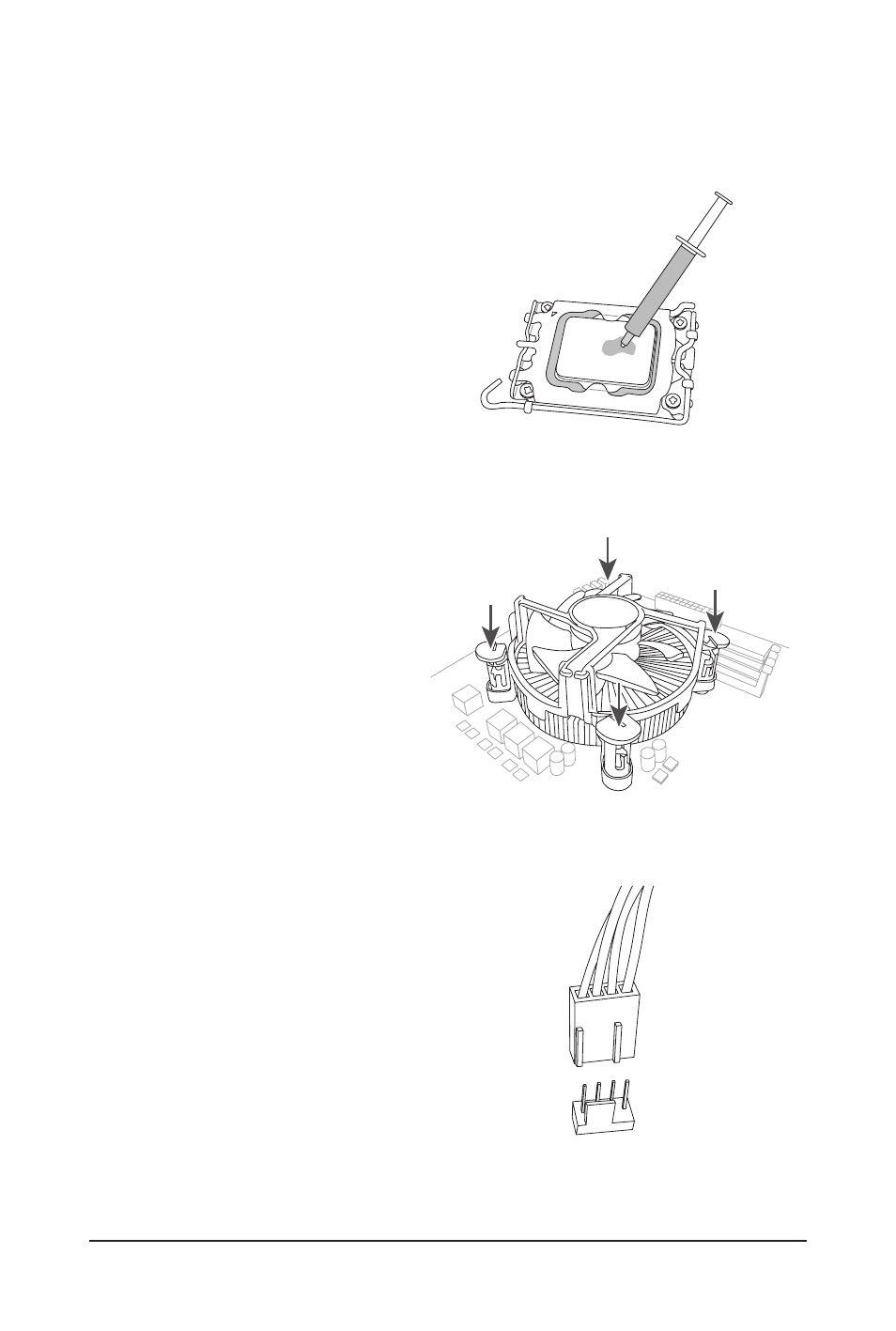

Apply an even and thin layer of thermal

grease on the surface of the installed CPU.

Place the cooler atop the CPU, aligning the

four push pins through the pin holes on the

motherboard. Push down on the push pins

diagonally.

j

j

k

k

w

Finally, attach the power connector of

the CPU cooler to the CPU fan header

(CPU_FAN) on the motherboard.
