DJMONITOR 42
6/10 – User manual

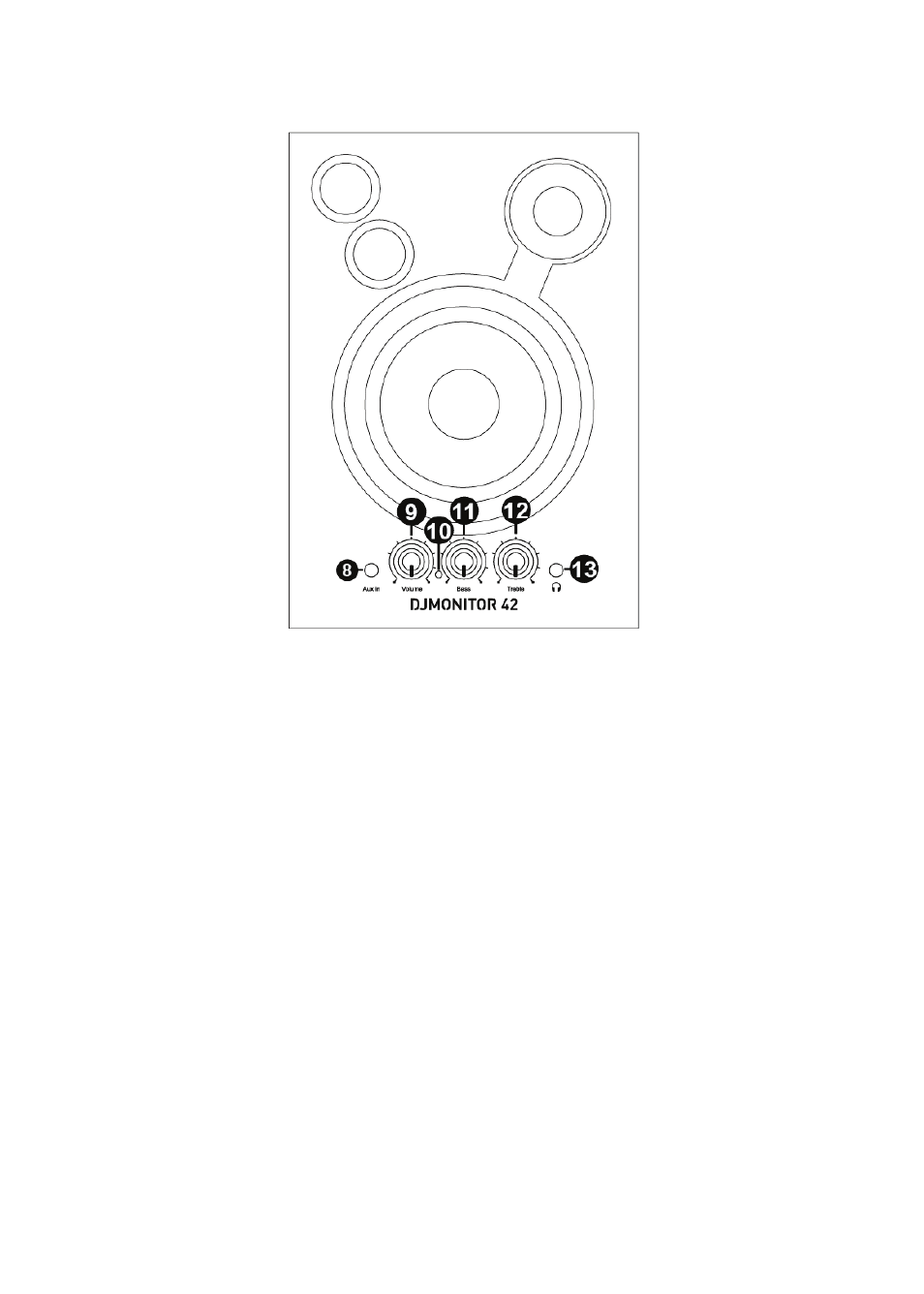

- Right speaker with controls:
8: Auxiliary audio input
9: Master volume control knob
10: Power LED
11: Bass control knob
12: Treble control knob
13: Headphone connector
2.2.1. Connection to a PC
- Connect your speaker kit's main input (RCA connectors on the back of the right satellite speaker) to the green
FRONT SPEAKERS or FRONT OUT connector on your sound card or on the sound card integrated into your
computer's motherboard, using the included jack (male) / 2 RCA (male) cable.
2.2.2. Connection to a television set equipped with a headphone jack
- Connect your speaker kit's main input (RCA connectors on the back of the right satellite speaker) to the
headphone jack on your television set.
2.2.3. Connection to a DVD player/television set equipped with Left and Right
audio outputs
Requires a female jack / 2 male RCA cable (not included – please see diagram A, below).
1. Connect your male jack / 2 male RCA cable to the female jack / 2 male RCA cable.
2. Connect the white RCA connector on the female jack / 2 male RCA cable to the corresponding audio output on
your DVD player/television set.
3. Connect the red RCA connector on the female jack / 2 male RCA cable to the corresponding audio output on
your DVD player/television set.
