Top View
1. Input
Plug your guitar in here. Always use a good quality screened guitar lead.
2. Gain 1
This Gain control adjusts the amount of overdrive or distortion that Channel 1 will
deliver. As the Gain control is increased clockwise (CW) the sound will become
more overdriven moving through crunch tones until, at its maximum position, a full
crunch tone is reached.
3. Level 1
This Level control sets the overall level or volume from Channel 1 of the pedal. It
should be used in conjunction with the Gain 1 control to achieve the exact type of
drive you require. Generally speaking, at lower Gain settings, the Volume will be
increased and at higher Gain settings the Volume should be decreased.
4. Channel 1 Clean/Crunch Mode Switch
This switch enables Channel 1 to be set up as a Clean or Crunch channel. The Crunch
channel can also be used as a clean boost by running the level high and the gain low.
This will add further saturation to an already overdriven amplifier.
5. Bass
The Bass control adjusts the amount of low end frequencies in your tone. This pedal
has an advanced tone shaping circuit (shared by Channel 1 and Channel 2) which
allows the tone to be tight and cutting, counter clockwise (CCW), to warm and
thumping (CW).
6. Middle
The Middle control adjusts the amount of middle frequencies in your tone. The middle
frequencies are particularly important in getting the amount of ‘body’ your tone has.
With the Middle control set to its minimum position (fully CCW) the sound will be
aggressive and scooped, this is a tone ideal for aggressive rhythm playing. As the
Middle control is increased (CW) the amount of ‘body’ is increased, which is more
suitable for sustained lead guitar tones.
7. Treble
The treble control allows exact adjustment of the treble frequencies within the sound.
At low settings (CCW) the sound will be warm and darker in character. As the Treble
control is increased (CW) the sound will become brighter. At the maximum settings
the sound will be aggressive and cutting.
8. ISF (Infinite Shape Feature)
The patented ISF control works in conjunction with the Bass, Middle and Treble
controls. It allows you to choose the exact tone signature you prefer. Fully CCW is a
more American characteristic with a tight bottom end and more aggressive middle,
and fully CW is a British characteristic which is more ‘woody’ and less aggressive.

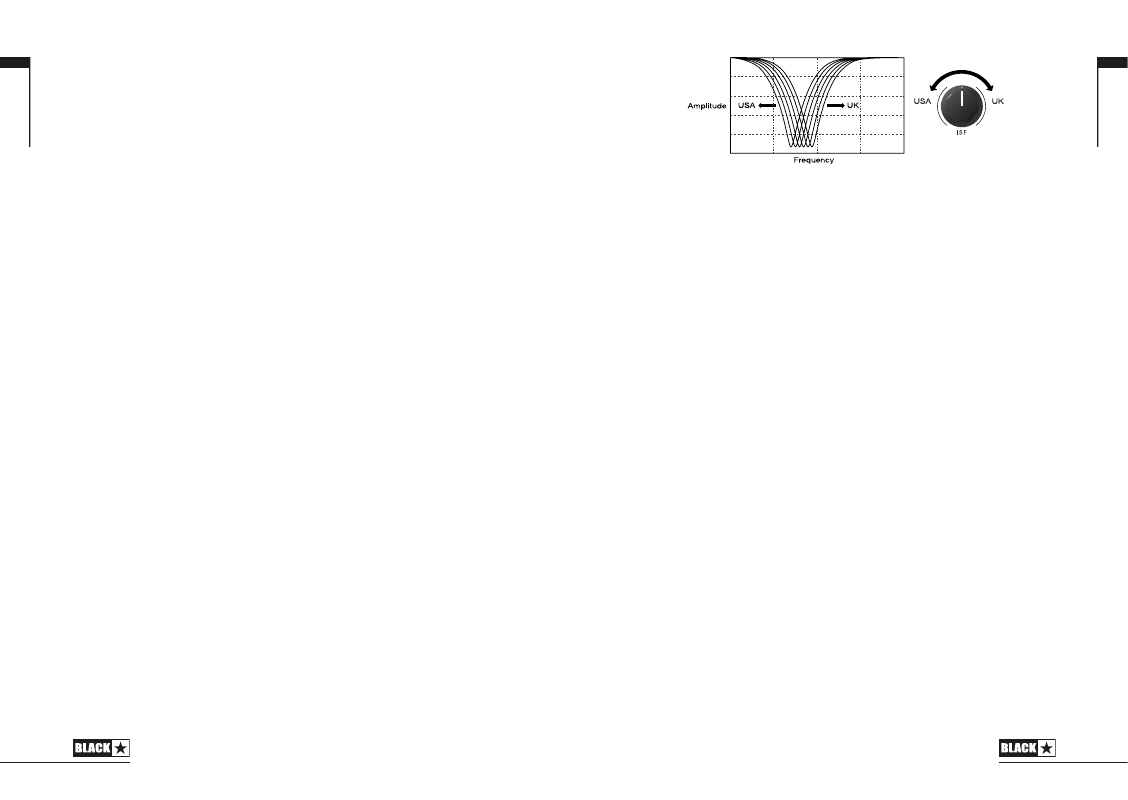

See illustration below.
We recommend that to start with the ISF is set to half way and the Bass, Middle and
Treble are set to taste. Then try gradually adjusting the ISF CW and CCW until you
find the sound you prefer.
9. Gain 2
This Gain control adjusts the amount of overdrive or distortion that Channel 2 will
deliver. As the Gain control is increased (CW) the sound becomes more overdriven
moving through crunch tones until, at its maximum position, a full overdriven tone is
reached.
10. Level 2
This Level control sets the overall level or volume from Channel 2 of the pedal. It should
be used in conjunction with the Gain 2 control to achieve the exact type of drive you
require. Generally speaking, at lower Gain settings, the Volume will be increased and
at higher Gain settings the Volume should be decreased.
11. Cab Rig Switch
Select one of three Cab Rig environments. You can deep edit and load in your own
Cab Rig settings using the free Architect software.
12. Valve Guard
Through this guard you can see the ECC83 valve at the heart of your pedal.
WARNING: Do not attempt to remove the fixing screws or guard. No user serviceable
parts inside.
13. Channel 2 Crunch/Overdrive Mode Switch
This switch enables Channel 2 to be set up as a Crunch or Overdrive Channel.
Crunch mode is very dynamic, from a light crunch to medium breakup. Switching to
Overdrive mode gives more gain and saturation with a slight lift in presence.
14. Output
This output is designed for connection to the input of other pedals or the input of a
valve solid state, digital or hybrid amplifier. For best noise performance we recommend
you place the overdrive pedal first in the effects chain. The built-in buffer/line driver
is perfect for preserving your tone when using long cables, or large pedalboards,
even driving low impedance pedals like many wah-wahs. Always use a good quality
screened guitar lead.
