Blackstar Dept. 10 Dual-Drive Pedal - Manual (Page 6)

11 10
15. Cab Rig Output

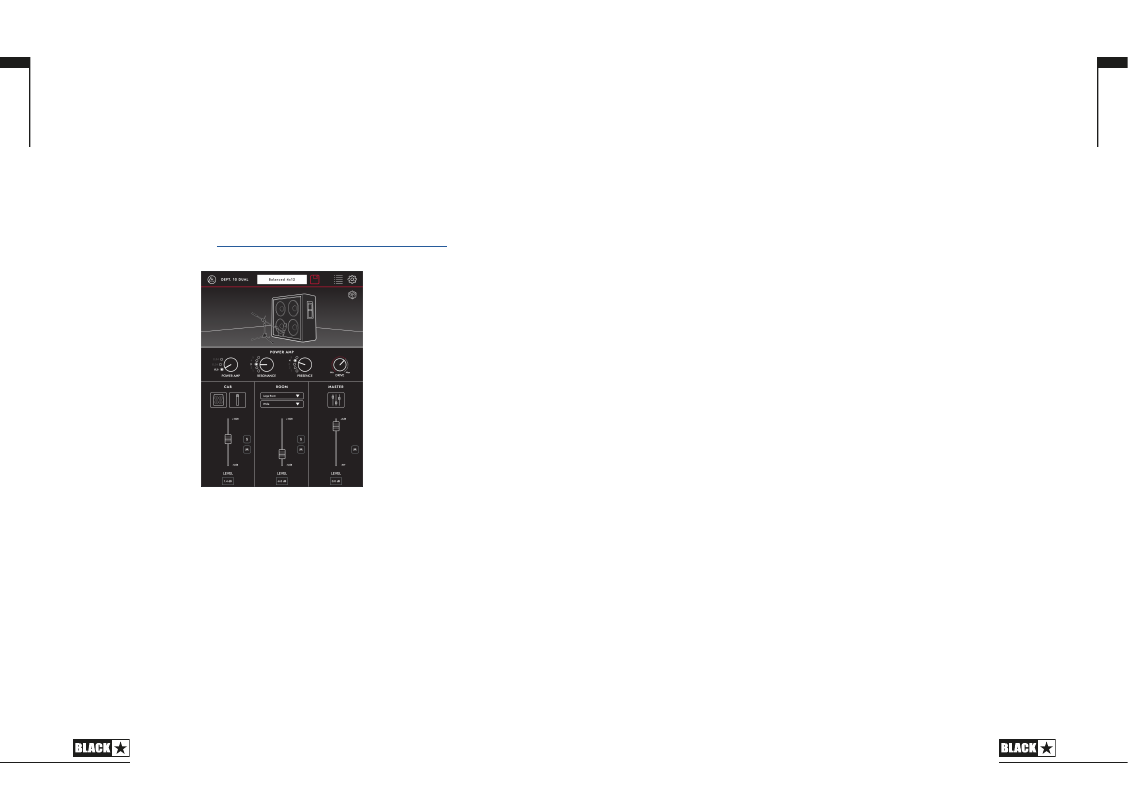

Cab Rig is our next generation DSP speaker simulator that reproduces the sound
and feel of a mic’d up guitar cab in incredible detail. Deep dive edit, make custom
patches for your cabinet, microphone, power amp and more by plugging your pedal
into our free Architect software via USB. This source will output the selected Cab
Rig switch preset, Left = 1, Middle = 2 and Right = 3. This output has the selected
Cab Rig preset applied. A DI signal can be selected within the Cab Rig software to
bypass the cabinet simulation.
NOTE: The Cab Rig output is a fully stereo 6.35mm connection and should only be
used with a stereo jack. Cab Rig output also features a low noise and low distortion
headphone driver circuit which can drive all standard headphone impedances and
can be used for silent practice.
Download Architect here: https://www.blackstaramps.com/uk/architect
16. Channel 1 On/Off LED
When the WHITE LED is on Channel 1 is on. When the LED is not on, Channel 1
is off.
17. Channel 1 On/Off Footswitch
Press this switch to turn Channel 1 on or off.
18. Channel 2 On/Off LED
When the RED LED is on Channel 2 is on. When the LED is not on, Channel 2 is off.
19. Channel 2 On/Off Footswitch
Press this switch to turn Channel 2 on or off.
Rear View
1. FX Loop Send
Connect the (mono) input of an external effects unit here. Insert any external effects
you want to keep clean such as reverb, delay, or modulation.
2. FX Loop Return
Connect the (mono) output of an external effects unit here.
3. DC Inlet
For the input of the 9V DC / 500mA adaptor supplied.
Only use the included power supply.
4. USB Audio Output
Plug a USB cable in here to connect the amplifier to a Windows PC or Mac.
The amplifier will appear on a personal computer as an audio capture device within
recording software. This output has the selected Cab Rig preset applied. A DI signal
can be selected within the Cab Rig software to bypass the cabinet simulation.
5. XLR Line/DI Output
A balanced output for connection to a PA, mixing desk or interface for recording and
monitoring. This source will output the selected Cab Rig switch preset. This output
has the selected Cab Rig preset applied. A DI signal can be selected within the Cab
Rig software to bypass the cabinet simulation.
