SYSTEM SELECTION

LN-25 Wire Feeder

www.lincolnelectric.com

Electrode cold operation is available with K449 or K428 (with optional K443-2 Internal Contactor Kit installed).

(Connections are for current equipment design. Subject to change without notice.)

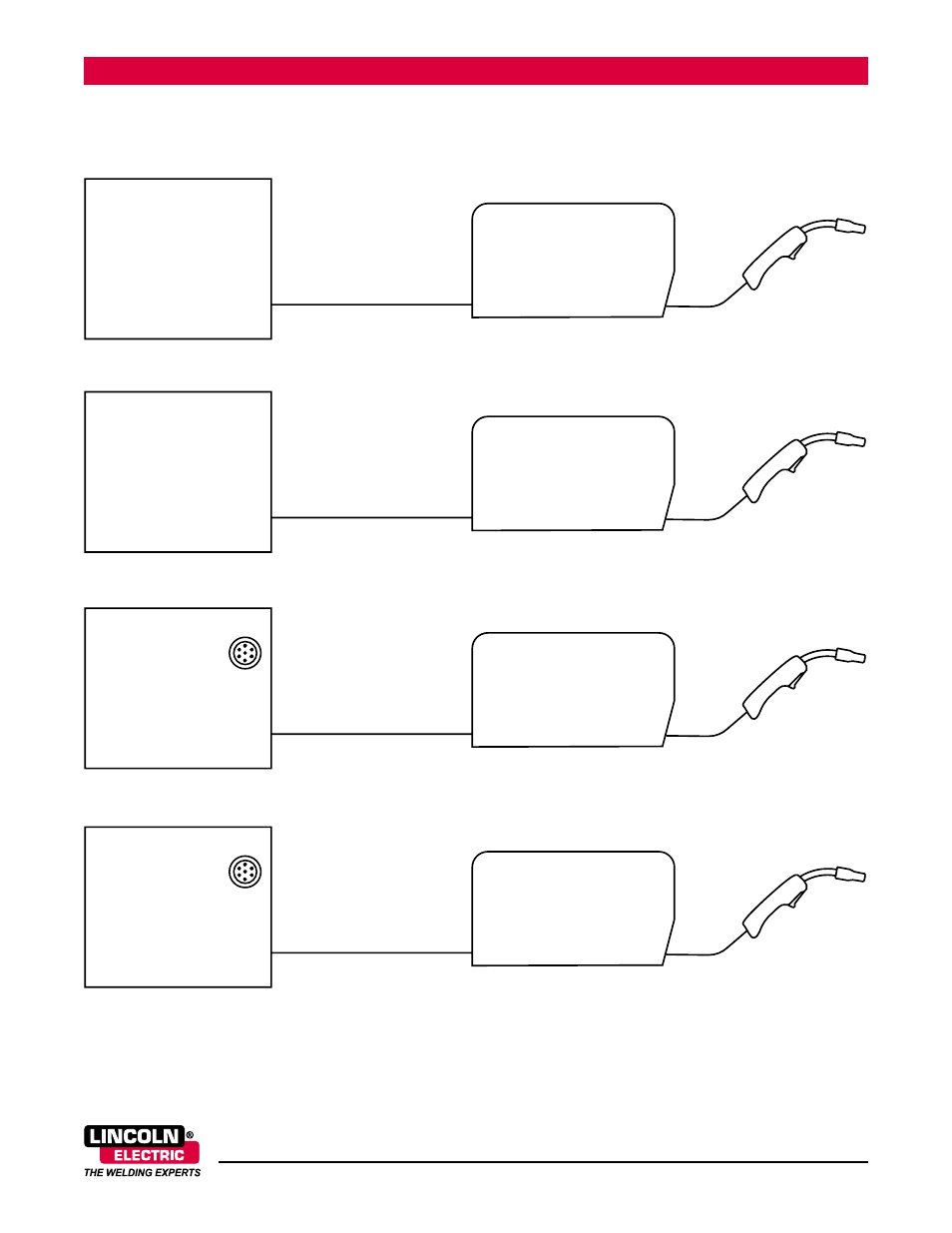

ACROSS THE ARC SET-UP (with Electrode Cold Operation)

Power source contactor
switch must be in the
“ON” position or use
K484 Jumper Plug Kit.

Order K484 Jumper
Plug Kit.

CC Power Source,
Ranger

TM

10,000,

Ranger 3 Phase,
SAE 400 with CV Adapter

Magnum gun and

cable assembly

Weld Power Cable

LN-25 Wire Feeder

K449 or K428 (with K443-2)

LN-25 Wire Feeder

K449 or K428 (with K443-2)

LN-25 Wire Feeder

K449 or K428 (with K443-2)

LN-25 Wire Feeder

K449 or K428 (with K443-2)

Output Terminals
Always Hot.

Ranger 250, Ranger 250 LPG,
Ranger 305G, Ranger 305D,
Commander® 300,
Vantage® 500,
Air Vantage® 500,
Engine Driven Welders

with Wire Feed Module

(local/remote switch in local position)

Power source contactor
switch must be in the
“ON” position.

Magnum gun and

cable assembly

Weld Power Cable

Output Terminals
Always Hot.

Output Terminals
Always Hot.

Output Terminals
Always Hot.

CV-250,
CV-300,
CV-400,
CV400-I,
CV500-I

Magnum gun and

cable assembly

Weld Power Cable

14 Pin

CV-655,
DC-400,
DC-600,
DC-655,
V350-PRO

Magnum gun and

cable assembly

Weld Power Cable

14 Pin
