LN-25 Wire Feeder
www.lincolnelectric.com [5]
SYSTEM SELECTION

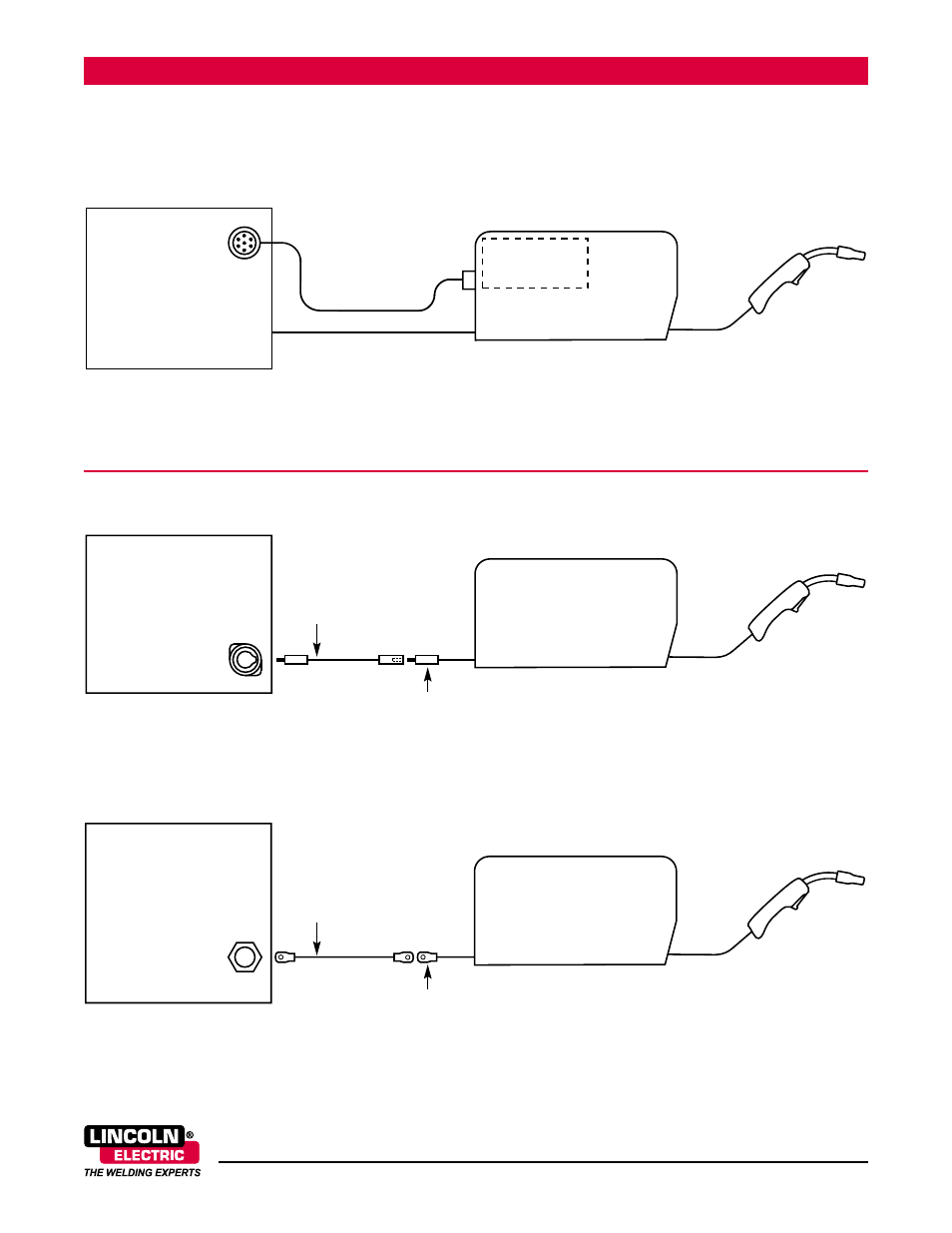

ACROSS THE ARC SET-UP (with Electrode Cold Operation and Remote Voltage Control at LN-25)
WELD POWER CABLE SET-UP
CV-250, CV-300,
CV400-I, CV500-I,
CV-655, V350-PRO,
DC-400, DC-600,
DC-655, Ranger 250,
Ranger 250 LPG,
Ranger 305G,
Ranger 305D,
Commander 300,
Vantage 500,
Air Vantage 500
K624-1
Remote Output
Control Module
Magnum gun and
cable assembly
LN-25 Wire Feeder
K428 model only
14 Pin
For LN-25 K428 Model without Internal Contactor.
(Connections are for current equipment design. Subject to change without notice.)
42 Volt Remote Output Control Systems
Control Cable and Extensions
K1819-10 Wire Feeder Control Cable, 10 ft. (3.0m)
K1797-25 14-pin Extension Control Cable, 25 ft. (7.6m)
K1797-50 14-pin Extension Control Cable, 50 ft. (15.2m)
Weld Power Cables
K1841-25 Twist-Mate to Twist-Mate, 1/0, 350A, 60% duty cycle, 25 ft. (7.6m)
K1841-50 Twist-Mate to Twist-Mate, 2/0, 350A, 60% duty cycle, 50 ft. (15.2m)
Twist-Mate Cable Plugs
K852-70 for 1/0-2/0 cable
K852-95 for 2/0-3/0 cable
Weld Power Cables
K1842-10 Lug to Lug, 3/0, 600A, 60% duty cycle, 10 ft. (3.0m)
K1842-35 Lug to Lug, 3/0, 600A, 60% duty cycle, 35 ft. (10.6m)
K1842-60 Lug to Lug, 3/0, 600A, 60% duty cycle, 60 ft. (18.2m)
K1842-110 Lug to Lug, 4/0, 600A, 60% duty cycle, 110 ft. (33.5m)
Cable Lug
S1119-14 for 1/0-2/0 cable
Weld Power Cable
K1819-10 Wire Feeder
Control Cable
CV-250,
CV-300,
CV400-I,
CV500-I,
V350-PRO
CV-400, CV-655,
DC-400, DC-600,
DC-655, Ranger 250,
Ranger 250 LPG,
Ranger 305G,
Ranger 305D,
Commander 300,
Vantage 500,
Air Vantage 500
Engine Driven Welders
w/Wire Feed Module
Magnum gun and
cable assembly
LN-25 Wire Feeder
K428 model only
Weld Power Cable
Magnum gun and
cable assembly
LN-25 Wire Feeder
K428 model only Weld Power Cable
Twist-Mate Cable Plug
Cable Lug
