NOTE A: Specify length when
ordering input cable assemblies.
See Required Options.

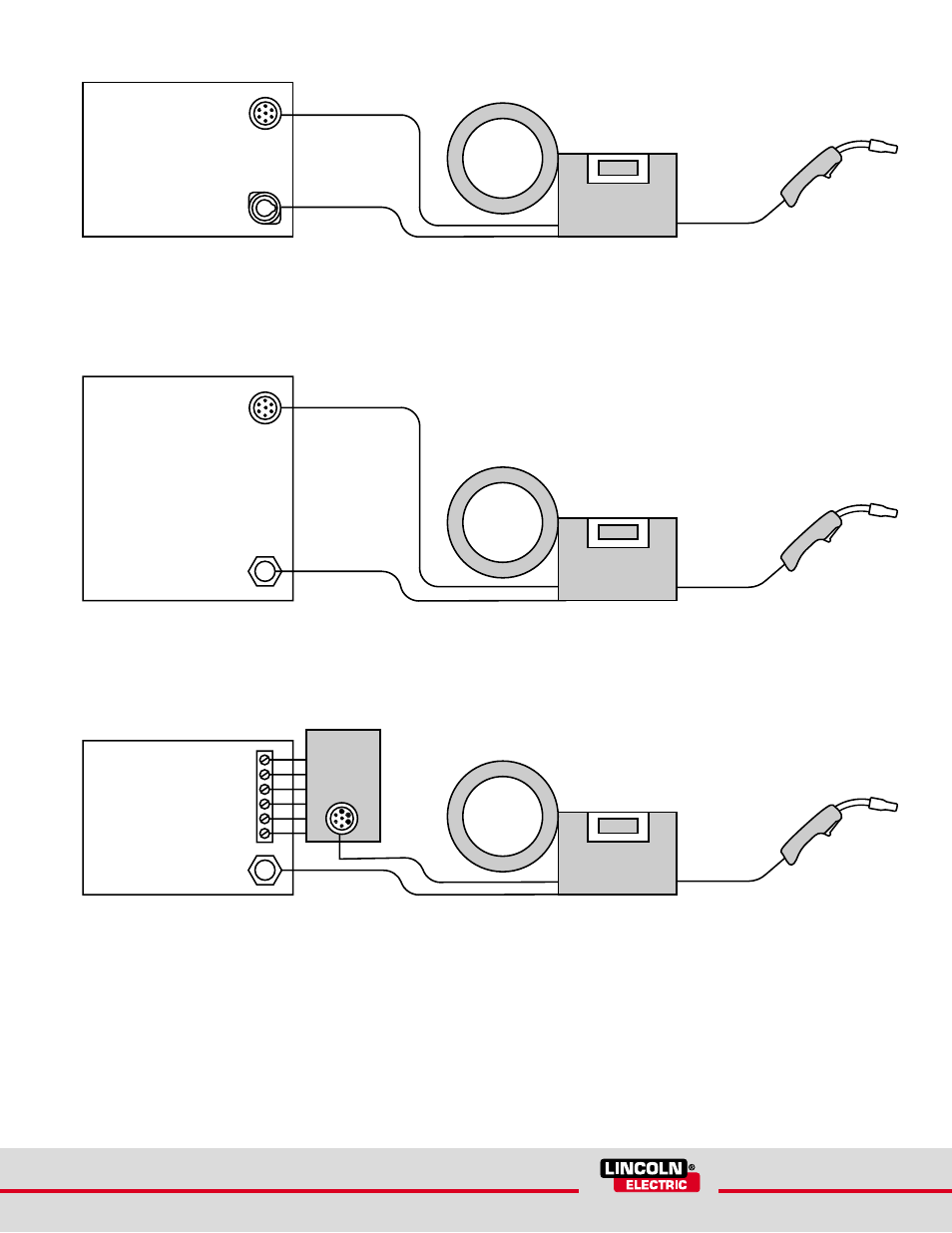

INPUT CABLE ASSEMBLY SELECTION GUIDE
Semiautomatic
Wire Feeder
Semiautomatic
Wire Feeder
Magnum gun and
cable assembly
DC-600 (Below
code 10500)
14 Pin/Stud Input Cable Assemblies
K592 600 amp, 60% duty cycle.
K619 350 amp, 60% duty cycle.
NOTE B: Connections are for current
equipment design. Subject to change
without notice.
14 Pin
Magnum gun and
cable assemblies
Terminal/Stud Input Cable Assemblies
K592 600 amp, 60% duty cycle.
K619 350 amp, 60% duty cycle.
42 Volt Transformer
(K1520-1)
Stud
CV-250
CV-300
V350-PRO
CV400-I
CV500-I
V300-I
Twist-Mate
14 Pin
14 Pin/Twist-Mate™ Input Cable Assemblies
K591 400 amp, 60% duty cycle.
K593 400 amp, 60% duty cycle. Includes gas
and water hoses. 10 ft. (3.0 m) only.
Semiautomatic
Wire Feeder Magnum gun and
cable assembly
CV-400
CV-655
DC-400
DC-600 (Above
code 10500)
DC-655
Ranger 9
Ranger 275
Ranger 300 DLX
Commander 300*
Commander 500
*
Stud
14 pin
*Requires K1597-2: 42 VAC Kit.
