Data Sheet
EHHD015A0A Hammerhead™ Series; DC-DC Converter Power Modules
18-75Vdc Input; 5Vdc, 15.0A, 75W Output
Contact Us
For more information, call us at
USA/Canada:
+1 888 546 3243
, or +1 972 244 9288
Asia-Pacific:
+86.021.54279977*808
Europe, Middle-East and Africa:
+49.89.878067-280
India:
+91.80.28411633
www.ge.com/powerelectronics
April 4, 2013
©2012 General Electric Company. All rights reserved.
Version 1.09
Ordering Information
Please contact your GE Sales Representative for pricing, availability and optional features.
Table 1. Device Codes
Product Codes
Input Voltage
Output
Voltage
Output
Current
On/Off Logic
Connector
Type
Comcodes
EHHD015A0A41Z 24/48V
(18-75Vdc)
5.0V
15A
Negative
Through hole
CC109161485
EHHD015A0A641Z 24/48V
(18-75Vdc)
5.0V
15A
Negative
Through hole
150021782
EHHD015A0A41-HZ 24/48V
(18-75Vdc)
5.0V
15A
Negative
Through hole
CC109161980
EHHD015A0A64Z 24/48V
(18-75Vdc)
5.0V
15A
Positive
Through hole
CC109171402
EHHD015A0A64-18HZ 24/48V
(18-75Vdc)
5.0V
15A
Positive
Through hole
CC109171410
EHHD015A0A41-SZ 24/48V
(18-75Vdc)
5.0V
15A
Negative
Surface mount
CC109161997

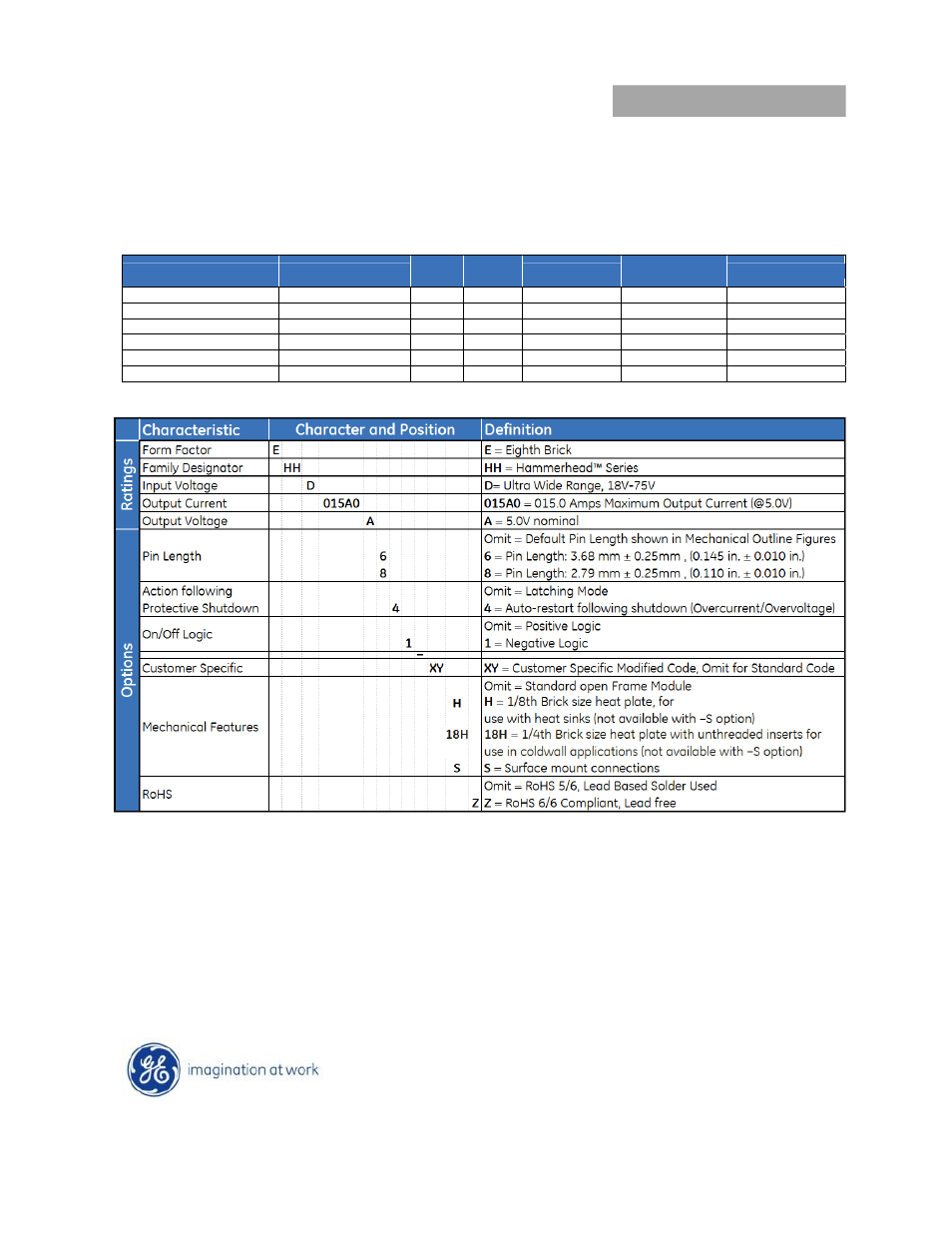

Table 2. Device Coding Scheme and Options
