Connect the supplied AM loop antenna and FM wire antenna.
*
The shape of the connector varies depending on the area code.
Notes
• To prevent noise pickup, keep the AM loop antenna away from the receiver and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as horizontal as possible.
2: Connecting the antennas
AUDIO
OUT
DVD IN
SA-CD/CD
AUDIO IN
DVD
AUDIO IN
VIDEO 2
AUDIO IN
VIDEO 1
AUDIO IN
DIGITAL
OPTICAL
COAXIAL
SA-CD/
CD
IN
AM
ANTENNA
SUB
WOOFER
R
L
*
L
R

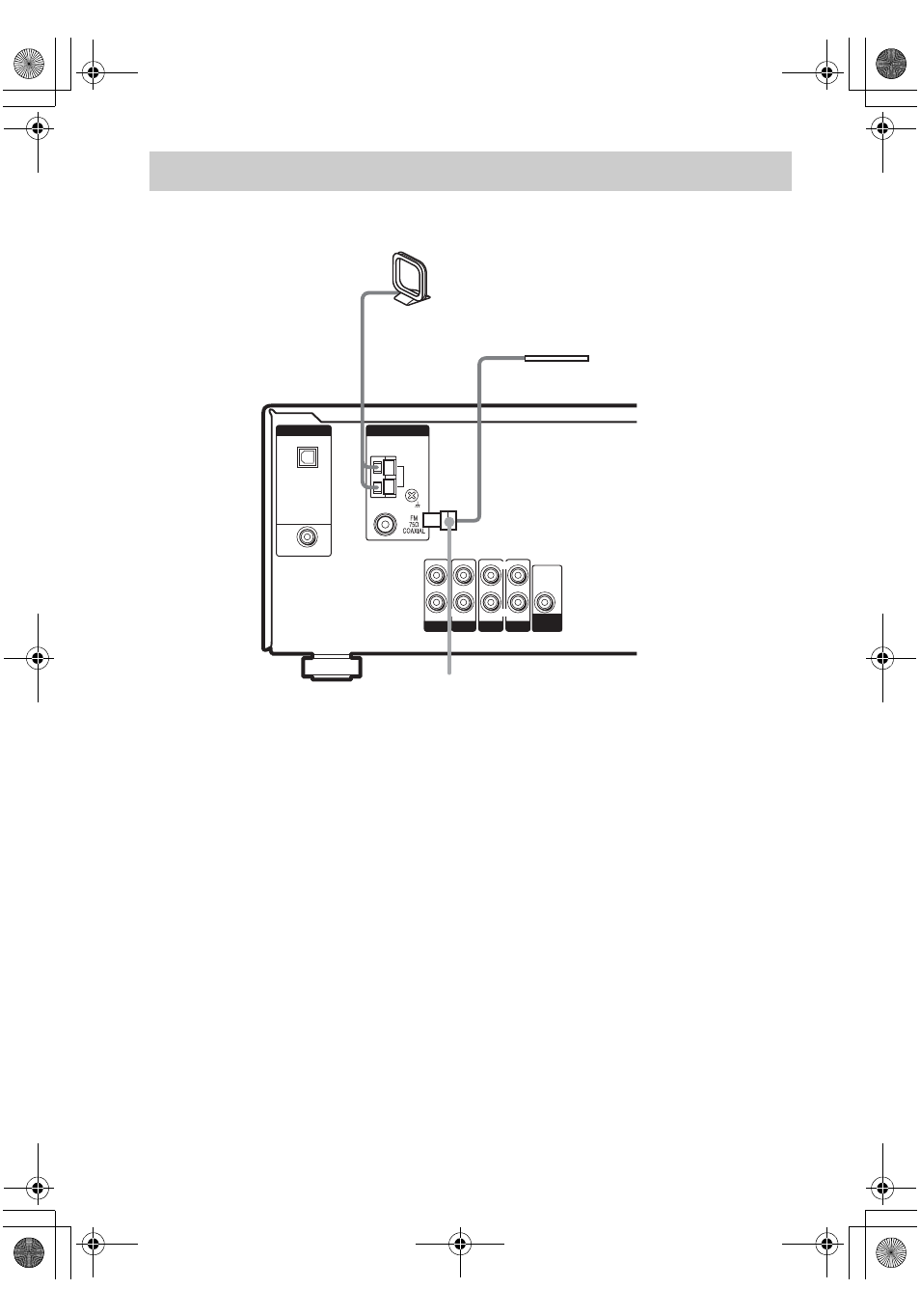

AM loop antenna
(supplied)
FM wire antenna
(supplied)
