Installing the speakers on the
wall
You can install your surround speakers on the
wall.
1

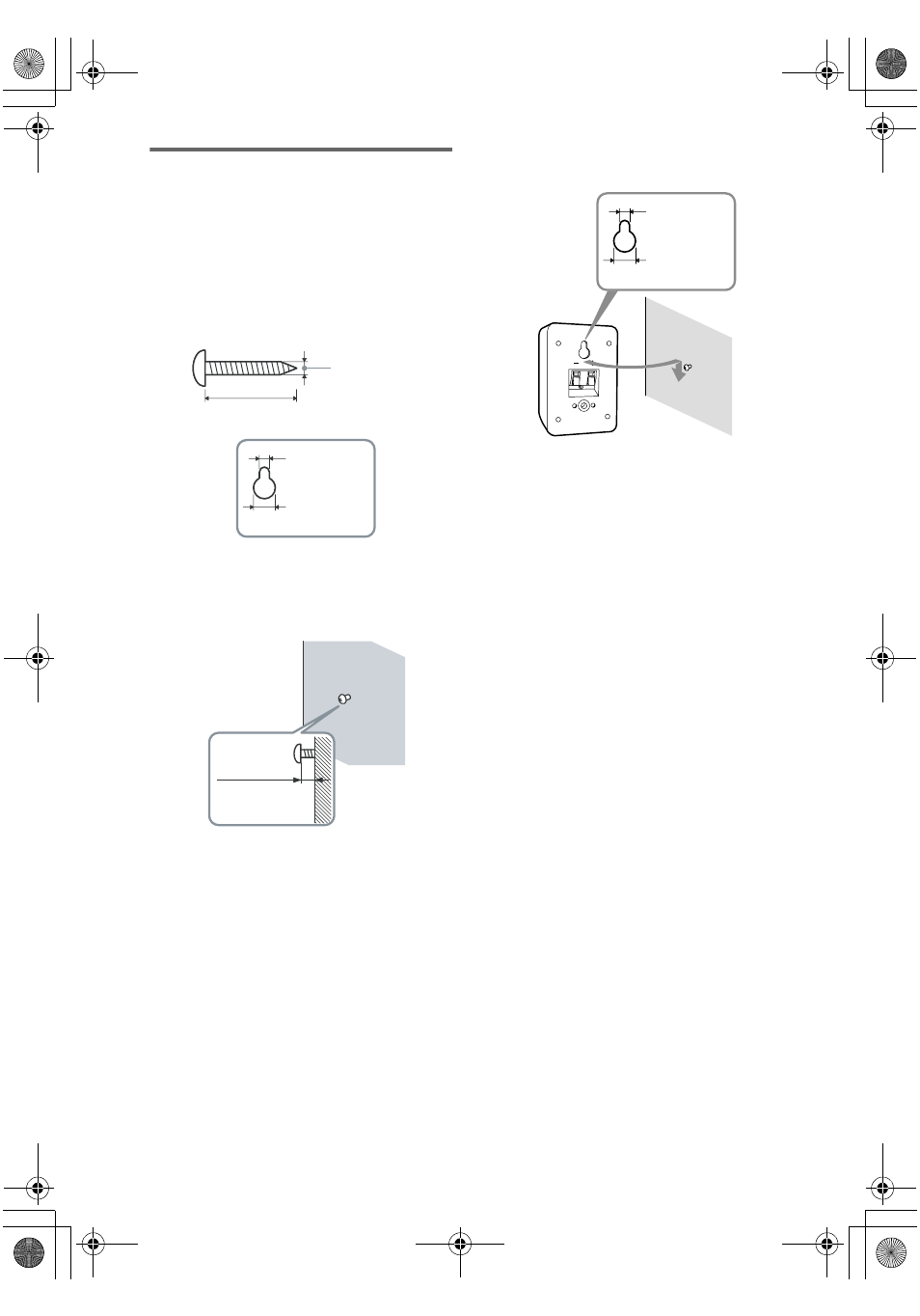

Prepare screws (not supplied) that are
suitable for the hole on the back of
each speaker. See the illustrations
below.
2
Fasten the screws to the wall. The
screws should protrude 5 to 7 mm (7/32
to 9/32 inch).
3
Hang the speakers on the screws.
Notes
• Use screws that are suitable for the wall material and
strength. As a plaster board wall is especially fragile,
attach the screws securely to a beam and fasten them
to the wall. Install the speakers on a vertical and flat
wall where reinforcement is applied.
• Contact a screw shop or installer regarding the wall
material or screws to be used.
• Sony is not responsible for accident or damage
caused by improper installation, insufficient wall
strength or improper screw installation, natural
calamity, etc.
more than 4 mm
(5/32 inch)
more than 25 mm (1 inch)
Hole on the back of the speaker
4.6 mm
(3/16 inch)
10 mm
(13/32 inch)
5 to 7 mm
(7/32 to 9/32 inch)
4.6 mm
(3/16 inch)
10 mm
(13/32 inch)
Hole on the back of the speaker
