7
Accessory Attachment
The accessory attachment rails are designed to accept TruColor HS light control accessories
including louvers, egg crates, barn doors, gel frames and soft boxes. All HS accessories have
a hole that aligns with the locking mechanism at the bottom of the lamp head. To lock an
accessory, pull the lock knob on the back of the fixture while inserting the accessory. Release
when the locking pin is aligned to the hole. Reference the TruColor HS Catalogue for various
light control options.
To change panels, follow these steps:
1. Remove any accessories installed in the accessory slot.
2. Unthread the captive thumbscrews located on the accessory rail on both sides of the
lamphead.

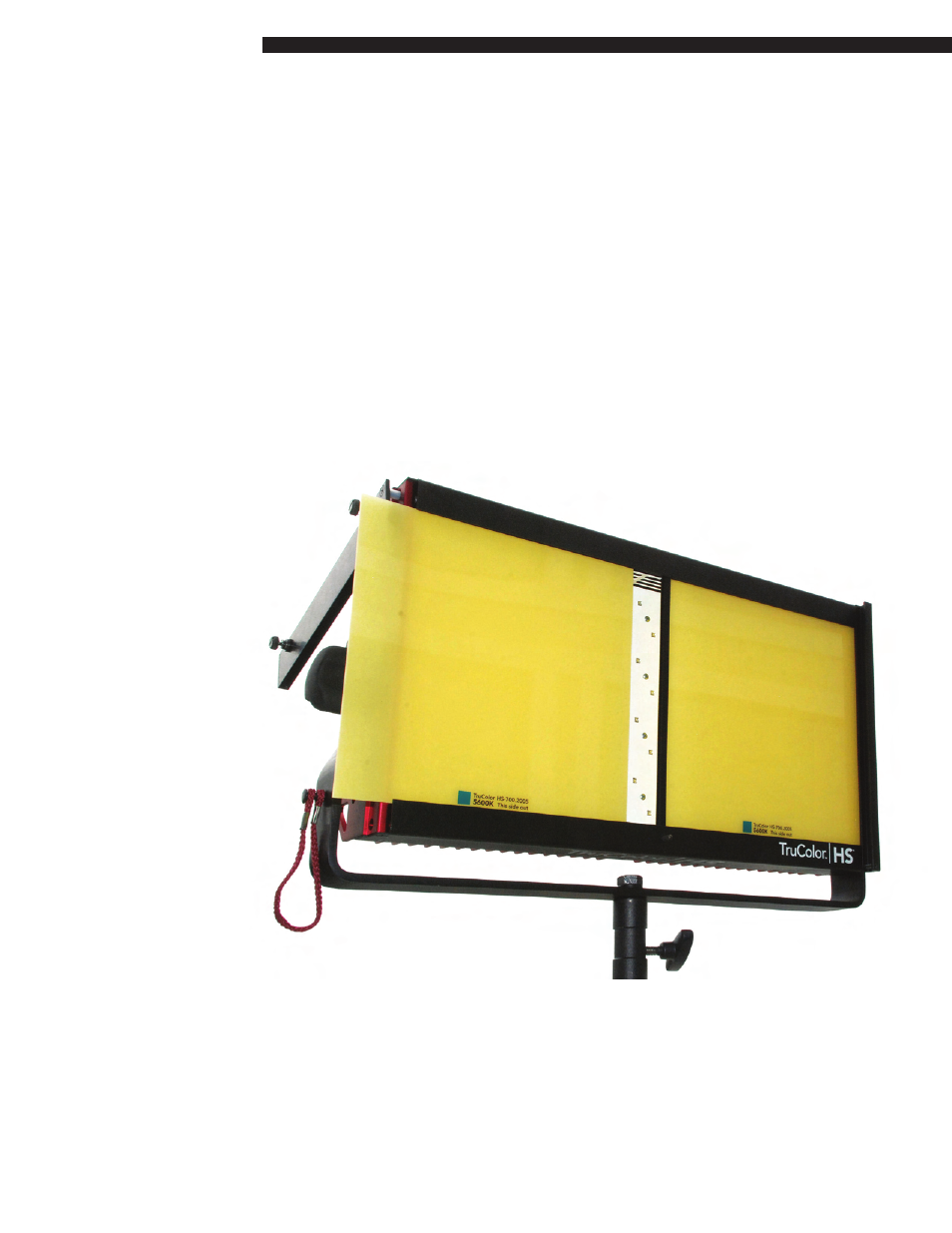

3. Pull out and move accessory rails to the back of the lamphead, as shown. LEDs will
automatically shut off.
4. Remove panels and replace with panels correlating to the desired CCT, making sure that the
panels are well-seated in the slots in the center bar.
5. Avoid touching LEDs and the white reflective material.
6. Re-attach accessory rails.
NOTE: Please make sure that thumbscrews are securely fastened but not overly-
tightened, or fixture may not fully illuminate.
