Installation Instructions
10

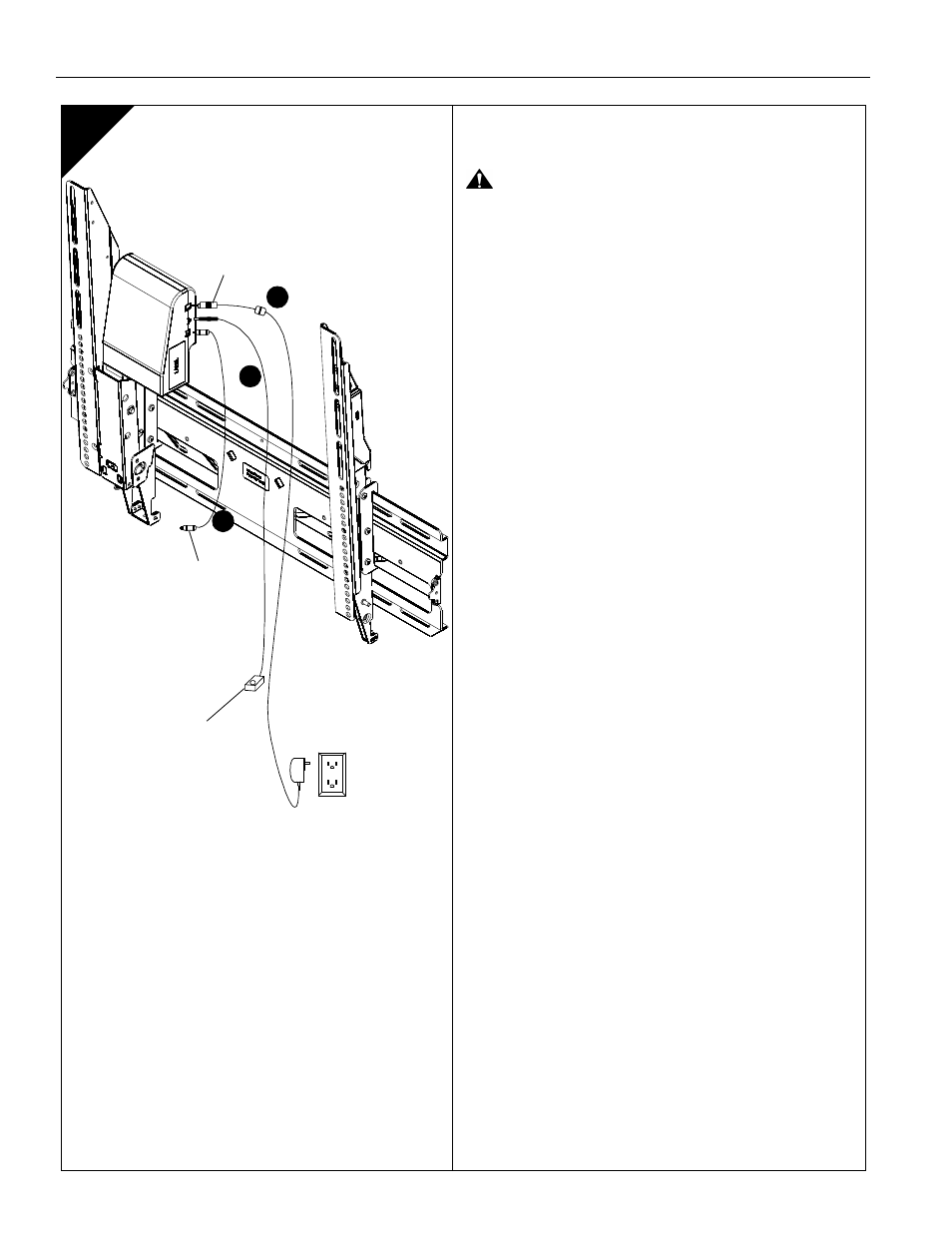

4 Connecting Electrical Components
Electrical Rating: DC 12V; 0.4A
CAUTION: DAMAGE TO CABLES POSSIBLE! Do not run
cables or wires near the moving parts of this mount.
1. Plug the Listed power supply (E) [provided with the mount]
into the CM8 control box and the home’s electrical socket.
2. Plug the IR receiver (F) into the CM8 control box, and attach
the head to bottom side of display.
NOTE: The CM8 detects whether the display is ON or OFF by
detecting whether the LED light (red) from the Digital
Optical Audio Output is ON or OFF. In Auto-Mode the
CM8 tilts the display down when the LED light is ON, and
returns the display to the upright position when the LED
light is OFF.
NOTE: Use an optical splitter (not provided) to send signals to the
control box if the Digital Optical Audio Output of the
display is being used to drive speakers.
3. (Optional) Plug the optical cable (D) into the CM8 control box
and the Digital Optical Audio Output on the back of the display.
NOTE: IR receiver (F) must be visible from front of display.
1
3
2
(E)
(F)
(D)
