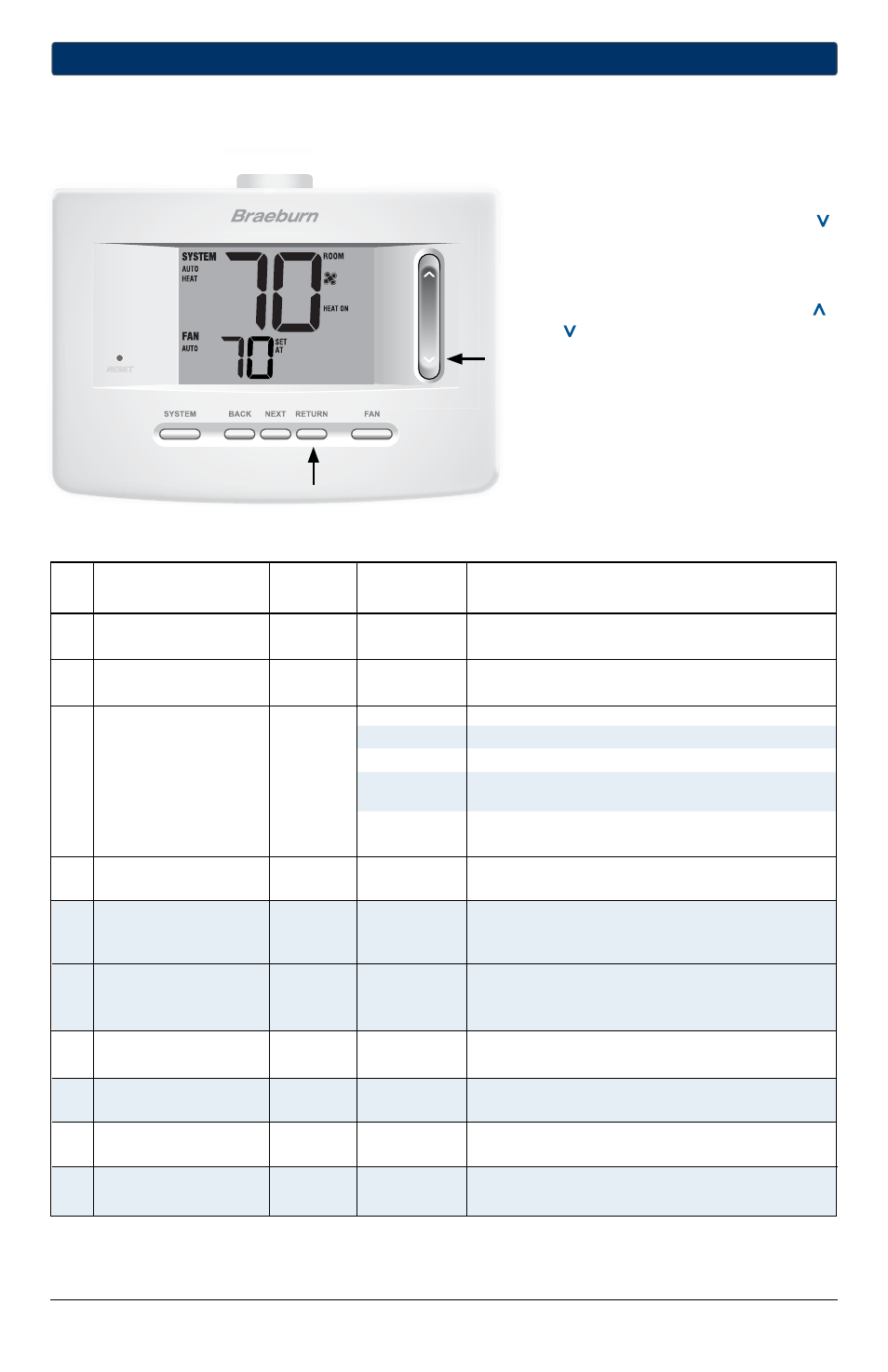

The Installer Settings must be properly configured in order for this thermostat to operate correctly. The Installer
Settings are menu driven. The portion of these settings that do not apply to your setup will be skipped. These
settings are indicated below with comments. More detail on each setting follows this table.

1. Press and hold down the

RETURN

and

buttons for 3 seconds.
2. Release both buttons and the first installer
setting will be displayed.
3. Change settings as required using the
or portion of the SpeedBar

®

.

4. Press

NEXT

or

BACK

to move to the next

or previous setting, press

RETURN

to exit.

No. Installer Setting

Factory

Setting

Comments

(

Notes follow this table)

Default

Options

(More information follows this table)

1 Temperature Scale

F DEG

F DEG

Select for Fahrenheit display

C DEG

Select for Celsius display

2 Auto Changeover

oF AUTO

oF AUTO

Disables Auto Changeover mode

ON AUTO

Enables Auto Changeover mode

11CONV

Select for 1H/1C Conventional system

22CONV

Select for 2H/2C Conventional system

3 System Type

11CONV

11HP

Select for 1H/1C Heat Pump system

22HP

Select for 2H/2C Heat Pump system

32HP

Select for 3H/2C Heat Pump system

1HD

Select for Heat Only Hydronic system

11HD

Select for Hydronic Heat/1C system

4 1st Stage Differential

0.5 DIF1

0.5, 1.0 or

Select a 1st stage temperature differential of .5°,

2.0 DIF1

1° or 2° F (0.2°, 0.5° or 1° C)

5 2nd Stage Differential

2.0 DIF2

1.0, 2.0, 3.0, Select a 2nd stage temperature differential of 1°,

[note 1]

4.0, 5.0 or 2°, 3°, 4°, 5° or 6° F (0.5°, 1°, 1.5°, 2°, 2.5° or 3° C)

6.0 DIF2

6 3rd Stage Differential

2.0 DIF3

1.0, 2.0, 3.0, Select a 3rd stage temperature differential of 1°, 2°,

[note 1]

4.0, 5.0 or 3°, 4°, 5° or 6° F (0.5°, 1°, 1.5°, 2°, 2.5° or 3° C)

6.0 DIF3

7 1st Stage Fan Control

HG FAN 1

HG FAN 1

Select for 1st stage Gas heating

[note 2]

HE FAN 1

Select for 1st stage Electric heating

8 Emergency Heat]

HE EMER

HE EMER

Select for Electric Emergency Heat

Fan Control

[note 3]

HG EMER

Select for Gas Emergency Heat

9 Reversing Valve

REVO

REVO

Select for cool active Reversing Valve (O terminal)

(O/B Terminal)

[note 4]

REVB

Select for heat active Reversing Valve (B terminal)

10 Fossil Fuel

AE AUX

AE AUX

Select for Electric Auxiliary heat (with compressor)

Backup Heat

[note 3]

AG AUX

Select for Gas Auxiliary heat (without compressor)

4 Installer Settings

9 Installer Guide

NOTE: Shaded areas below do not apply to the 3020.
