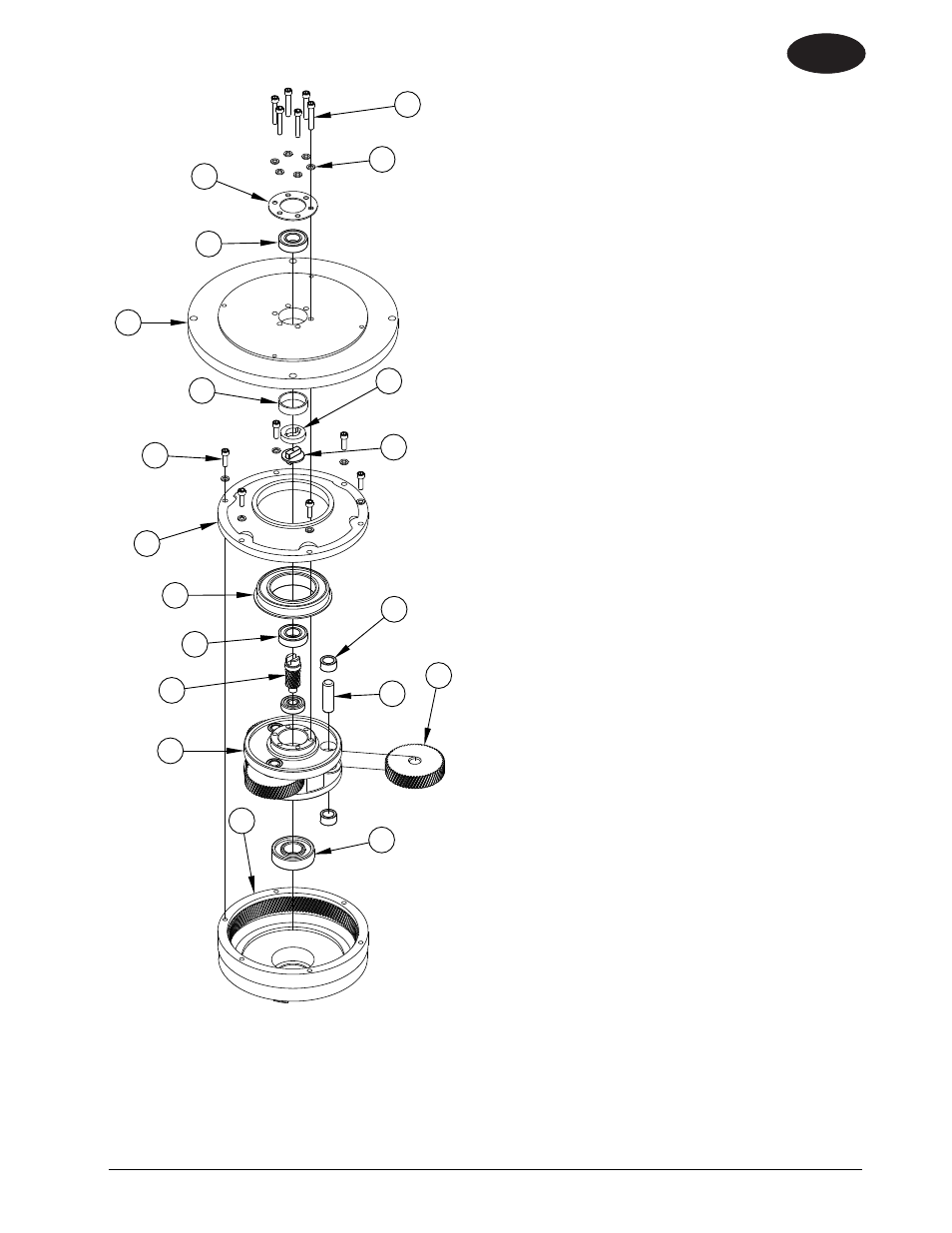

GEARBOX ASSEMBLY
Item Ref. No. Qty Description
50979A 1 Gearbox 10 To 1 Sander
1 962966 6 Screw, Socket Hd. Cap
2 980650 6 Washer, Lock
3 56922A 1 Retainer, Bearing
4 902606 3 Bearing, Ball
5 58520A 1 Spacer, Sleeve
6 N/A 1 Endshield
7 962794 6 Screw 10-24” x 1”
8 N/A 1 Cover, Housing
9 902736 1 Bearing
10 58314A 1 Retainer
11 69195A 1 Coupling
12 58313A 1 Gear, Pinion
13 902737 6 Bearing, Needle
14 N/A 1 Cage
15 54408A 3 Gear, Idler
16 58312A 3 Shaft
17 902654 1 Bearing, Ball
18 54856A 1 Housing, Drive
1
2
3
4
5
6
7
8
9
10
11
4
12
13
14
15
16
17
18
