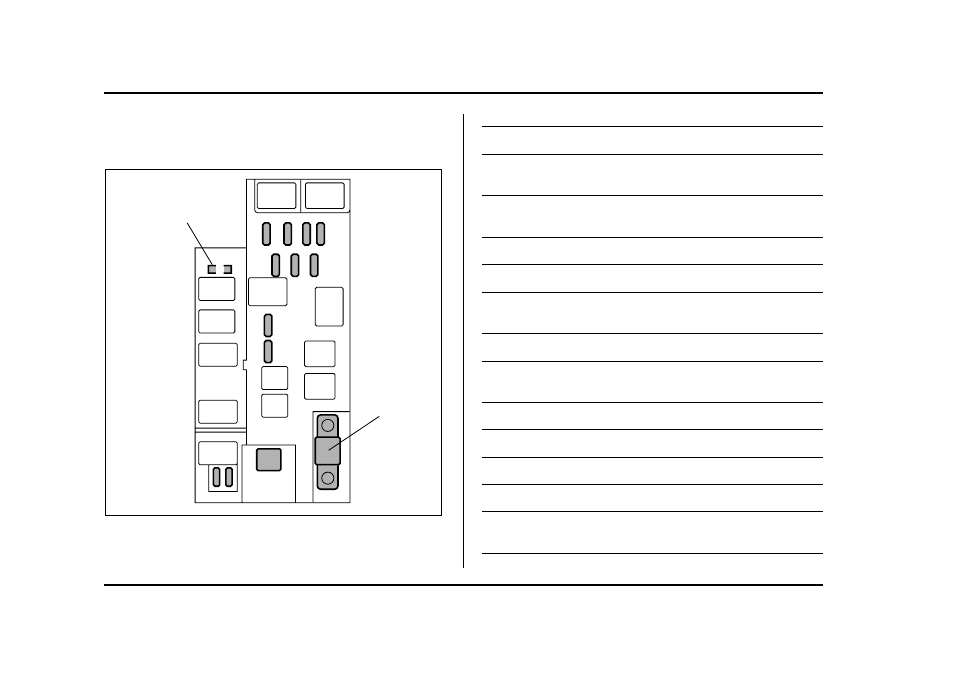

Fuse panel located in the engine com-
partment
A) FWD socket (AT models except Turbo)
B) Main fuse
A
1 2
3
B
4
5
6
7
8
9 10 11 12
HSC002BB
Fuse panel
Fuse rating
Circuit
1
20A
"
Radiator cooling fan
(Main)
2
20A
"
Radiator cooling fan
(Sub)
3
30A
"
ABS motor
4
20A
"
Rear window defogger
5
15A
"
Hazard warning flasher
"
Horn
6
15A
"
Turn signal lights
7
10A
"
Automatic transmis-
sion control unit
8
10A
"
Alternator
9
15A
"
Headlight (right side)
10
15A
"
Headlight (left side)
11
20A
"
Lighting switch
12
15A
"
Clock
"
Interior light
