Alto Professional Live 802 - Manual (Page 7)

7

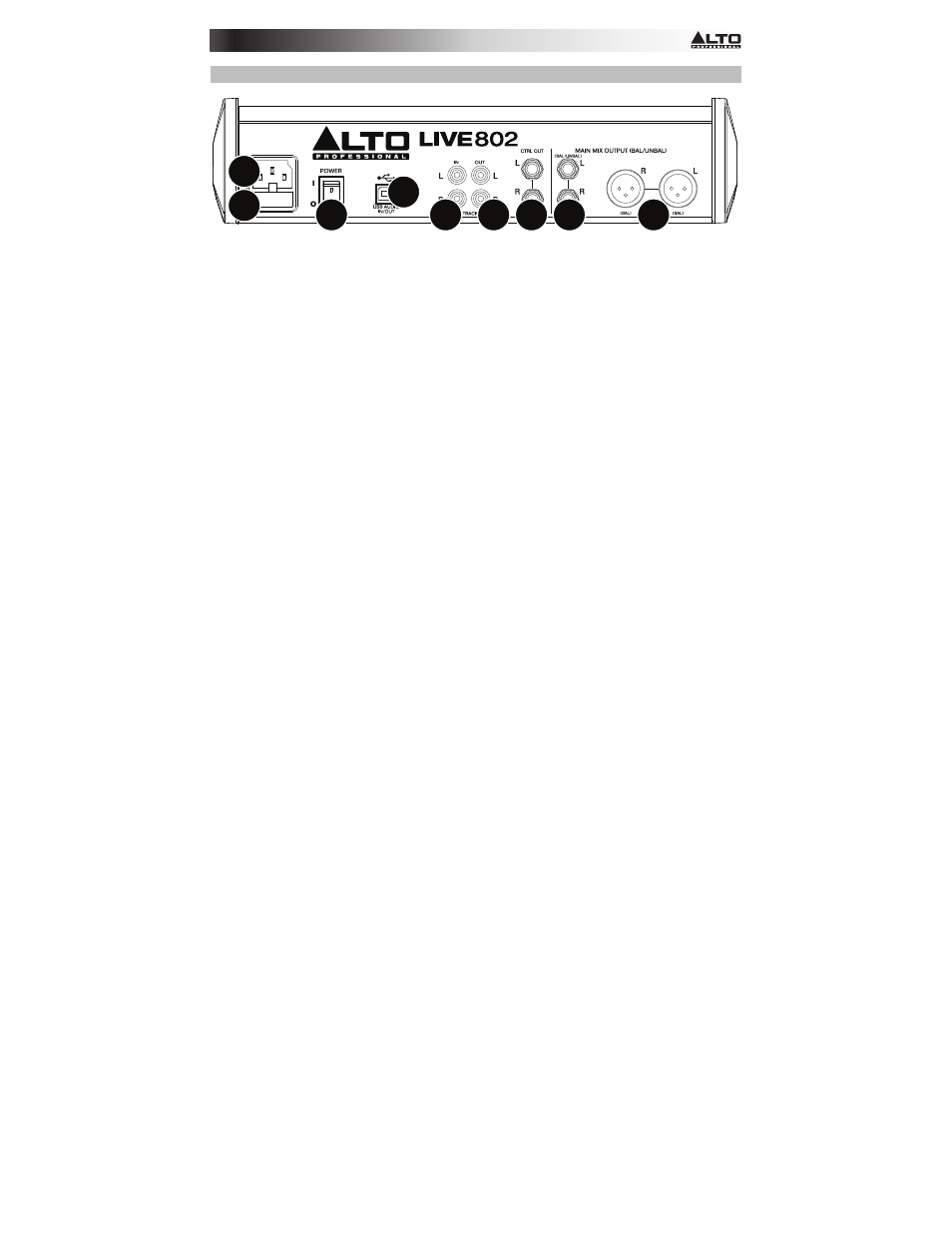

Rear Panel
1
2
3 4 4 5
6
7 8
1.
Power In: Use the included power cable to connect the mixer to a power outlet. While
the power is switched off, connect the power cable into the mixer first, then connect the
power cable to a power outlet.
2. Fuse Cover: If the fuse is broken, use a screwdriver or other tool to lift this tab, and
replace the fuse with a fuse with the same rating (printed just above the Power In). Using
a fuse with an incorrect rating can damage the unit and/or fuse.
3. Power Switch: Powers the mixer on and off. Turn on the mixer only after connecting all
of your input devices but before turning on your amplifiers. Turn off amplifiers before you
turn off the mixer.
4. Main Mix Outputs: Use standard XLR or 1/4" cables to connect either pair of these
outputs to your loudspeakers or amplifier system. Use the Main Fader to control the level
of these outputs.
5. Control Room Outputs (Ctrl Out): Use standard 1/4" cables to connect these outputs to
your control room (booth) monitors or amplifier system.
6. USB Port: Use a standard USB cable to connect this USB port to a computer. The mixer
can send or receive audio to or from your computer through this connection.
• When sending audio, the main mix will be sent from the mixer to your computer.
• When receiving audio, it will be sent from your computer to the Main Mix Outputs
or Control Room Outputs (Ctrl Out), depending on the position of the mixer's USB
In Source button.
7. 2-Track Inputs (2 Track In): Connect these inputs to the outputs of an external sound
source using a standard stereo RCA cable (sold separately). Use the 2 Track In Source
button to send this signal either to the Main Mix Outputs or to the Control Room
Outputs (Ctrl Out).
8. 2-Track Outputs (2 Track Out): Connect these outputs to the inputs of an external
recording device using a standard stereo RCA cable (sold separately).
