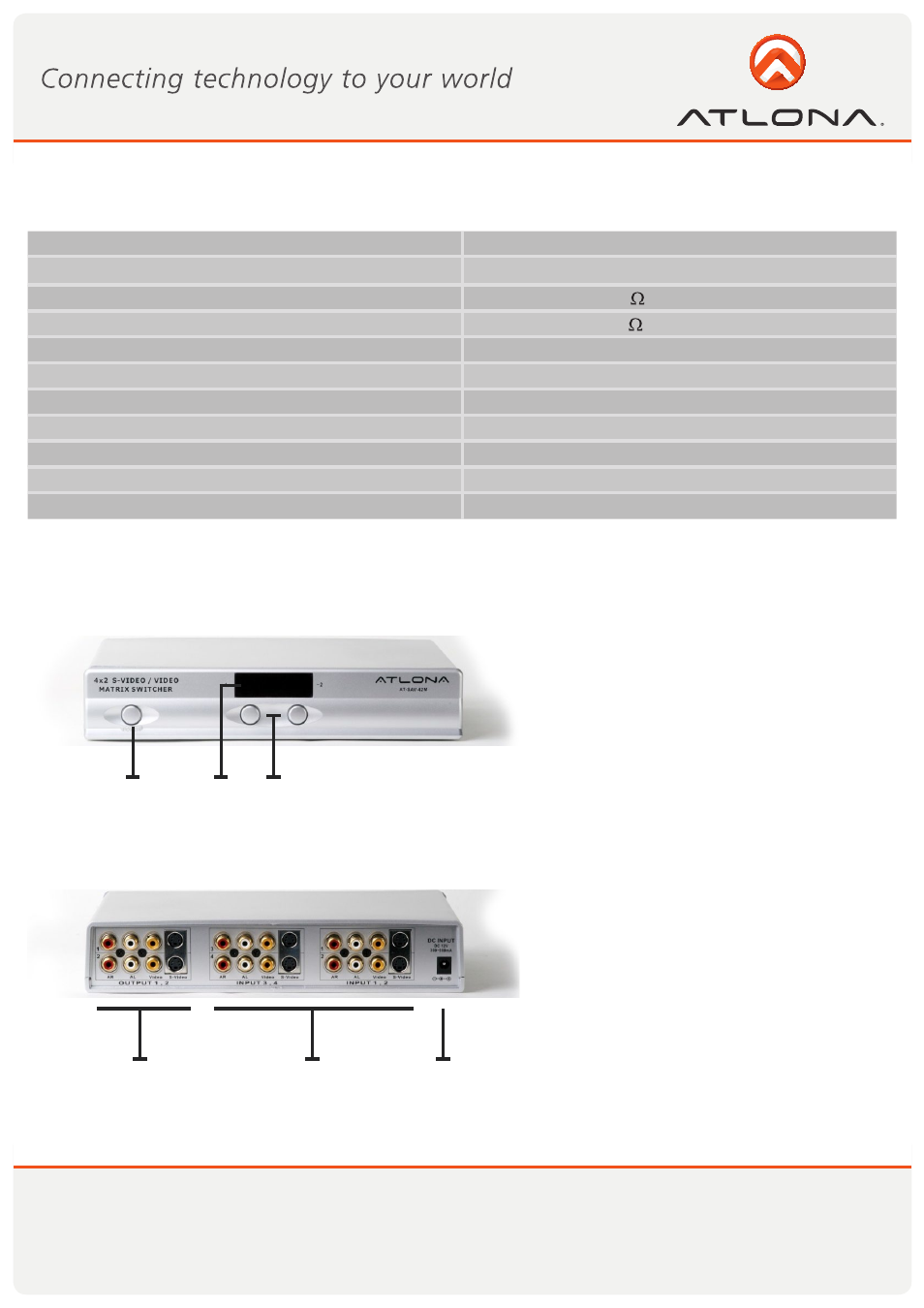

1. Front Panel
1. Power SWITCH: Power Unit ON/OFF
2. IR: IR Sensor
3. Video Selection Buttons: Press for desired
Video Input/Output setting
2. Rear Panel
1. Outputs: 2 x Composite/S-Video/Audio.
2. Inputs: 4 x Composite/S-Video/Audio.
3. Power Input: 12V DC
SPECIFICATIONS
PANEL DESCRIPTIONS
Video Inputs
4 x Composite Video / 4 x S-Video
Video Outputs
2 x Composite Video / 2 x S-Video
Audio Inputs
4x Stereo R/L, 40K
on RCA Connectors
Audio Outputs
2x Stereo R/L, 400
on RCA Connectors
Video Bandwidth
>260MHz
Video Distortion
<1.2db (Standard +/- 3db)
Audio Input impedance
10K Ohms
Channel Isolation
>50db
S/N Ratio
>50db
Power Consumed
500mA Maximum @300mA
Power Source
12 Volts DC
