Input terminal: HD-15 R/G/B/H/V
Input resolution:
Common resolution lists:
VGA@60Hz up to 140Hz refresh rate
SVGA@60Hz up to 120Hz refresh rate
XGA@60Hz up to 85Hz refresh rate
SXGA@60Hz refresh rate
UXGA@60Hz refresh rate
Output terminal:
Composite video RCA,
S-Video mini-din,
PC-Out (pass through) HD-15,
PC- In HD-15,
RGB/YUV-Out HD-15
Output system:
NTSC or PAL TV system
R/G/B/H/V (PC pass through)
R/G/B/Sync Fh=15 KHz, Fv=50/60Hz
Ys/U/V Fh= 15KHz, Fv=50/60Hz

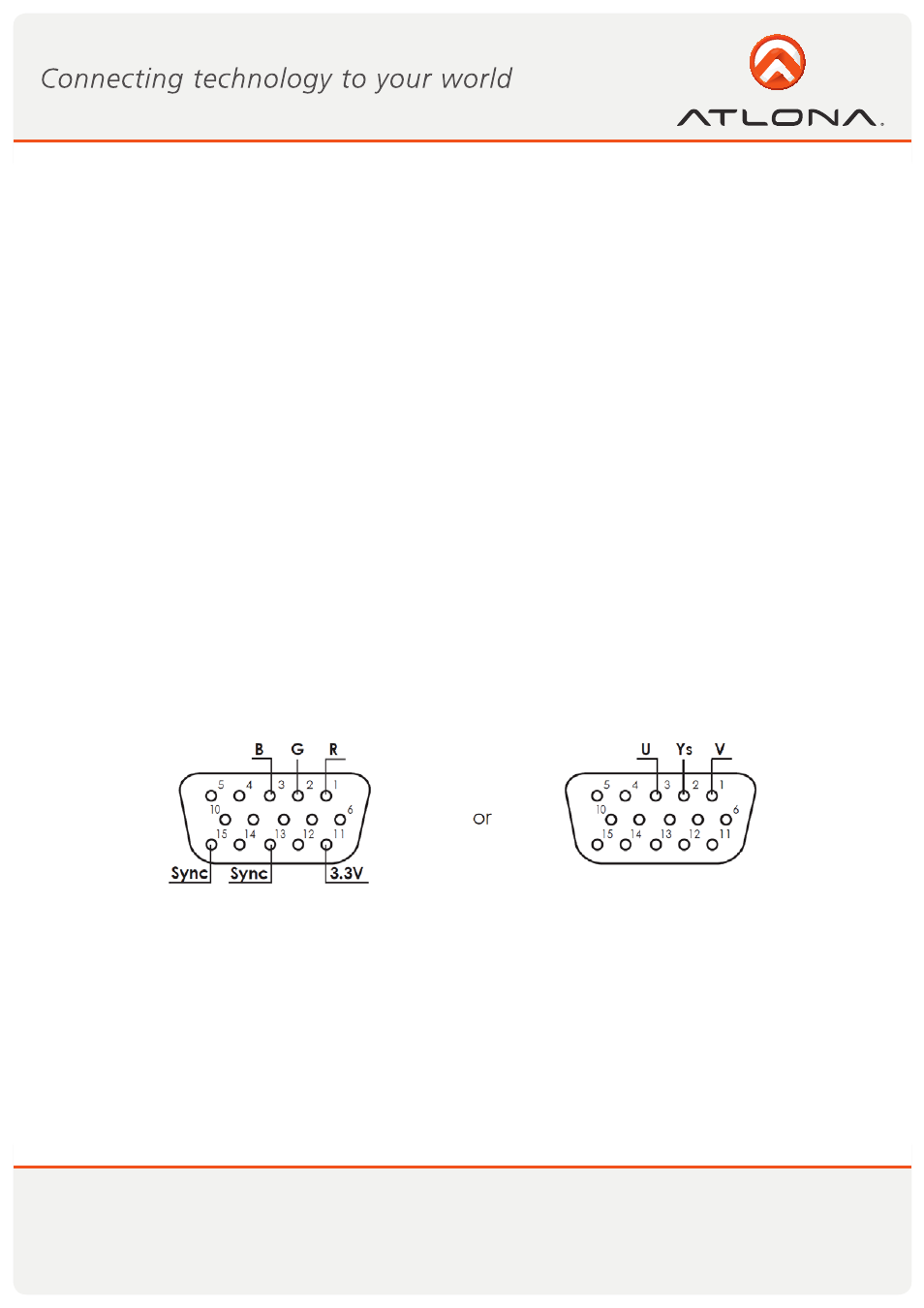

RGB/YUV HD-15 pins definition:
a.
RBG
out
b.
YUV
out
The Sync pin is composite sync(H+V)
Controls: Front panel control, IR remote control, RS-232 control.
Last memory.
Accessories:
HD-15(male) to HD-15(male) VGA cable x 1
1R to 1R video cable x 1
IR remote control x 1
Application software CD x 1
Power: DC 12V 800mA center:positive
Dimensions: 204(W) x 155(D) x 50(H)mm
Weight: 1kg
SPECIFICATIONS
