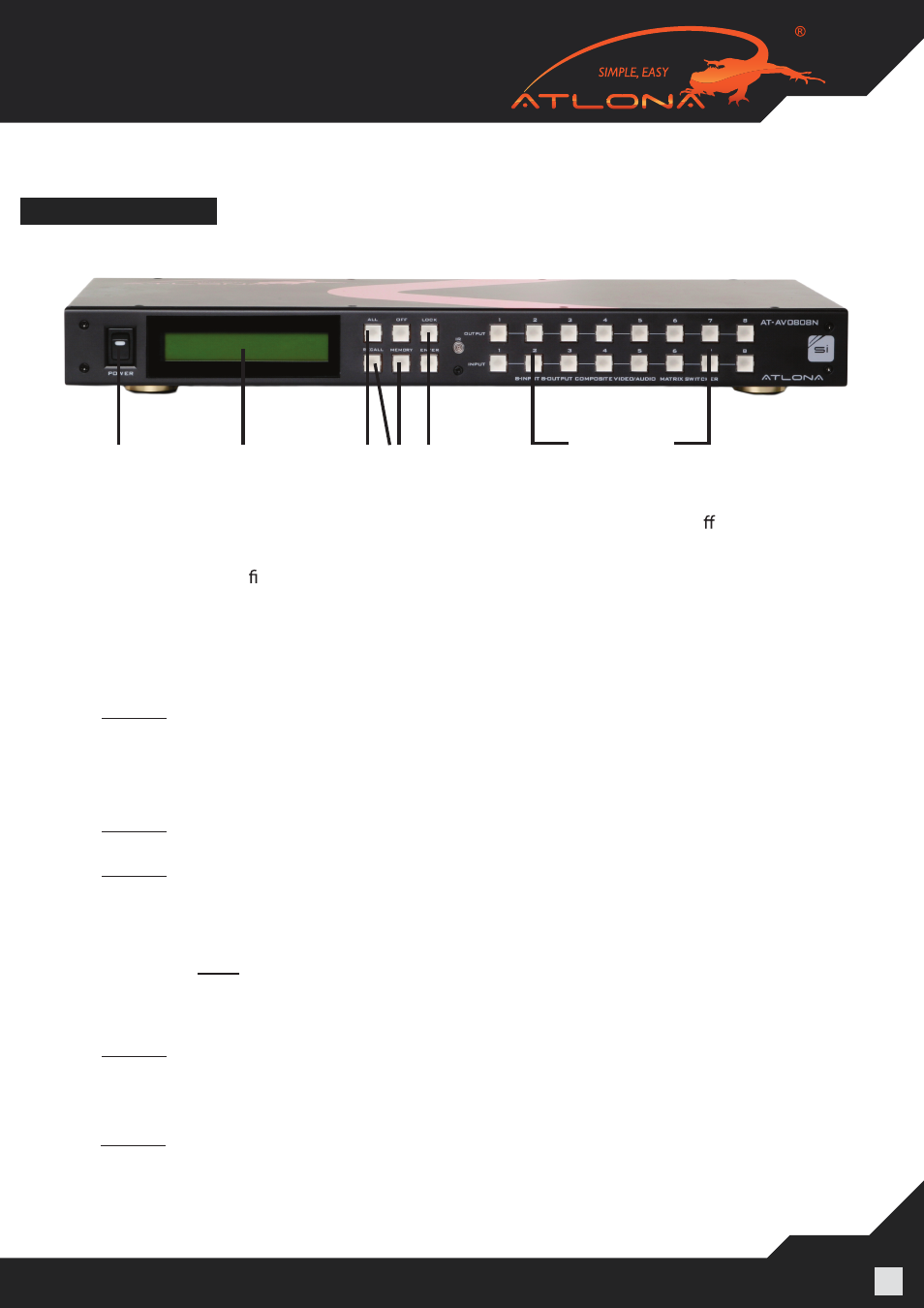

PANEL DESCRIPTIONS:
1. Front Panel
1. Power switch: Press top of power switch to turn on. LED will illuminate red to indicate
the switcher is receiving power. Press bottom of power switch to turn power o .
2. LCD display: Con rmation and status of each key selection is displayed on the LCD
readout.
3. 2 X 1-8 Keypads(bottom input/top output): Used to select individual output/input
channels or to save/recall preset commands.
Example: Select output channel from the top row of 1-8 keys followed by the input channel
from the bottom row of 1-8 keys to associate the two channels.
4. ALL Key: To transfer an input channel to all output channels or to switch off all input
channels.
Example: To transfer an input to all outputs: Select the ALL key, then select an input followed by the
the ENTER key.
Example: To switch off ALL input channels: Select OFF then select ALL followed by the
ENTER key.
1 2 4 6 5 3
5. LOCK Key: Press and hold the LOCK key for 3 seconds to lockout all keypad functionality.
6. Memory/Recall Keys: Used to store or recall presets for inputs and outputs.
Example: Select the desired output and input combination for each audio/video
zone you wish to store as a preset. Select the MEMORY key followed by
a preset location from the bottom row of numbered keys. Selecting
the ENTER key will save the preset memory position.
Example: To recall a preset select the RECALL key, then the number of the
memory preset followed by the ENTER key.
Pressing the LOCK key again will restore keypad functionality.
