PC RS232 Control
up to 8 DVD’s
up to 8 TV’s
TV’
IR Extender
1.

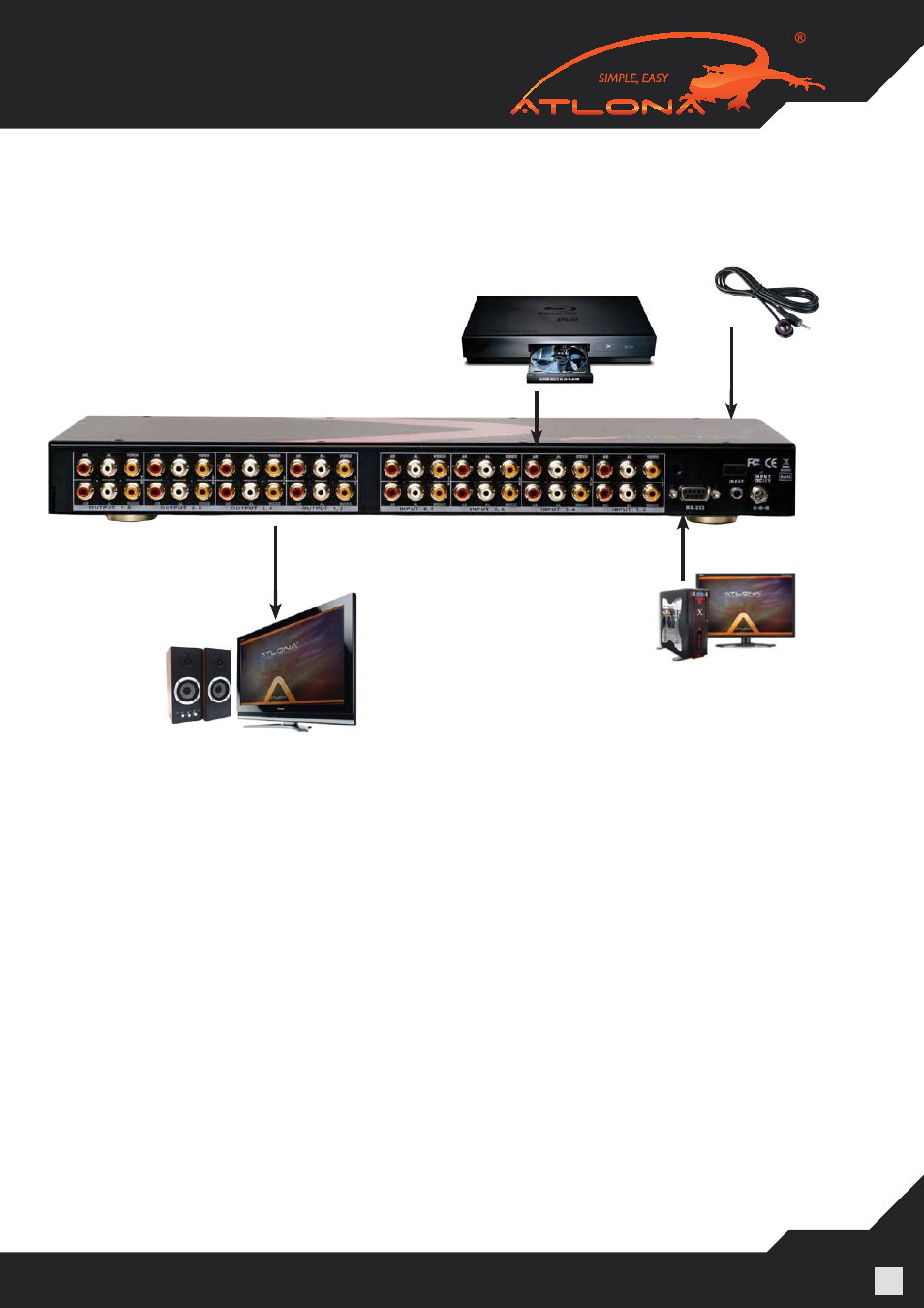

Connect the output of a composite video source such as a VCR or DVD to the
composite video and L/R audio inputs of the AT-AV0808N.
2.
Connect the composite video output to the composite input of your display.
3.
Connect the audio L/R stereo outputs to your display or amplifiers input.
4.
If utilizing RS-232 for control, hook up the supplied RS-232 cable from the AT-
AV0808N to your computer or touch panel display.
5.
If utilizing an IR Extender, connect the supplied extender kit from the IR EXT port
on the back of the AT-AV0808N to the receiver.
CONNECTION AND OPERATION
.%DFN Panel
