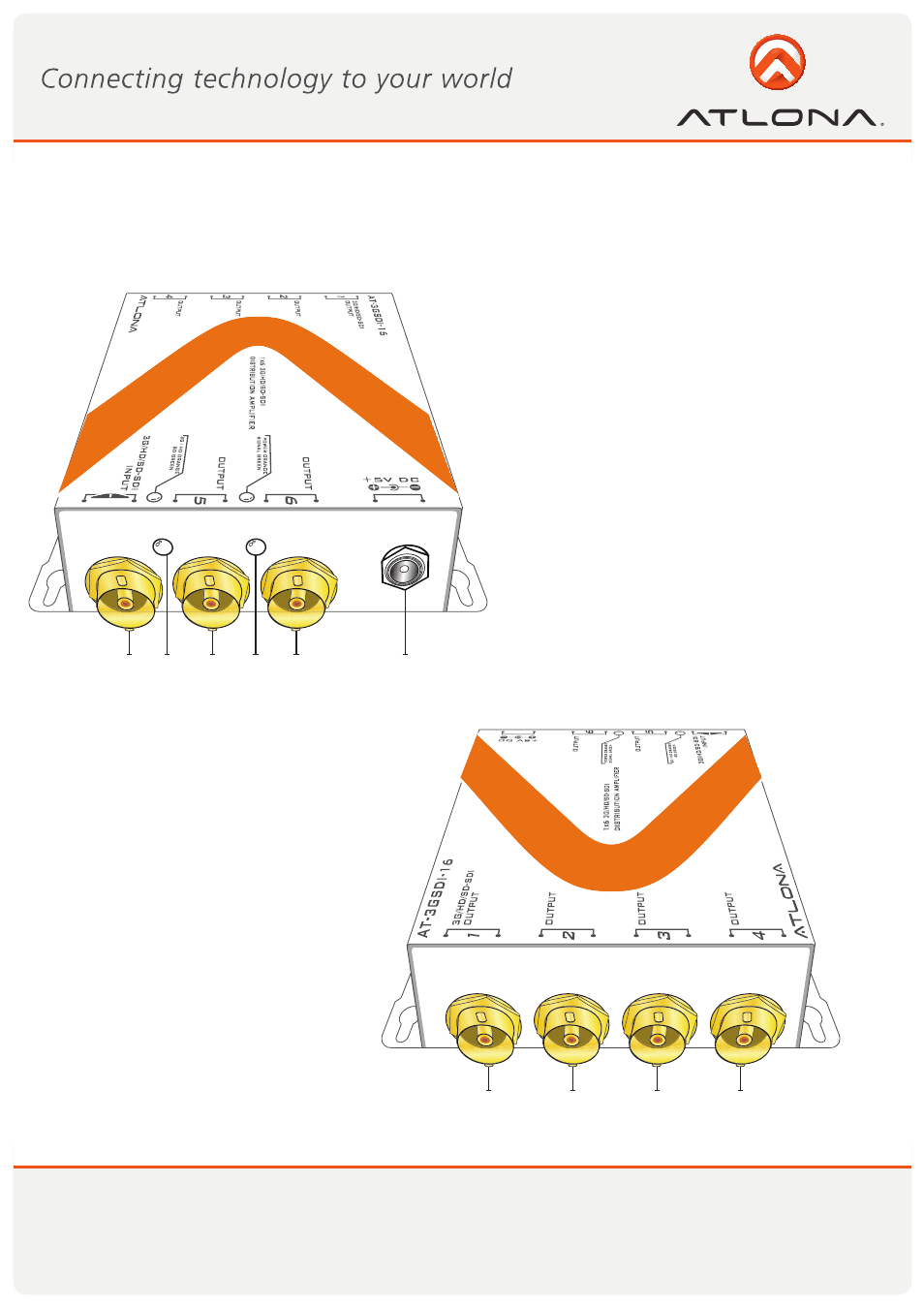

5.1. Transmitting Module
5.1.1. Front Panel
1. 3G/HD/SD-SDI input
2. LED — Orange: 3G/HD-SDI Green: SD-SDI3.
3. 3G/HD/SD-SDI output 5
4. LED — Orange: Power status Green: Signal status
5. 3G/HD/SD-SDI output 6
6. 5V DC power jack
5.1.2. Rear Panel
1. 3G/HD/SD-SDI output 1
2. 3G/HD/SD-SDI output 2
3. 3G/HD/SD-SDI output 3
4. 3G/HD/SD-SDI output 4
PANEL DESCRIPTIONS
1 2 3 4 5 6
1 2 3 4
