SDI monitor SDI monitor SDI monitor

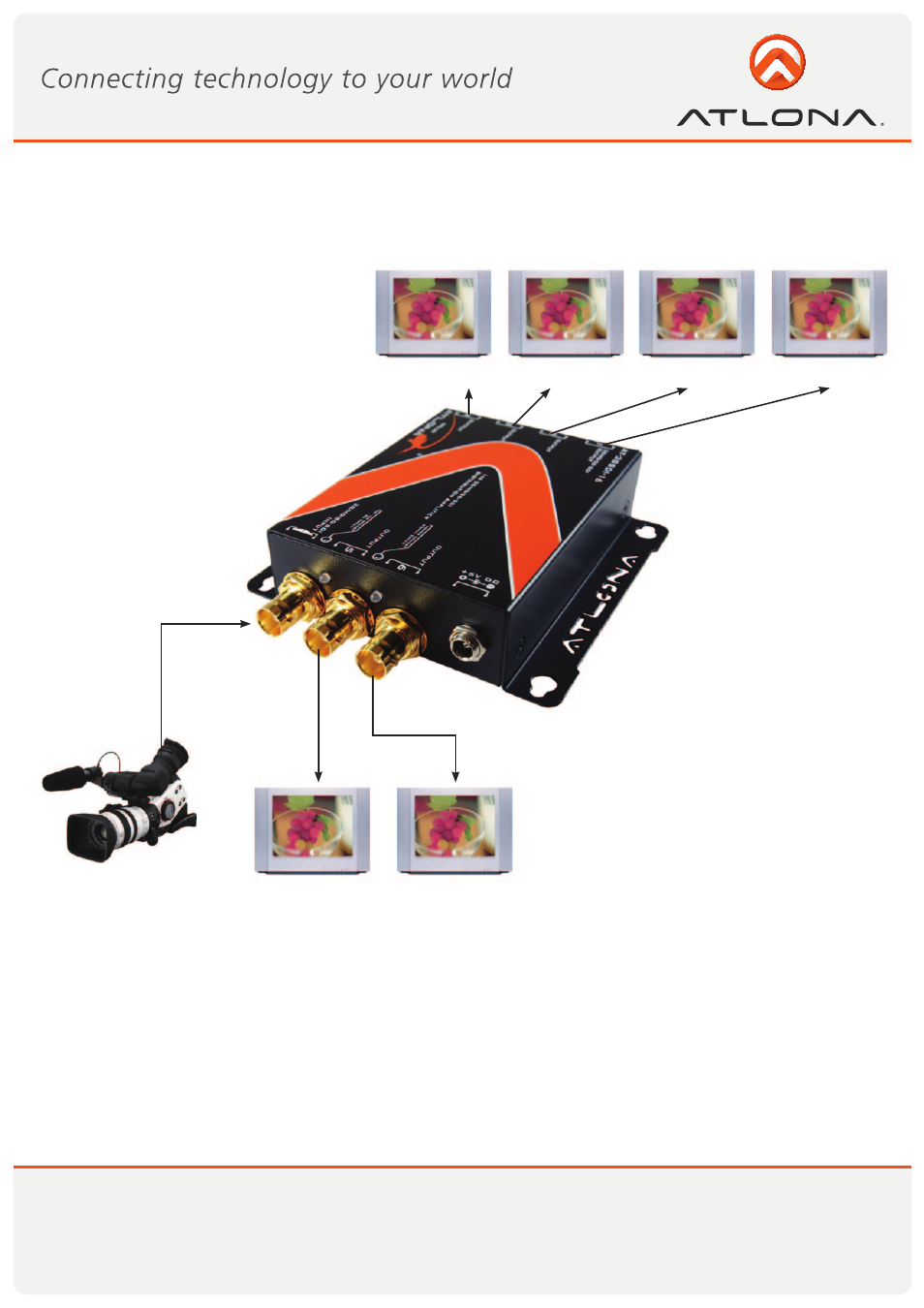

CONNECTION DIAGRAM
INSTALLATION:
1. Connect a camera or other SDI devices to 3G/HD/SD-SDI input.
2. Connect SDI displays or devices to 3G/HD/SD-SDI outputs.
3. Screw the 5V power supply unit to the locking power jack.
SDI monitor
SDI monitor SDI monitor
AT-3GSDI-16
SDI camera
