PANEL DESCRIPTIONS:

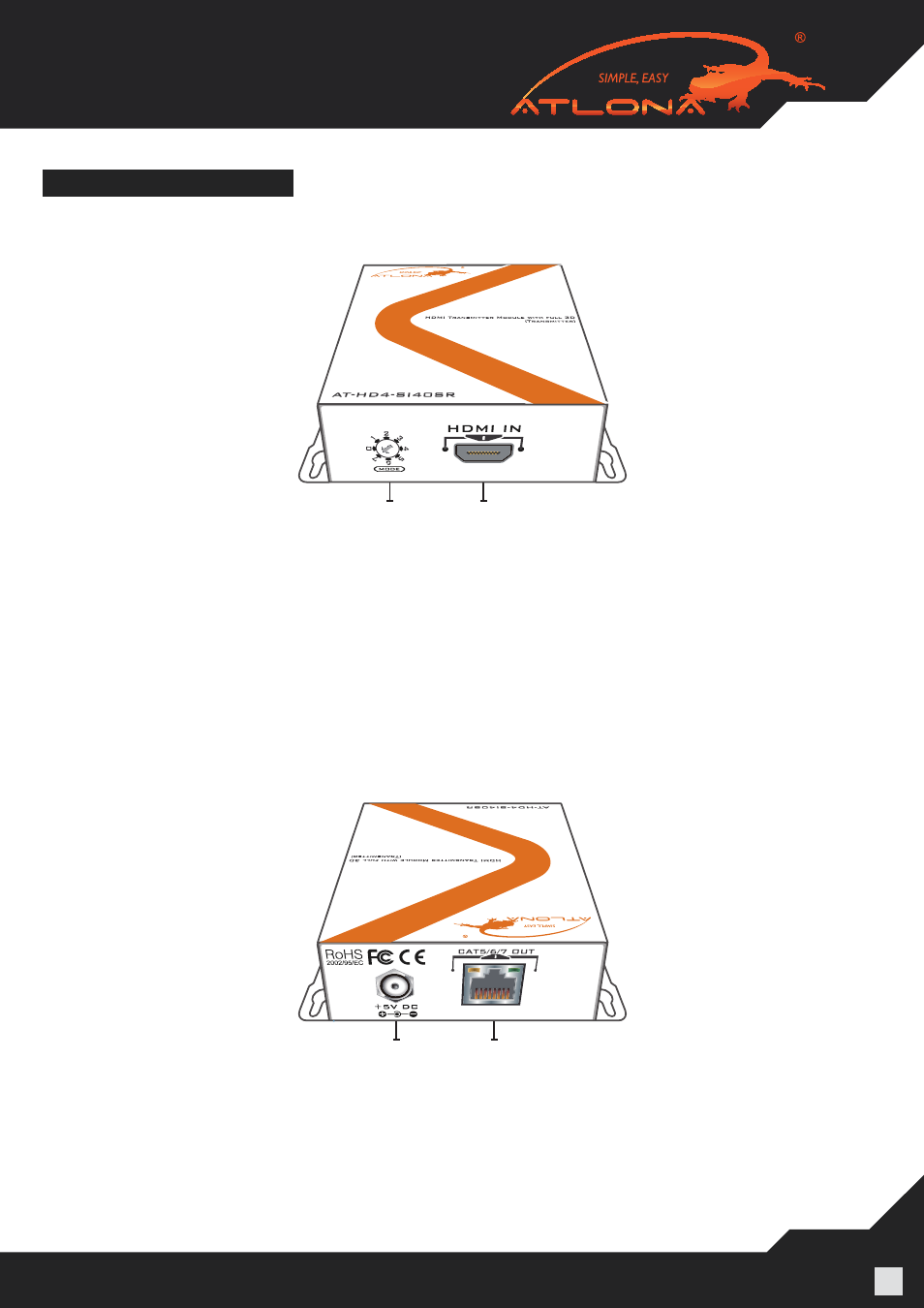

5.1. Transmitting Module
5.1.1. Front Panel
5.1.2. Rear Panel
1. MODE: 0 - EDID Full-HD (up to 1080p@60) -24bit 2D video & 7.1ch audio – long distance
1 - EDID Full-HD (up to 1080p@60) – 24-bit 2D video & 2ch audio – long distamce
2 - EDID Full-HD (1080p@60) - 36bit 2D video & 7.1ch audio
3 - EDID Full-HD (1080p@60) - 36bit 2D video & 2ch audio
4 - EDID Full-HD (1080p@60) - 36bit 3D video & 7.1ch audio
5 - EDID HD (1080p@30)(1080i@50/60)(720p@50/60) - 24bit 2D video & 2ch audio
6 - EDID Full-HD (1080p@60) - 36bit 3D video & 2ch audio
7 - EDID learning mode
2. HDMI IN: Connects to a HDMI
TM
source with a HDMI
TM
male-male cable
1. +5V DC: Connect to 5V DC power supply.
2. CAT5/6/7 OUT: Plug in a Cat-5/5e/6/7 cable that needs to be linked to the Transmitting module.
