6

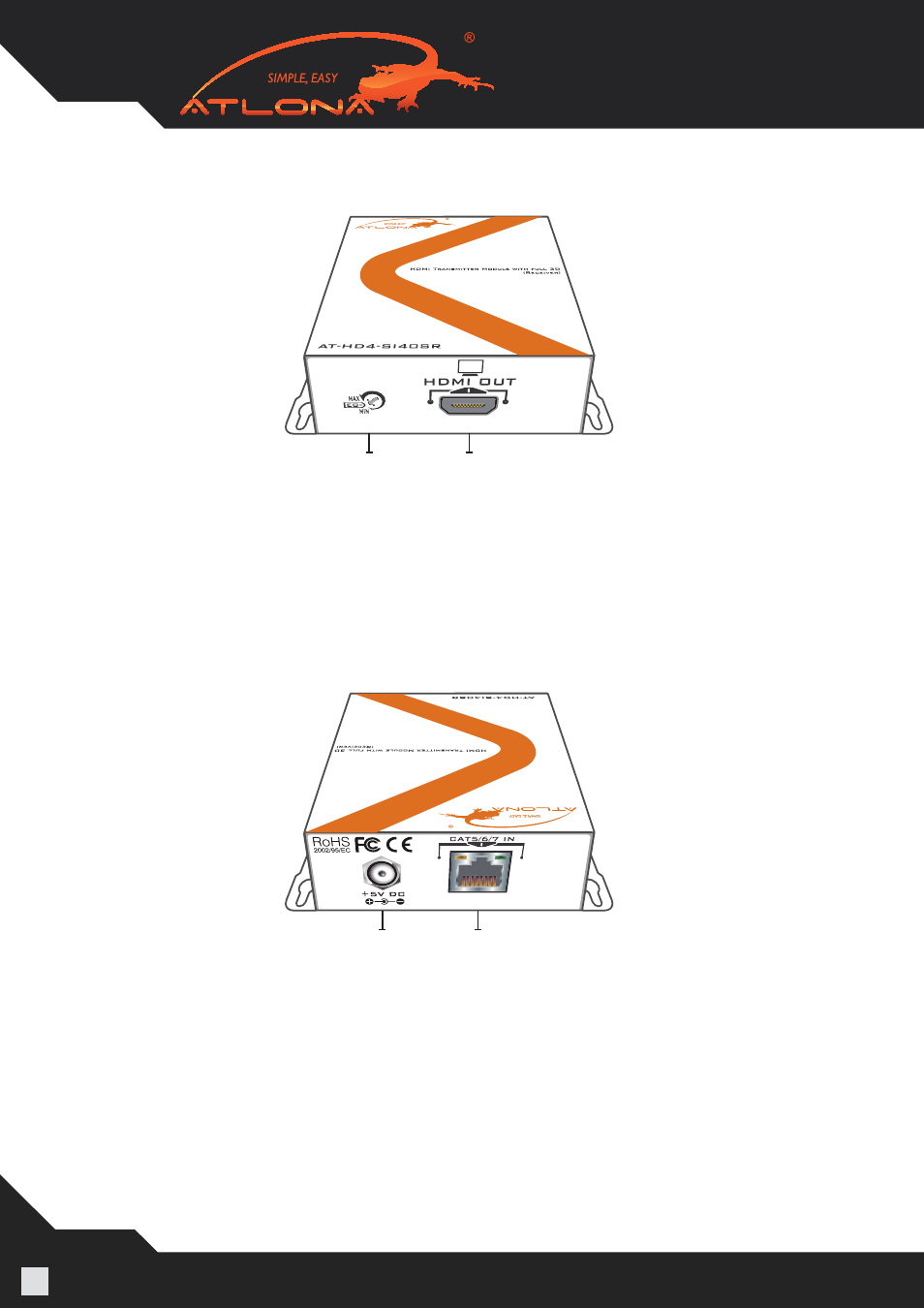

5.2.2. Rear Panel
5.2. Receiving Module
5.2.1. Front Panel
1. EQ: Adjust the 8-level equalization control to the received HDMI TM signals. The HDMI TM signal level
varies from MAX (strongest) to MIN (weakest) for respective transmission length from longest possible range
to short distance. Please adjust the signal level from MIN to MAX and stop turning the rotary switch whenever
the audio/video is playing normally.
2. HDMI OUT: Connect to HDMI TM display with a HDMI TM male-male cable.
1. +5V DC: Connect to 5V DC power supply.
2. CAT5/6/7 IN: Plug in a Cat-5/5e/6/7 cable that needs to be linked to the Receiving module.
1 2
1 2
