3.3.- Dimensions

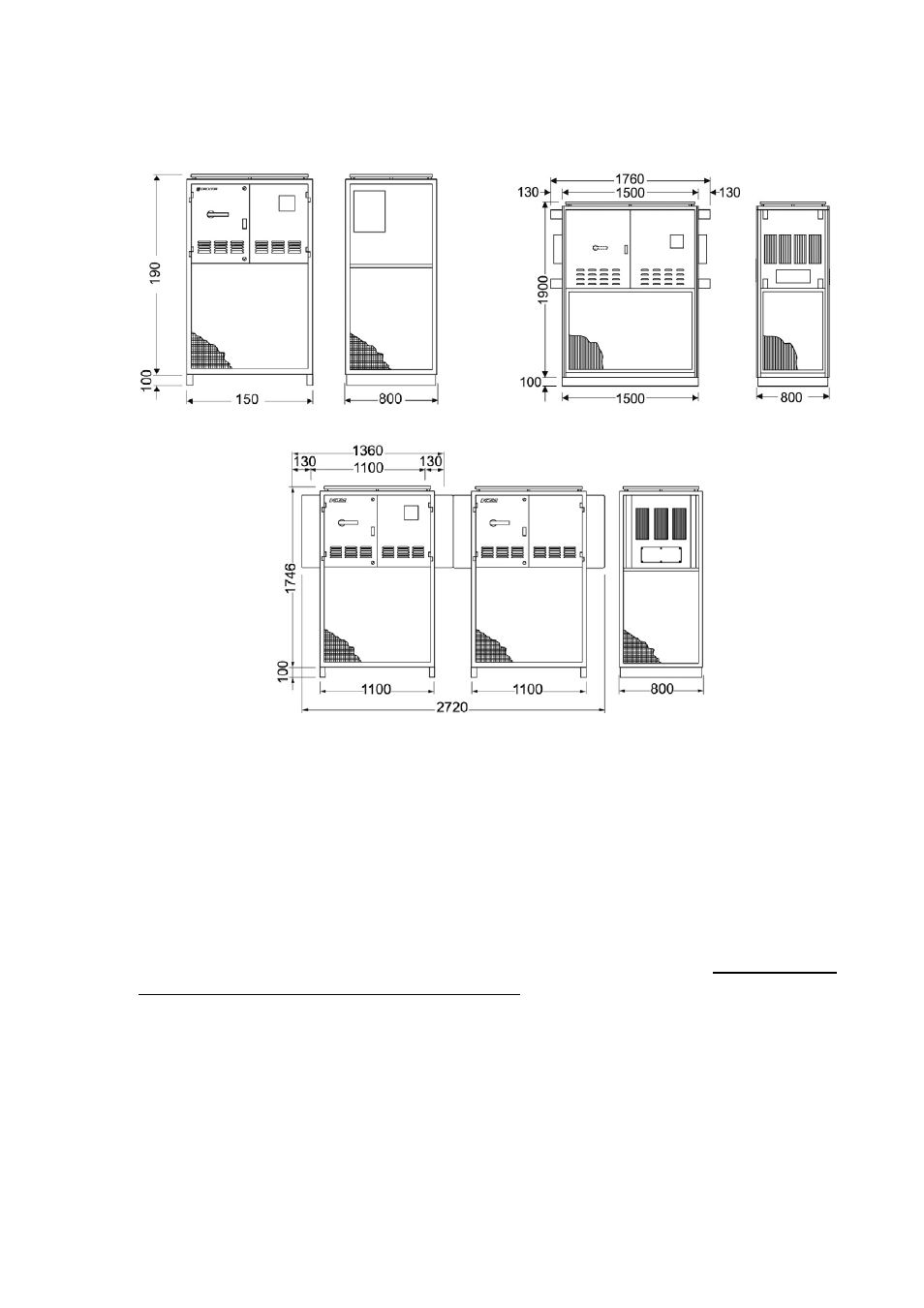

Fig. 3.- Cabinet for FAR-Q6 filters Fig. 4.- Cabinet for FAR-Q8 type filters
Fig. 5.- Cabinet for FAR-Q12 type filters
4.- INSTRUCTIONS FOR INSTALLING THE FAR-Q FILTERS
4.1.- Initial checks (before applying voltage)
For the FAR-Q hybrid filters to operate properly the following general installation
conditions must be followed:
• The equipment's ventilation conditions must be examined leaving minimum
distances between the sides and bottom of the cabinet and walls ensuring that air
can circulate properly.
• FAR-Q equipment must not be mounted near to heat sources. The maximum
ambient temperature must not exceed 40 ºC. Assemble ventilation over 35 ºC. In
particular FAR equipment must not be installed in direct sunlight.
• FAR-Q equipment must not be mounted in the same line as any other active filter.
• Check that the equipment's rated voltage stated on the technical features board
matches the rated voltage between phases in the system to which ot will be
connected.
• Check that the equipment setting (step and currents) match the installation's
requirements.
4.2.- Revision of external connections (before applying voltage)
