2. Description
The enclosure of the inputCUE is a standard enclosure which allows simple installation into a
switchboard on a DIN rail. Inputs are connected via (8) terminals with (1) common terminal. Standard
CUEwire is connected via 4-pin terminal and it includes power supply 24 VDC and RS-485 data.
The address DIP switch sets address of the inputCUE in the range 0 to 255.
Data indication LED indicates data activity on the CUEwire. This activity is indicated if some input is
switch OFF. This feature allows test all inputs without connection to a control unit.
ON
1 7 6 5 4 3 2 8
inputCUE
ADDRESS
DATA
CUEwire
A + G B
5
INPUTS
1 2 3 4 6 7 8 C

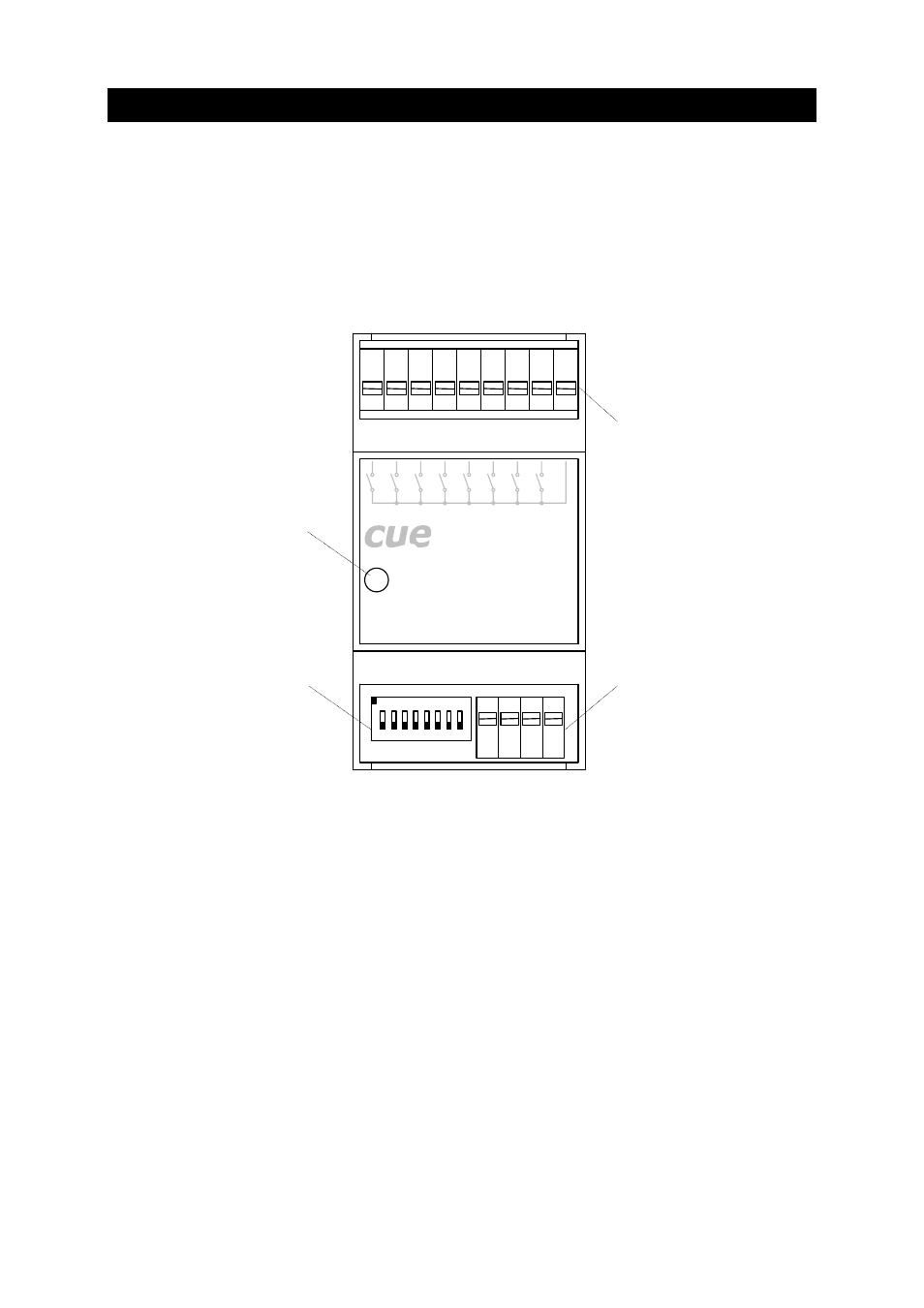

Address DIP switch (4) CUEwire terminals
Data indication LED
(8) input terminals
(1) common terminal
