ET1100C2 Series
Industrial 10/100Base-TX Ethernet plus CVBS Over Coax Converter
3 V1.3
Interface
Ethernet Port:
a) Ethernet port RJ45:

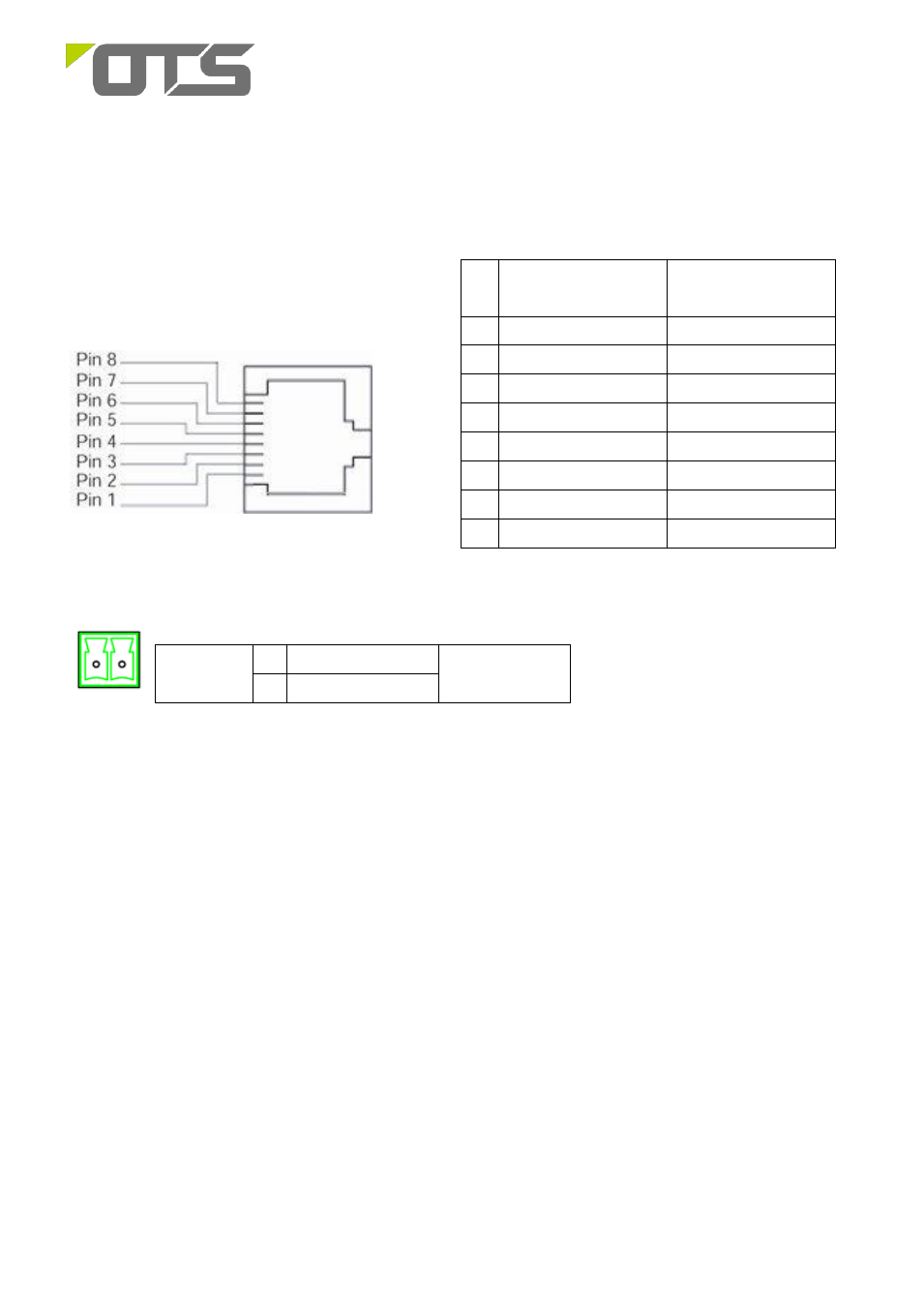

10/100M Ethernet port pin sequence diagram:
Pin MDI Signal Definition
MDIX Signal
Definition
1 TD+ RD +
2 TD- RD-
3 RD + TD+
4 NC NC
5 NC NC
6 RD- TD-
7 NC NC
8 NC NC
Power Connection
12VDC
- GND
Terminal Block
+ 12V
- +
