Tools and Materials Needed For Installation
You will need a drill with a 1/8” bit to install sheet metal screws into connector pipe. A 5/16” socket/wrench or screw driver to install
pedestal trim, room air defl ector, and blower assembly described below. A 1/2” socket/wrench to install fl ue collar. A non-combustible
fl oor protector as specifi ed in this manual. All chimney and chimney connector components required for your particular chimney
installation. For mobile homes, see page 13.
Th
e stove is attached to the shipping pedestal with two bolts under the pedestal trim.
Assembly
Flue Collar Assembly:
1. Mount the fl ue collar to the top of the unit as shown using the (3) 5/16-18 x 1-1/2 bolts, (3) washers, and (3) weld
tabs provided in the parts box.
Room Air Defl ector Assembly:
1. Locate the Room Air Defl ector. Using the three(3) 1/2 Tek Screws provided, mount the defl ector to the unit as
shown in the diagram.
Firebrick Confi guration:
1. Replace the Firebrick as shown in the illustration below.

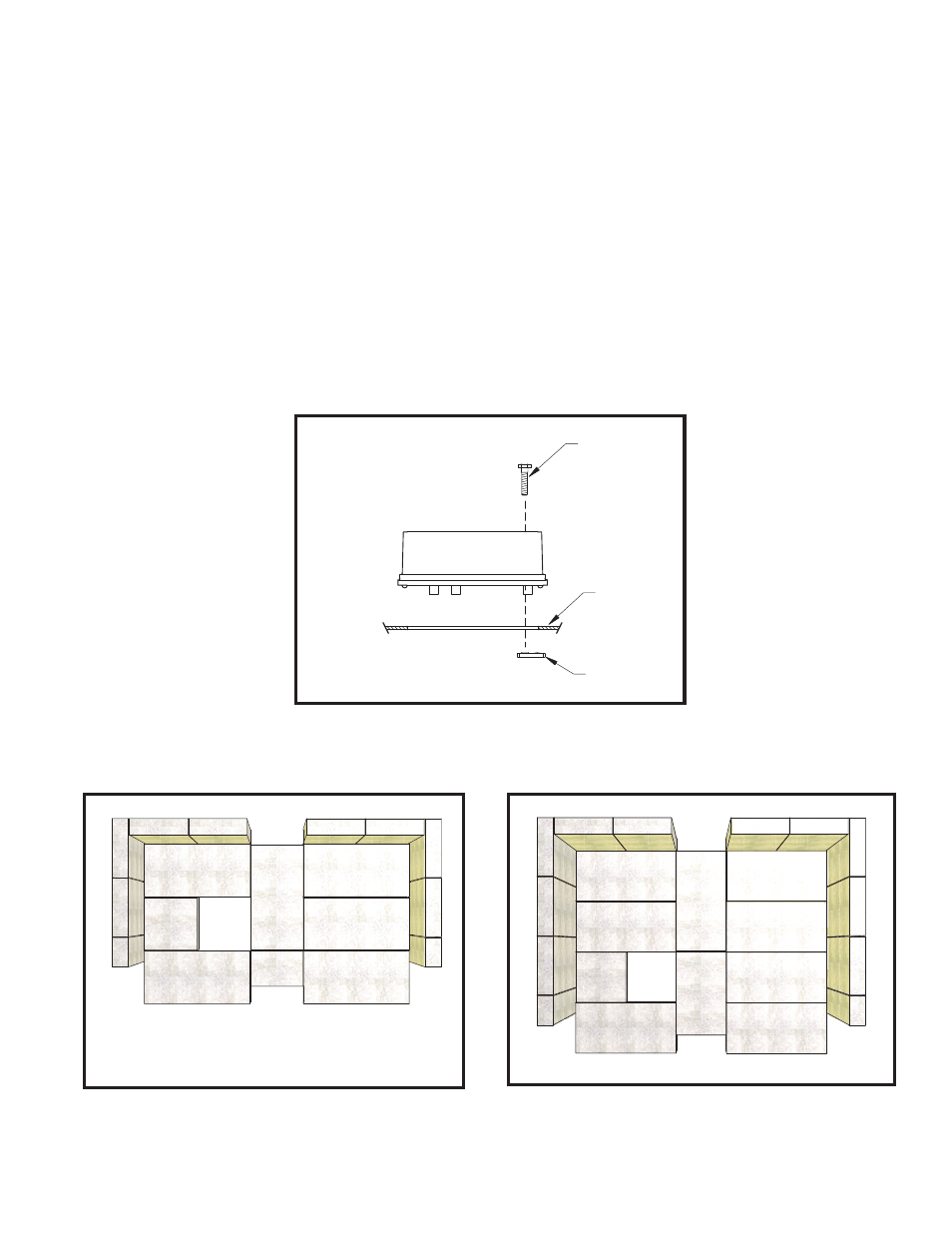

Side view of fl ue collar
mount to heater top
Brick Confi guration
HEATER
TOP
WELD
TAB
5/16-18 x 1-1/2
BOLT
2000
2500
