CLEARANCES TO COMBUSTIBLES
It is of utmost importance that the clearances to combustible materials be strictly adhered to during installation

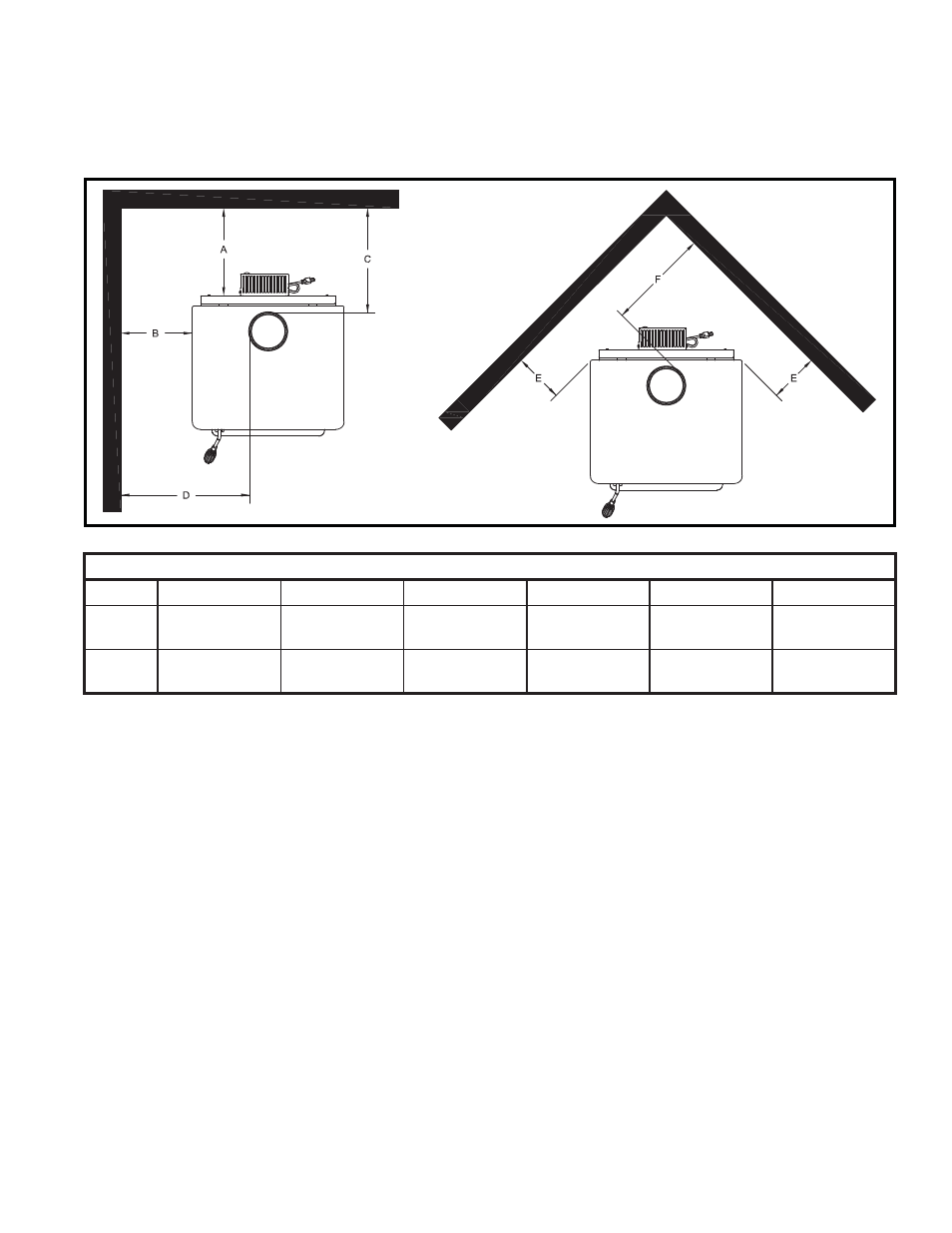

of the stove. Refer to the tables below :
• Floor to ceiling height must be at least 7’ (2.13m) in all cases.
• Do not place any combustible material within 4’ (1.2m) of the front of the unit.
• Th
e clearance between the fl ue pipe and a wall are valid only for vertical walls and for vertical fl ue pipe.
• Th
e chimney connector must not pass through an attic or roof space, closet or similar concealed space, a
fl oor, or a ceiling.
• For Canadian installations, where passage through a wall, or partition of combustible construction is desired,
the installation must conform to CAN/CSA-B365.
• A fl ue pipe crossing a combustible wall must have a minimum clearance of 18” (457.2mm).
• To reduce fl ue clearances from combustible materials, contact your local safety department.
Single Wall Pipe (Double Wall Pipe)
Model
A
B
C
D
E
F
2000
20(14)
(508mm(356mm))
22(20)
(559mm(508mm))
22.5(16.5)
(572mm(419mm))
32(30)
(813mm(762mm))
12(11)
(305mm(279mm))
22(21)
(559mm(533mm))
2500
12
(305mm)
20
(508mm)
16
(406mm)
30
(762mm)
10.5
(267mm)
20
(508mm)
