Appendix_____________________________
Panel Mounting
The ADP-1154 display monitor is designed to be panel-mounted as shown in Figure A. Just carefully
place the unit through the hole and tighten the given 8 screws from the rear to secure the mounting.

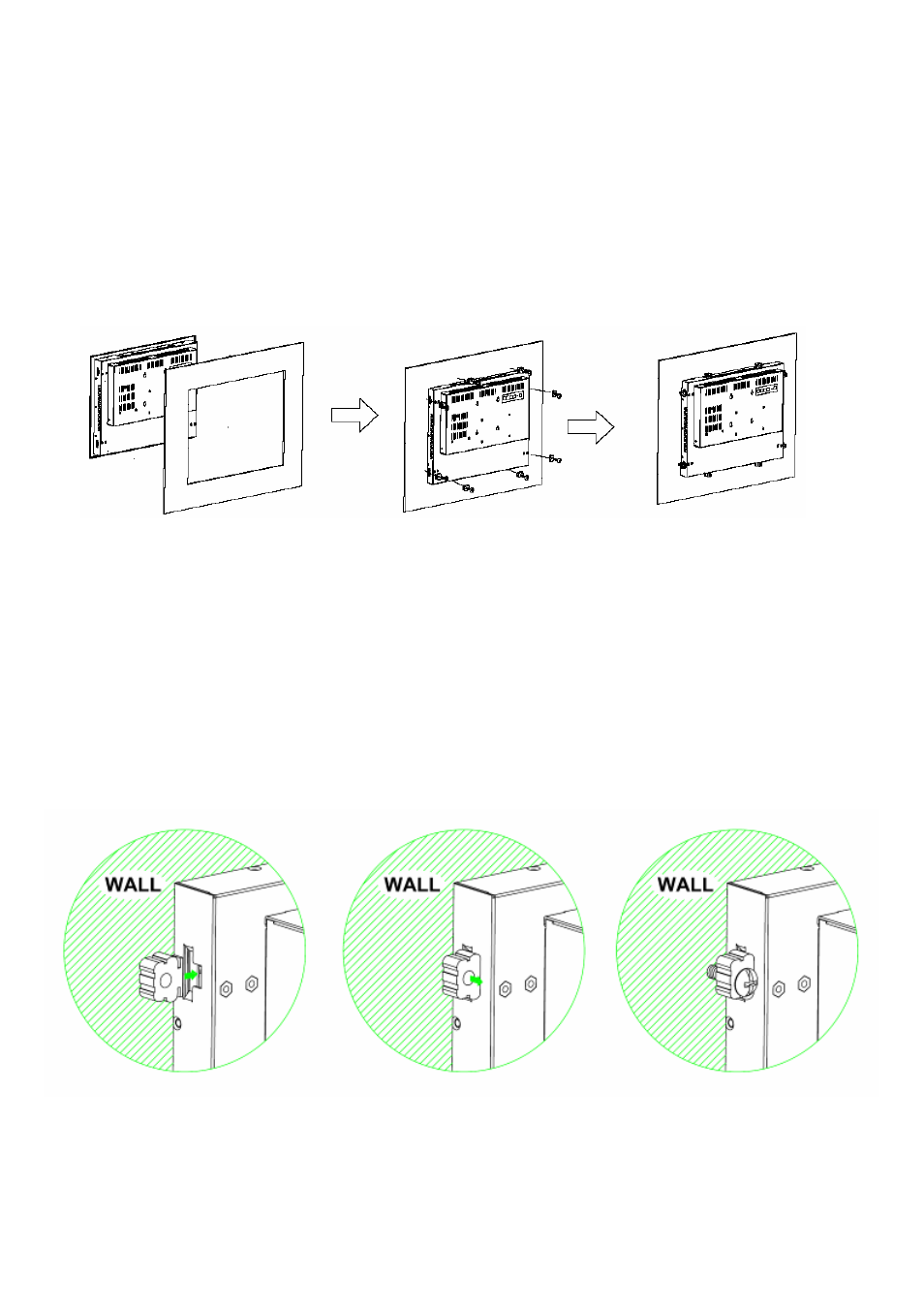

Figure A: Panelmounting of the ADP1154
How to Mount
1. Just insert the bracket into the hole 2. Slightly push the bracket back 3. And screw it tight.
as the arrow shows.
