Page 16 Baby Lock Tiara II Instruction Manual
Changing the Hopping Feet
Your machine comes with two hopping feet: a ruler foot
and an open-toe foot. Use the ruler foot for ruler work and
everyday quilting, and the open-toe foot when you need
greater stitch visibility (such as micro quilting).
1. Remove the foot that is on the mount by using the
2.5mm Allen wrench to loosen the mounting screw far
enough that you can slide the foot off of the mount.
2. Slide the desired foot onto the mount (figure 8). Note
that the opening on the side of the foot is lined up with
the screw hole. Push the foot up as far as it will go.
3. Ensure the middle of the foot opening is centered
with the needle when the foot is fully tightened with
the 2.5mm Allen wrench. If it isn’t properly centered,
loosen the lock nut; center the foot with the needle;
hold the foot in position; and firmly tighten the lock
nut (Figure 9).

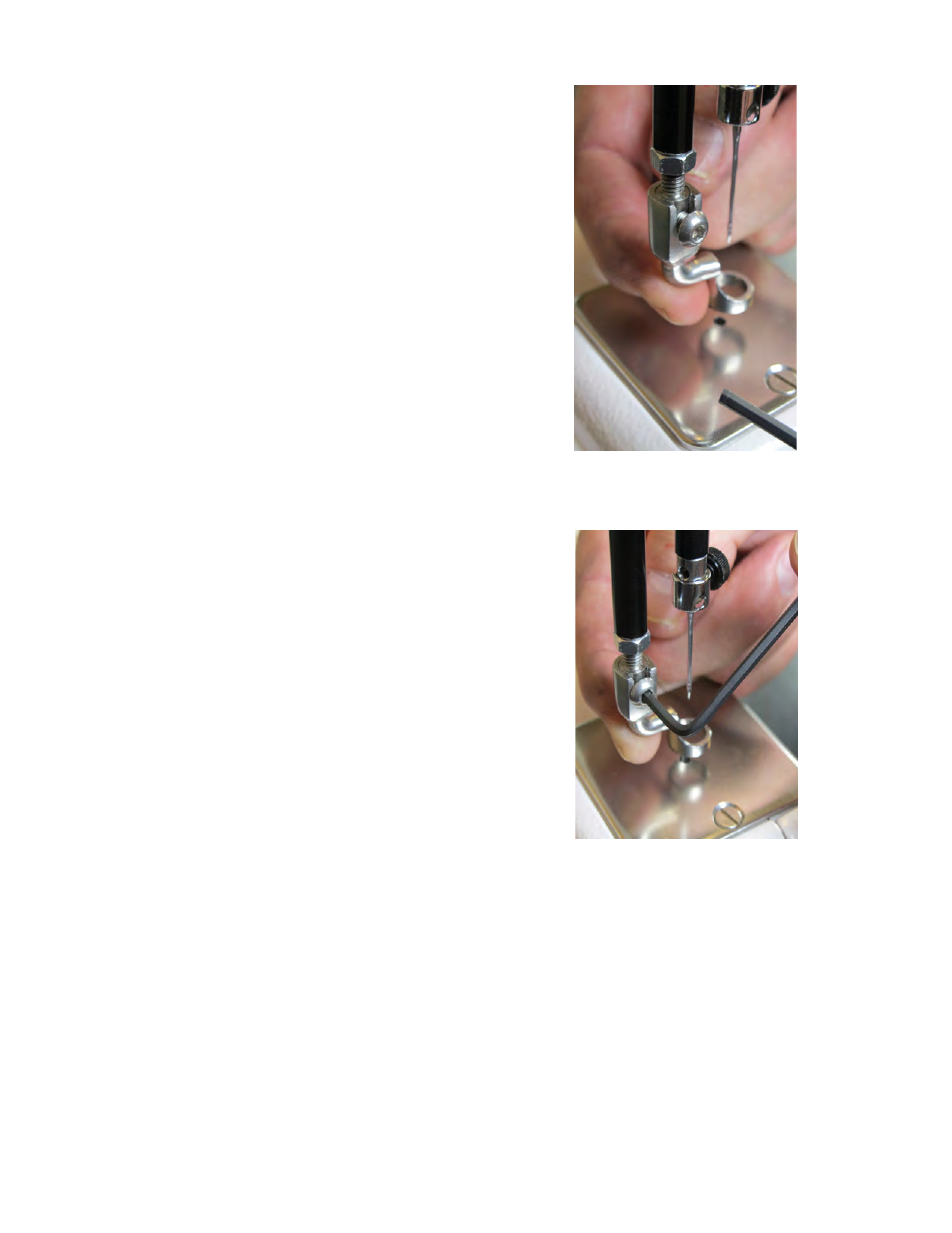

Figure 8
Figure 9
