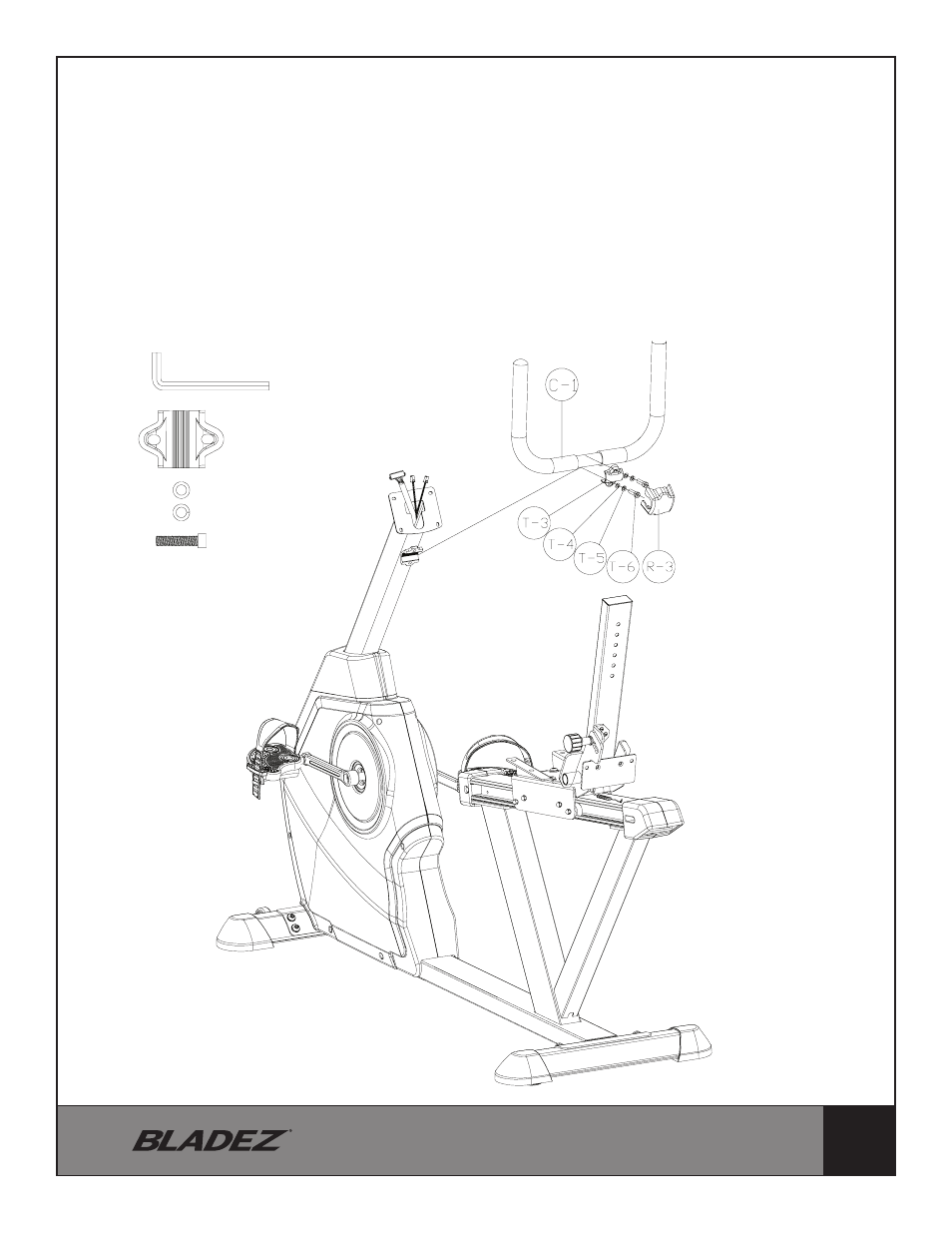

STEP 4
1. ) Place the Sliding Beam (57) into the Seat Post (67), secure it with Quick Release Knob
(62).
2. ) Place the Lower hand pulse cable (56) through the rear hole of the Sliding Beam (57).
Insert the plug of the Lower hand pulse cable (56) into the back hole of the Seat Post
(67).
3. ) Attach the sliding beam (57) onto the Seat Tube (78) and secure it with Connecting
Plate (53), 9×M8 Allen bot (7), 9×M8 Spring Washer (6) and 9×M8 Flat washer (55).
