6

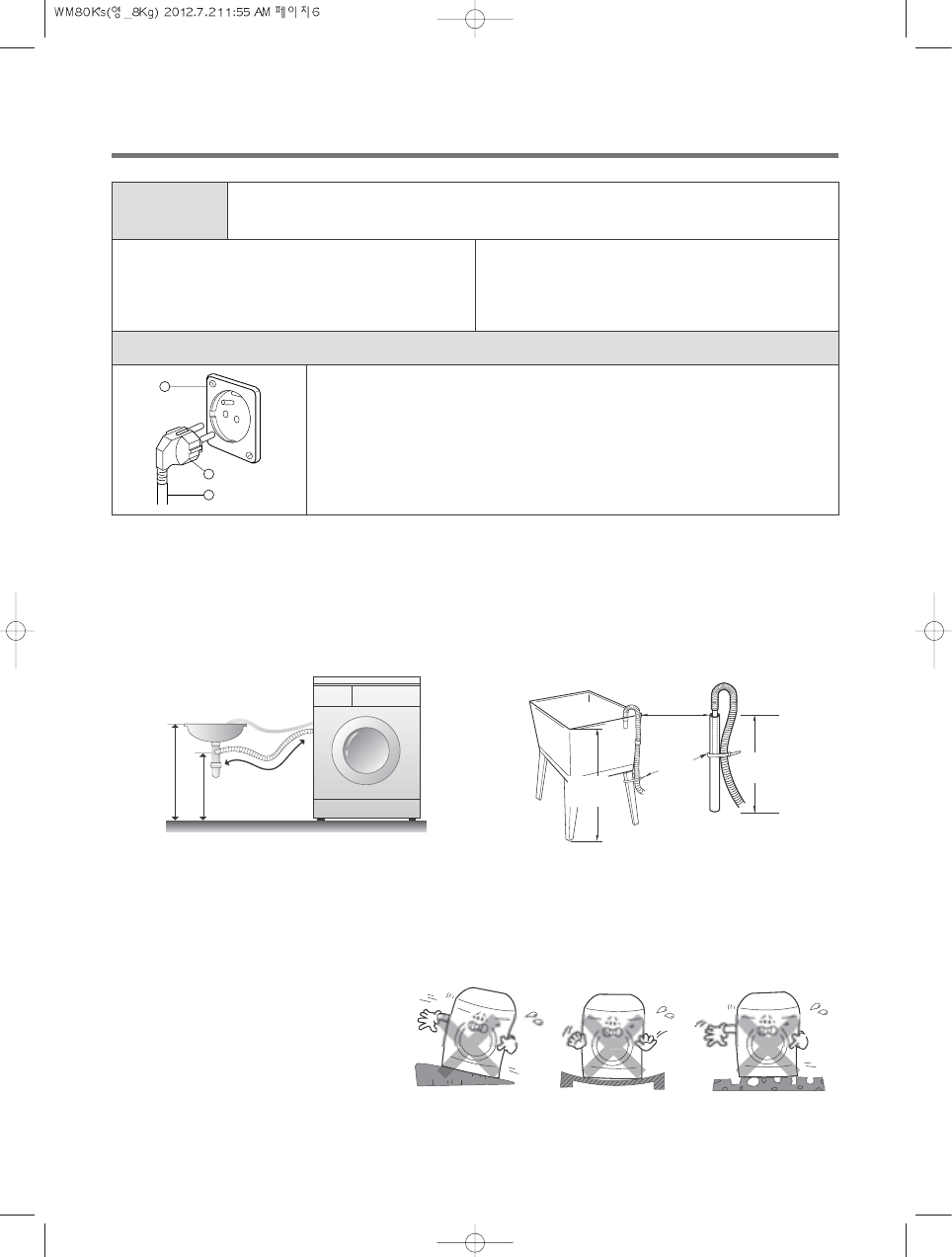

ELECTRICAL REQUIREMENTS
• Electrical earth is required on this washer.
• If it does not fit the outlet, have a proper outlet
installed by a qualified electrician.
• Don’t earth to a gas pipe.
• Don’t change the power supply cord plug.
• Check with a qualified electrician if you are not
sure the washer is properly earthed.
WARNING
Recommended earthing method
Electrical shock hazard : Failure to follow these instructions could result in
death or serious injury.
For your personal safety, this washer must be earthed.
This washer is equipped with a power supply cord ‘A’ having a earthing plug ‘B’.
To minimize possible shock hazard, the cord must be plugged into a mating
earthing-type wall receptacle ‘C’. If a mating wall receptacle is not available,
it is the personal responsibility and obligation of the customer to have the
proper earthed wall receptacle installed by a qualified electrician.
C
B
A
Drain system
• Never forget to install drain hose before operating your washer.
• Open the packing box, and there is a drain hose inside the drum.
• Connect the drain hose to the drain outlet at the back side of the washer.
• Top of laundry tub must be at least 60cm high and no higher than 100cm from bottom of washer.
• When installing the drain hose to tub(sink), secure it tightly with a string.
• Proper securing of the drain hose will protect the floor from damage due to water leakage.
• When the drain hose is too long, do not force it back into the washer.
This will cause abnormal noise.
Level adjustment
1 If the washer is installed on an
unsuitable floor, it could make
considerable noise, vibrate and
cause a malfunction.
Laundry tub
max. 100 cm
min. 60 cm
ca. 105 cm
Tie
strap
max. 100 cm
min. 60cm
max. 100 cm
min. 60cm
