► Bank Interleaving
Interleaving allows banks of SDRAM to alternate their refresh and access cycles. One bank
will undergo its refresh cycle while another is being accessed. This improves memory perfor-
mance by masking the refresh cycles of each memory bank.
However, bank interleaving only works if the addresses requested consecutively are not in the
same bank.
► Channel Interleaving
Dual channel (Interleaved) mode offers the highest throughput for real world applications. Dual
channel mode is enabled when the installed memory capacities of both DIMM channels are
equal. If different speed DIMMs are used between channels, the slowest memory timing will be
used.

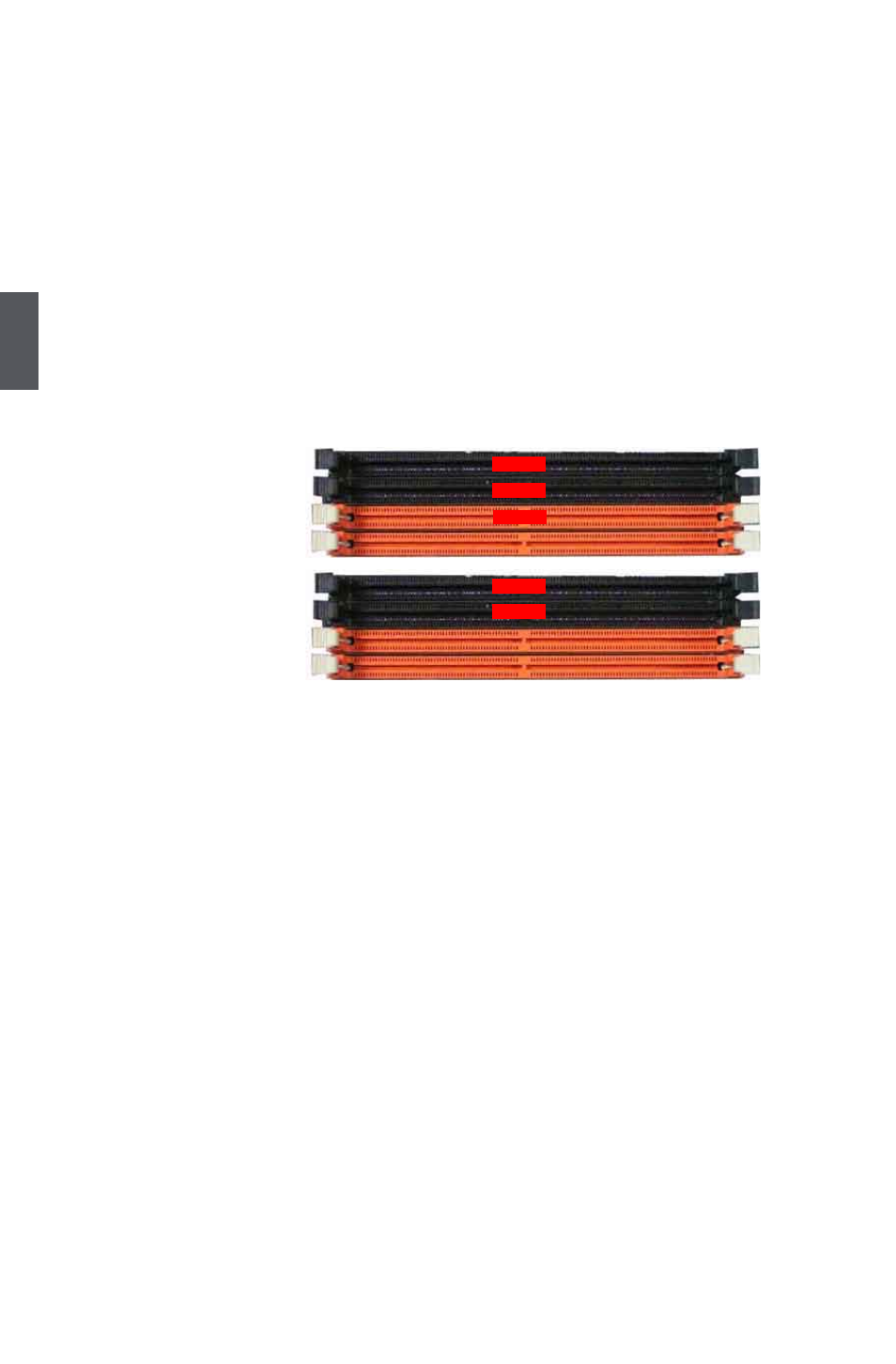

To achieve Dual Channel Interleaving mode, the following conditions must be met:
Matched DIMM configuration in each channel
Same Density (128MB, 256MB, 512MB, etc.)
Matched in both Channel 0 and Channel 1 memory channels
► Enable Clock to All DIMMs
This setting is to control EMI.
When disabled, the system will turn off clock on the empty DIMM slots and to reduce EMI
(Electro-Magnetic Interference).
► MemClk Tristate C3/ALTVID
Enables the DDR memory clocks to be tristated when alternate VID mode is enabled.
► Memory Hole Remapping
This item is used to enable/disable memory remapping around memory hole.
PCI doesn't actually care much which addresses are used, but by convention the PC platform
puts them at the top of the 32-bit address space. For many years it wasn't possible or practical
to put that much RAM into a PC. But now it is, so it's up to the memory controller and host
bridge to figure out what to do. Many systems cause that high RAM to simply be ignored,
resulting in the loss of effective RAM. More complex systems will take the RAM that would
occupy that 3.5-4GB address space and re-map it into the 4.0-4.5 address space. The RAM
doesn't care because it's just an array of storage cells, it's up to the memory controller to as-
sociate addresses with those storage cells.
Of course, that only works if you're using a 64-bit (or 32bit physical address extension (PAE)
enabled) OS that can deal with physical addresses larger than 32 bits.
Once this option is enabled, the BIOS can see 4096MB of memory.
► DCT Unganged Mode
DCT stands for DRAM Controller.
1GB
1GB
512MB
1GB
512MB
Channel 0 DIMM1
Channel 1 DIMM2
Channel 0 DIMM3
Channel 1 DIMM4
Channel 0 DIMM1
Channel 1 DIMM2
Channel 0 DIMM3
Channel 1 DIMM4
