Model 10458-701 and 10458-801 VoIP & VoIP WiFi Electronic Paging Modules

Page 21 of 24

f:\standard ioms - current release\42004 instr. manuals\42004-464b.doc
07/14

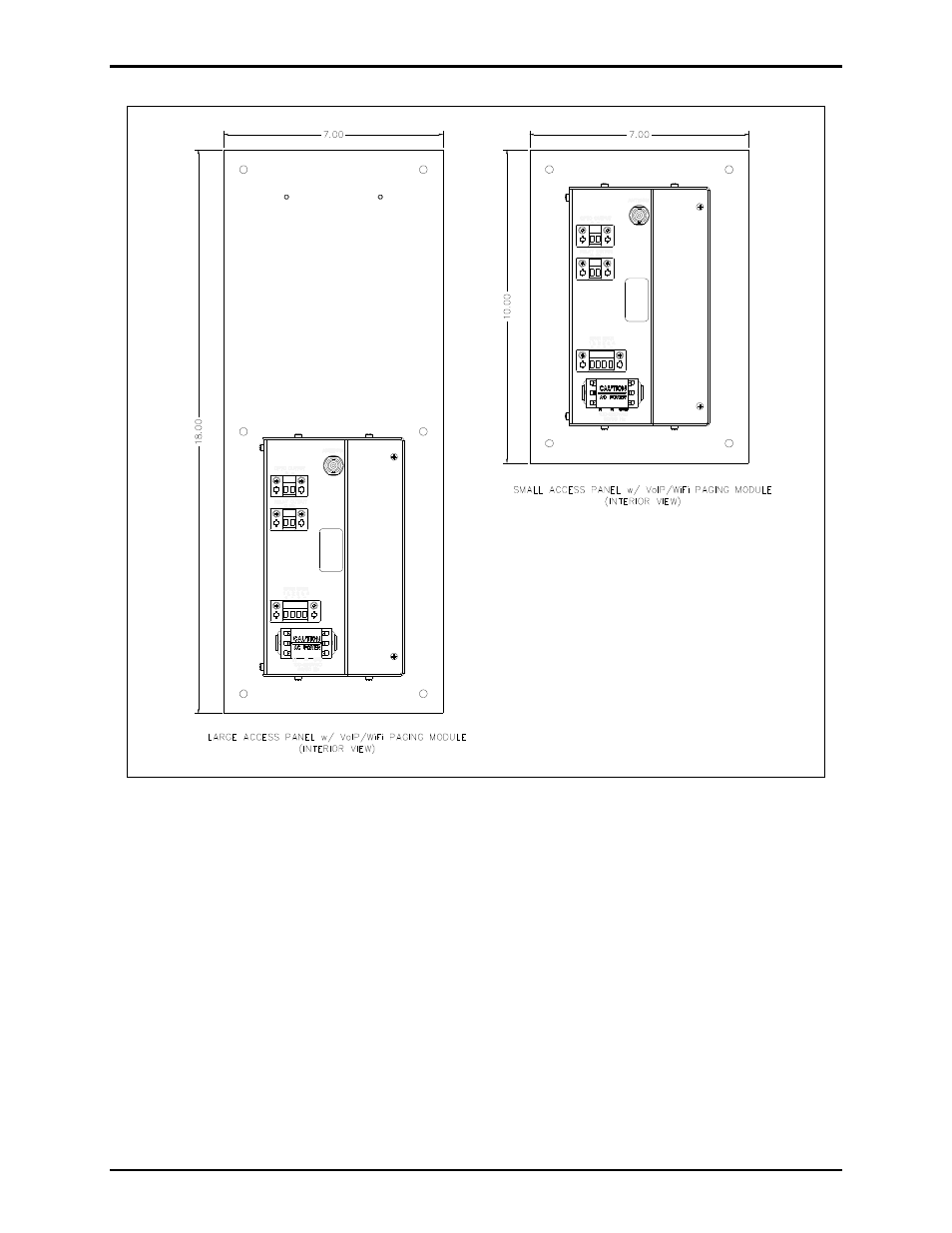

Figure 7. Unit Component Identification

Attach the remainder of the Paging Module to the mounting plate/access panel assembly with the four #6-
32 screws. Note the orientation of the module.

Attach the Access Panel/Paging Module to the Model 234 Stanchion.
