FWA7404 Series
User’s Manual
5
VGA
Pin header on board
Power
DC-In +12V, 40W
Dimensions
156 (W) x 225 (D) x 36 (H) mm
Chapter 3
Hardware Configuration

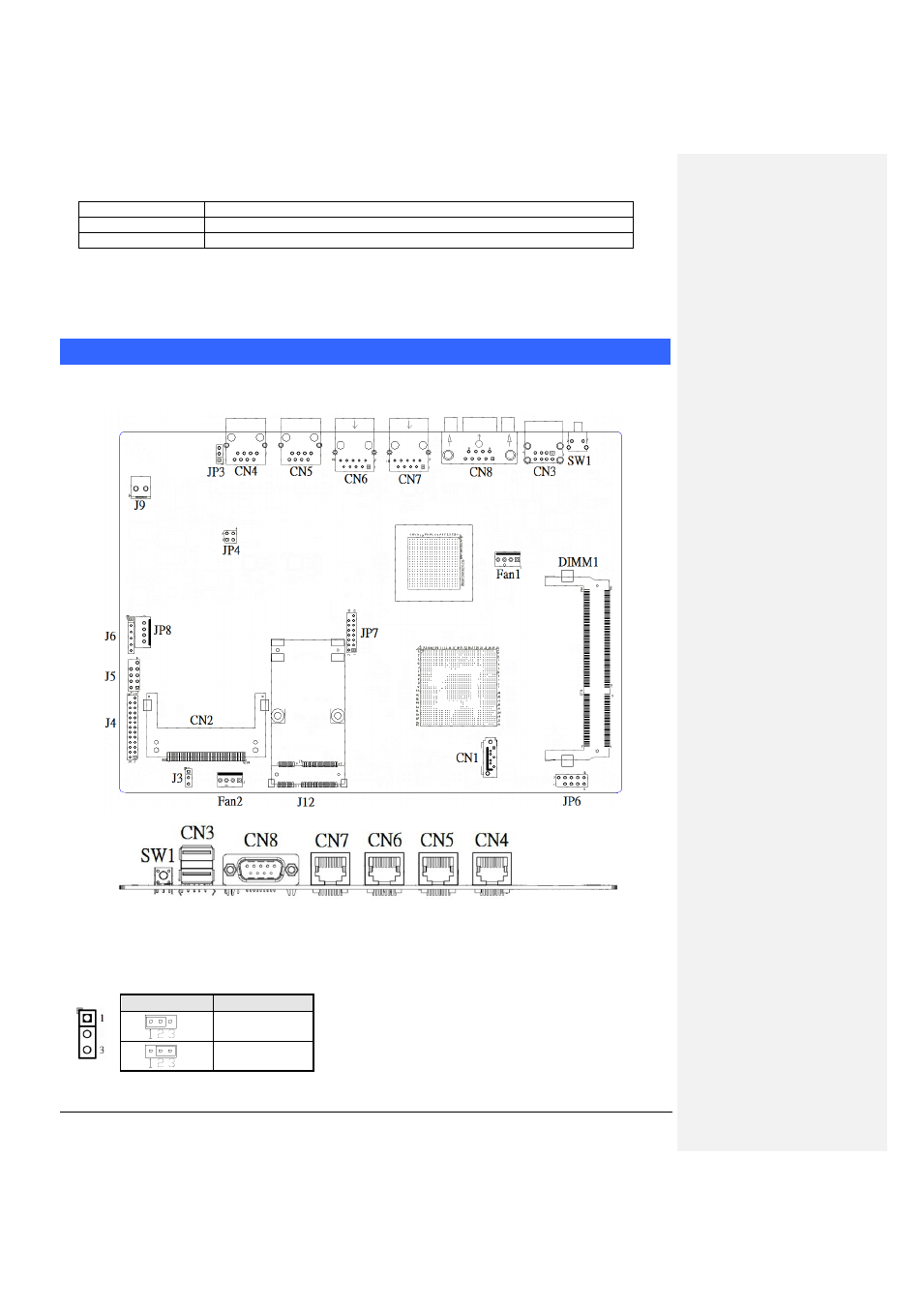

CPU board (IB831) layout
Jumper Setting
J3: Clear CMOS Setting
J3
Setting
Normal
Clear CMOS
